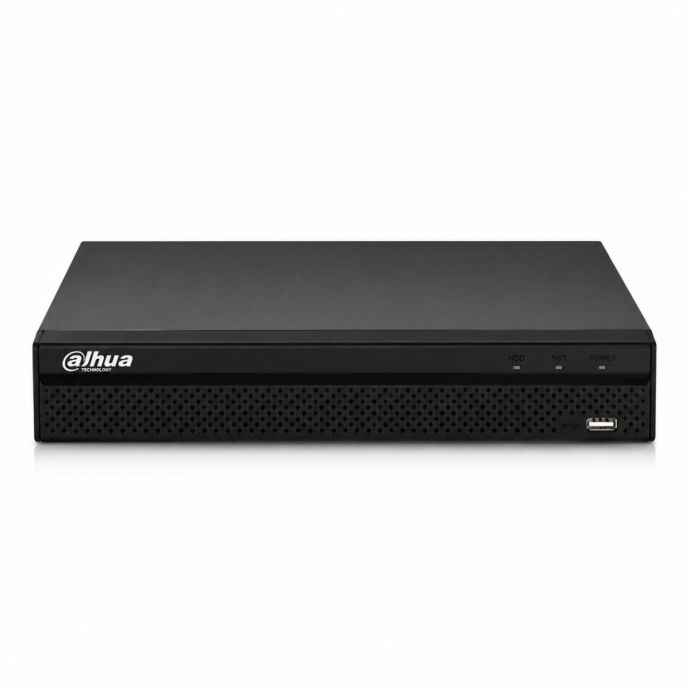

Dahua 16-Channel IP NVR 12MP 72Mbps Bandwidth with AI

SKU
DAH-NVR2116HS-4KS3
Brands: Dahua
€132.69
Tax included
% Discount for professionals
Dahua
Availability: In stock
5 days

Dahua 16-Channel IP NVR up to 12 MP with SMD Plus

The Dahua NVR2116HS-4KS3 allows you to centralize, record, manage and display video from up to 16 IP security cameras simultaneously. It acts as the core of a high-definition digital video surveillance system, designed for residential properties, shops, offices and small to medium-sized professional installations.

It supports IP cameras with resolutions up to 12 MP and provides up to 144 Mbps incoming and recording bandwidth and 72 Mbps outgoing bandwidth with AI disabled. HDMI output up to 4K, VGA, Gigabit Ethernet and ONVIF compatibility make it easy to integrate with IP cameras in network-based CCTV systems.

Its SMD Plus technology operates on 4 channels through the recorder, applying intelligent secondary filtering to distinguish humans and vehicles while reducing false alarms caused by leaves, rain or changes in lighting conditions. This makes the NVR particularly suitable for installers who need to manage up to 16 cameras with more accurate event detection without moving to a higher-end recorder.

It features 1 SATA bay for a hard drive of up to 20 TB, allowing storage capacity to be adapted according to the number of cameras, resolution and recording settings. It is suitable for both new installations and compatible CCTV IP system upgrades or expansions; it is not a replacement part. Storage can be selected separately from our range of hard drives for video recorders.

Reference: DAH-NVR2116HS-4KS3

-
+

Extended Information about Dahua 16-Channel IP NVR 12MP 72Mbps Bandwidth AI Recorder

Practical Applications of the Dahua NVR2116HS-4KS3

Example 1. Centralized IP surveillance for shops, offices and small businesses:

In a retail store, office or small commercial building, the Dahua NVR2116HS-4KS3 can centralize video from up to 16 IP cameras on the same network. Cameras with different resolutions can be combined according to the importance of each monitored area, with support for models up to 12 MP. SMD Plus can be applied on four recorder channels to prioritize events involving humans and vehicles and reduce unnecessary alerts.

Example 2. Residential or corporate surveillance with high-capacity storage:

In a large home, warehouse or small corporate facility, the NVR can be equipped with one SATA hard drive of up to 20 TB to provide extended recording history. The installer can adjust resolution, compression and recording modes according to retention requirements. HDMI 4K and VGA outputs provide local monitoring, while network connectivity enables remote supervision and playback.

Package Contents of the DHI-NVR2116HS-4KS3

  • 1 × Dahua DHI-NVR2116HS-4KS3 Network Video Recorder.

Technical specifications of the DHI-NVR2116HS-4KS3

Manufacturer Dahua
Model DHI-NVR2116HS-4KS3
Series NVR2000-4KS3 Lite Series
Product Type 16-channel Compact 1U 1HDD Lite Network Video Recorder
Main Processor Industrial-grade processor
Operating System Embedded Linux
Operating Interface Web, Local GUI
IP Camera Channels 16 channels
Maximum Camera Resolution Up to 12 MP
Supported Resolutions 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960p, D1, CIF, QCIF
Bandwidth with AI Disabled 144 Mbps incoming / 144 Mbps recording / 72 Mbps outgoing
Bandwidth with AI Enabled 72 Mbps incoming / 72 Mbps recording / 36 Mbps outgoing
AI by Recorder SMD
AI by Camera Perimeter protection and SMD
SMD Plus by Recorder 4 channels; secondary filtering for humans and motor vehicles
SMD Plus by Camera All channels, up to 8 targets/s
Perimeter Protection by Camera All channels, up to 4 targets/s
Maximum Decoding Capacity with AI Disabled 1 × 12 MP@30 fps; 1 × 8 MP@30 fps; 2 × 6 MP@30 fps; 2 × 5 MP@30 fps; 3 × 4 MP@30 fps; 6 × 1080p@30 fps
Maximum Decoding Capacity with AI Enabled 1 × 8 MP@30 fps; 1 × 6 MP@30 fps; 1 × 5 MP@30 fps; 2 × 4 MP@30 fps; 4 × 1080p@30 fps
Video Compression Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
Audio Compression G.711a, G.711u, PCM, G726
HDMI Output 1
HDMI Resolutions 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA Output 1
VGA Resolutions 1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen Display 1 / 4 / 8 / 9 / 16
Third-party Camera Access ONVIF
ONVIF Compatibility ONVIF 23.12 Profiles T, S and G
Interoperability ONVIF, CGI, SDK
Network Protocols HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, IP Filter, DDNS, IP Search, P2P, Auto Registration
Mobile Access iOS, Android
Supported Browsers Chrome, IE, Safari, Edge, Firefox
Multi-channel Playback Up to 16 channels
Recording Modes General, motion detection, intelligent, alarm
Playback Modes Instant playback, general playback, event playback, tag playback, smart playback
Backup Methods USB device and network
General Alarms Motion detection, camera external alarm, PIR alarm
Intelligent Alarms Perimeter protection, SMD Plus
Alarm Linkage Recording, snapshot, buzzer, log, preset, email, tour
Audio Input 1 × RCA
Audio Output 1 × RCA
Disk Interface 1 × SATA
Maximum HDD Capacity Up to 20 TB
USB Ports 2 × USB 2.0: 1 front and 1 rear
Network Port 1 × RJ45 10/100/1000 Mbps Ethernet port
Power Supply 12 VDC, 1.5 A
Power Consumption <10 W without HDD
Net Weight 0.85 kg
Gross Weight 1.39 kg
Product Dimensions 260.0 × 232.5 × 47.6 mm
Packaging Dimensions 334.0 × 89.0 × 314.0 mm
Operating Temperature -10 °C to +55 °C
Storage Temperature -20 °C to +60 °C
Operating Humidity 10%–93% RH, non-condensing
Certifications CE-LVD and CE-EMC
More Information
More Information
EAN 6923172507853
Hight 0.310
Length 0.090
Width 0.330
Event notifier No
No. CCTV Recorder Inputs 16 IP
Audio in ports 1
Usar stock disponible No
Product Brand Dahua
Supported IP Channels 16
Maximum Camera Resolution 12 Mpx
Number of Supported Hard Drives 1
Maximum HDD Capacity 20 TB
Intelligent Analytics Motion detection
Reviews
Write Your Own Review
You're reviewing:Dahua 16-Channel IP NVR 12MP 72Mbps Bandwidth with AI
Your Rating
Product Attachment
File Label Size Download
pdf Ficha Técnica Grabador NVR 16 Canales IP 12Mpx Ancho de Banda 72Mbps IA de Dahua 2.3 MB Download
