Ajax 8-Channel 8MP NVR, 80 Mbps Bandwidth, AI Motion Detection, White

SKU
AJ-NVR108-HDC-W
Brands: AJAX
€324.98
Tax included
Availability: In stock
1 to 7 days

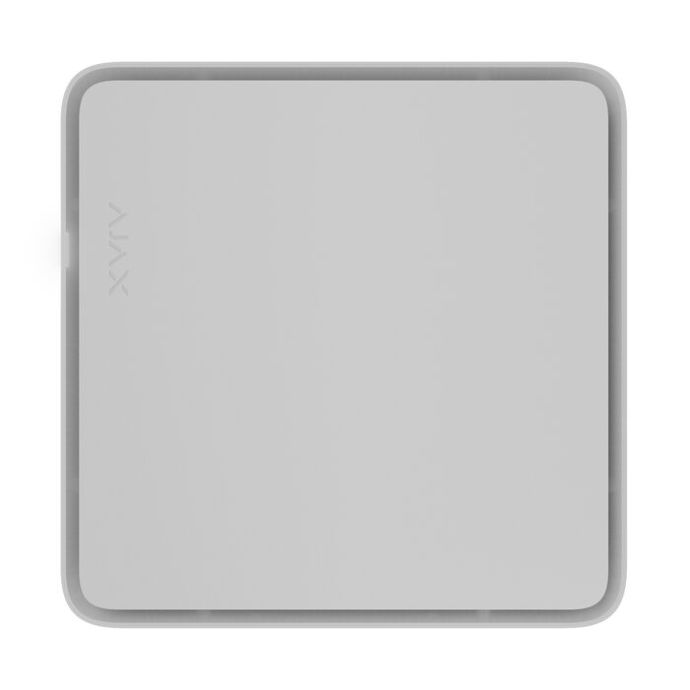

Ajax NVR HDC 8-Channel 8 MP Recorder in White with Full HD HDMI

The Ajax AJ-NVR108-HDC-W 8-channel NVR recorder is a professional solution for connecting, viewing and storing video from up to 8 IP cameras within an Ajax or compatible CCTV system. It is designed for reliable local recording, remote management and direct monitoring through its Full HD HDMI output.

This NVR works with IP cameras via ONVIF Profile S and RTSP, and integrates with Ajax apps for live view, archive access and event review. It is not a spare part, but a recorder for new video surveillance installations or system expansions, especially useful for homes, offices, shops and small business projects.

The unit records video at up to 8 MP / 4K, helping preserve small image details, and uses H.265/H.264 compression to reduce video storage size while maintaining image quality. Its incoming bandwidth of up to 80 Mbps makes it suitable for well-planned multi-camera high-definition installations.

Overall, the AJ-NVR108-HDC-W provides a compact and secure base for Ajax video surveillance systems, with Full HD HDMI, dual USB ports, RJ45 Ethernet and support for a SATA hard drive of up to 16 TB. It can be combined with other NVR recorders (IP and WiFi) or compatible IP and WiFi cameras.

Reference: AJ-NVR108-HDC-W

-
+

Extended information about Ajax 8-Channel 8 MP NVR Recorder, 80 Mbps Bandwidth, AI Motion Detection, White

Practical applications of the Ajax 8-Channel 8 MP NVR Recorder, 80 Mbps Bandwidth, AI Motion Detection, White

Example 1. local monitoring in a shop or office:

In a retail store, professional office or small business, the Ajax AJ-NVR108-HDC-W NVR recorder centralizes up to 8 IP cameras and allows live viewing directly on a monitor via HDMI. Its Full HD HDMI output is useful when on-site staff need local supervision without relying only on a mobile device, while Ajax apps allow remote access to events and recordings.

Example 2. IP installation with efficient local storage:

In a home or small business using high-resolution cameras, this Ajax NVR HDC records images at up to 8 MP and uses H.265/H.264 compression to optimize disk space. It is especially suitable for installers who need an IP solution compatible with ONVIF/RTSP, configurable motion detection and local storage of up to 16 TB.

Package contents of the Ajax 8-Channel 8 MP NVR Recorder, 80 Mbps Bandwidth, AI Motion Detection, White

  • Ajax NVR HDC recorder
  • Terminal adapter
  • Power cable
  • Ethernet cable
  • Installation kit
  • Quick start guide
  • Hard drive not included
  • HDMI cable not included

Technical specifications Ajax 8-Channel 8 MP NVR Recorder, 80 Mbps Bandwidth, AI Motion Detection, White

Feature Detail
Brand Ajax
SKU AJ-NVR108-HDC-W
Product type IP NVR recorder with HDMI output
Video channels Up to 8 channels
Recording resolution Up to 8 MP / 4K
Video output Full HD HDMI
Compatible cameras Ajax IP cameras and third-party IP cameras
Protocols RTSP, ONVIF Profile S
Video compression H.265 / H.264
Incoming bandwidth Up to 80 Mbps
Outgoing bandwidth Up to 40 Mbps
Storage 1 SATA 3.5" hard drive up to 16 TB
Hard drive included No
Detection Built-in motion detection
Ajax features JetSparrow, visual alarm verification, Ajax app access
Local management Video wall, playback and archive access via HDMI
Remote management Ajax apps
Network RJ45 Ethernet
USB 2 x USB Type-A
HDC main power supply 8-16 V DC up to 4 A without jumper on PSU board; 12.1-16 V DC up to 4 A with jumper
Power consumption Up to 24 W
Installation Indoor
Protection rating IP20
Operating temperature 0 °C to +40 °C
Operating humidity Up to 75%
Dimensions 212 x 212 x 64 mm
Weight 752 g without hard drive
Colour White
Stated compliance NDAA compliant according to Ajax technical datasheet
More Information
EAN 4823114083853
Hight 0.000
Length 0.000
Width 0.000
Event notifier No
No. CCTV Recorder Inputs 8 IP
Usar stock disponible No
Product Brand AJAX
