iLOFT DUOX 3.5" Monitor Embed Fermax OUTLET

SKU
FER5602OUT
Brands: Fermax
Availability: In stock
24/48 Hours
Free shipping
(Iberian Peninsula)
€166.98 Tax included
Fermax

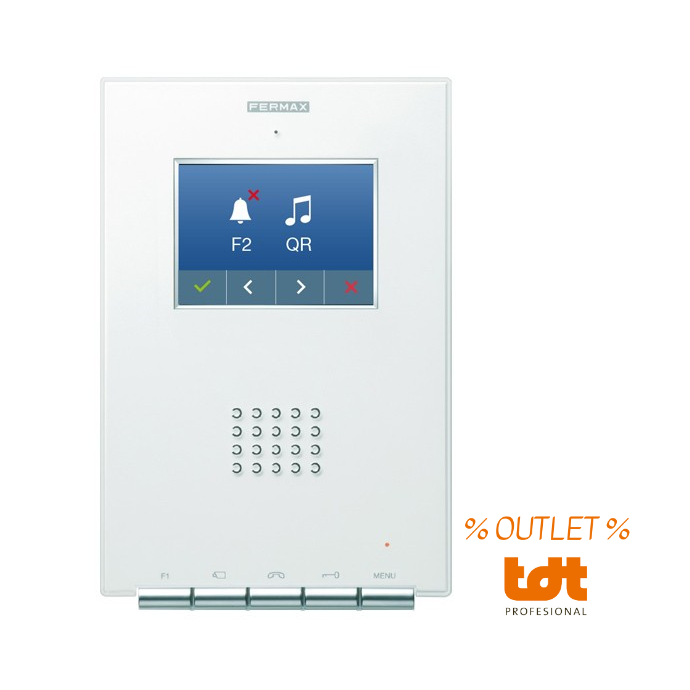

OUTLET: iLOFT DUOX TFT 3.5" Monitor Fermax 5602

ILoft monitor for DUOX video door entry systems, with 3.5" TFT Color screen, hands-free communication and flush mounting. It allows communication with the entrance panel, viewing the visit through the integrated screen and opening the door.

Easy connection through 2 non-polarized wires and comfortable high-performance hands-free communication. Made with high quality materials such as transparent polycarbonate glass that covers its entire surface. Designed for flush mounting, possibility of surface installation as well. Exclusive, minimalist and slimline design in white.

What is TDTprofesional OUTLET?

Our Outlet category is made up of products from our clients' returns, which are in perfect condition and have been tested by our technical department to guarantee their correct operation. The product packaging may show knocks or the product may not be sent in its original packaging. The products in our Outlet include a special discount and have the same guarantee as new products.

OUTLET: Fermax iLOFT DUOX Hands-Free Monitor with 3.5" TFT Color Screen

What technical characteristics does the Fermax iLOFT DUOX 5602 Monitor have?

  • With the monitor at rest, by pressing the self-start button, you have the possibility of self-starting with different plates (if they exist):
  • With plate 0 of the Block corresponding to the monitor.
  • With plate 1 of the Block corresponding to the monitor.
  • With the General Entrance plate with plate number 0.
  • Call extension or Light and bell activator: For direct connection of the call extension or the Light and bell activator in the corresponding terminals.
  • 3.5 "TFT screen.
  • Resolution: 480 (H) x 234 (V) lines.
  • Built-in monitor dimensions: 131 (width) x 197 (height) x 60 (depth) mm
  • Emerges from the wall 14 mm once embedded
  • FERMAX embedding box dimensions: 108 (width) x 158 (height) x 45 (depth) mm.
  • Standard flush mounting box dimensions: 114 (width) x 174 (height) x 50 (depth) mm
  • Monitor surface dimensions: 131 (width) x 197 (height) x 34.3 (depth) mm.
  • Power: 18 Vdc
  • Door opener button and call to concierge.
  • Button to establish communication.
  • Button to end the communication.
  • Call volume regulation
  • Color, brightness and contrast regulation.
  • Door bell: for direct connection of the house call button to the monitor / telephone.
  • Selectable ring tones.
  • Private communication. Conversation secret.
  • Total hands-free operation, once the entrance panel-house channel has been activated, communication is simultaneous.
  • Consumption (± 5%):
    • Without inductive loop:
      • Idle: 25 mA.
      • With audio and video (conversation):
        • Silence: 130 mA
        • Maximum volume: 250 mA
    • With inductive loop:
      • Idle: 25 mA.
      • With audio and video (conversation):
        • Silence: 360 mA
        • Maximum volume: 650 mA
  • Monitor with OSD screen: It incorporates an intuitive menu through graphic icons so that the installer can program the functions of the monitor according to the needs of the installation and also for the user who can access the user settings for customization, that is, the usage profile of your equipment: brightness and contrast, type and volume of melodies, additional functions, activating and deactivating silent mode, etc ...
More Information
EAN8424299056029
SystemDUOX
SERIEiLOFT
ColorWhite
TypeMonitor
Product BrandFermax
