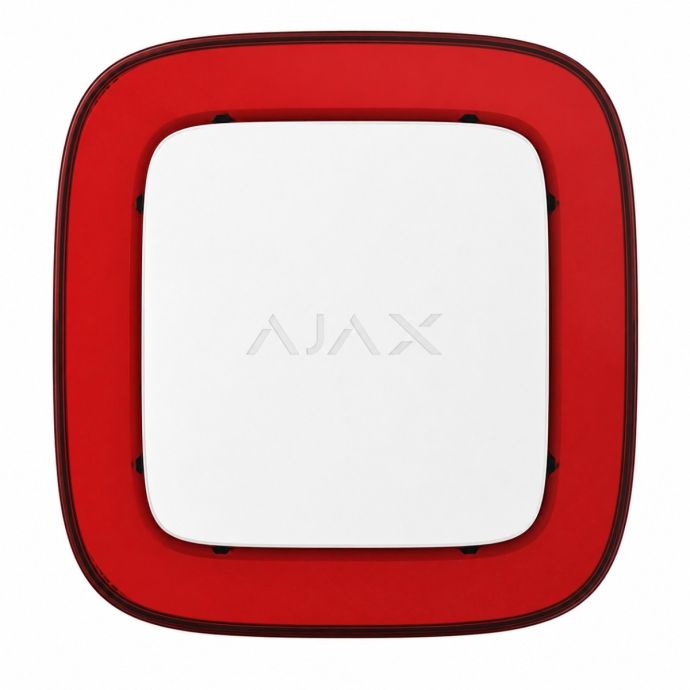

Wireless Addressable EN54 Certified Alarm Indicator in White by Ajax

Wireless Addressable Remote Fire Alarm Indicator Ajax EN54

The Ajax EN54 Indicator Jeweller provides immediate visual signalling when a fire alarm is triggered, especially when the detector generating the alarm is outside the direct line of sight. Its perimeter LED frame emits an intense red light to make the alarm clearly visible, making it a particularly useful addition to professional fire protection systems.

This wireless addressable alarm indicator operates within the Ajax EN54 system and communicates bidirectionally with the control and indicating equipment via Jeweller technology. It provides a communication range of up to 1,700 metres in open space and activates within 3 seconds after the linked fire detector triggers an alarm. The LED indication pattern can also be configured as continuous pulse or bistable.

Installation is designed to save time on site: the device is added to the system by scanning its QR code, configured and tested through Ajax apps, and mounted on a wall or ceiling using the SmartBracket panel. It includes 2 pre-installed CR123A batteries, providing up to 5 years of battery life. It is especially suitable for installers working with Ajax EN54 control panels who need to add visual alarm signalling without installing additional communication cabling.

Overall, the Ajax EN54 Indicator Jeweller combines red LED visual signalling, long-range wireless communication and fast commissioning in a compact, addressable device. It is intended for new installations and extensions of compatible Ajax EN54 systems and is not supplied as a spare part, providing a practical solution for making fire alarms visible where the main detector cannot be seen directly. If you would like to purchase this indicator in black, you can find the AJ-EN54-INDICATOR-B in our catalogue.

Reference: AJ-EN54-INDICATOR-W
