Interior White Coaxial Cable Cu/CCA Dca Coil 100m by Fagor

SKU

FAG84172B

Brands: Fagor

Availability: In stock

Delivery: 24/48 Hours

€53.52 Tax included

Technical Specifications of Fagor's 100m Coaxial White Cu/CCA Coaxial Cable

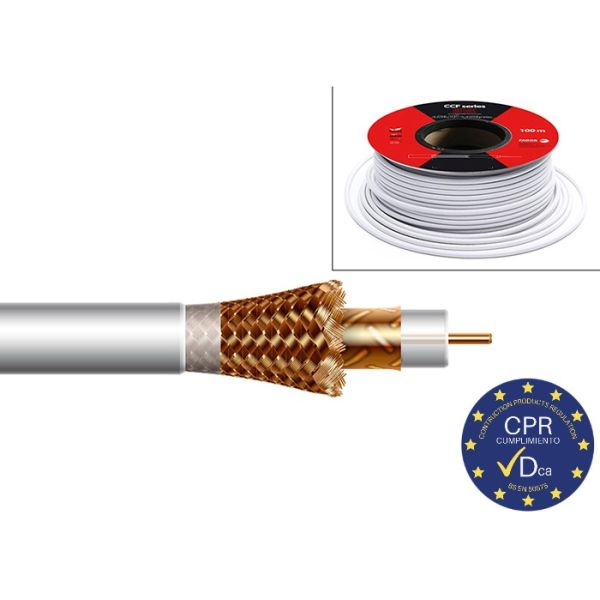

100 meter coil of white coaxial cable from the Fagor brand. This cable is ideal for any distribution of television signals in indoor installations.

The coaxial cable is RG6 type, made of high quality materials. This cable is made with a polyethylene dielectric (PEE), aluminum mesh and a PVC outer sheath, which makes this cable a very economical cable that has a surprising quality/price ratio, it also has an attenuation of 18.20 dB at 800 MHz. It has a CPR class D classification in terms of its level of reaction to fire.

It is supplied in coils of 100 meters and is white.

Details

Technical Specifications of Fagor's 100m Coaxial White Cu/CCA Coaxial Cable

Código / Reference	84172
Longitud carrete / Reel lenght	100 m.
Material carrete / Reel material	Cartón / Cardboard
Dimensiones bobina /Reel dimensions	Ø 255 x 130
Peso / Weight	4,3 Kg
Carretes por embalaje / Reels per package	5
Dimensiones embalaje / Packing dimensions	270x270x660

CONSTRUCTION
Conductor interior	Inner conductor	Material		Cu
		Diámetro / Diameter	mm	1,02 ± 0,02
		Resistencia interna/ Int. Resistance	Ω/Km	22
Dieléctrico	Dielectric	Material		PEE
		Diámetro / Diameter	mm	4,7
Lámina blindaje	Shielding sheath	Material		Cu Al
Conductor externo (malla)	Outer conductor (bride)	Material		CCA
		Resistencia / Resistance	Ω/Km	35
Lámina antimigratoria	Antimigratory sheath	Material		Polyester
Cubierta exterior	Outer sheath	Material		PVC
		Color/Colour	mm	blanco /white
		Diámetro / Diameter	mm	6,7
Radio de curvatura mínimo	Minimum bending radius	mm		40

More Information

More Information
System	RG6
Serie	100m
Entorno	Interior
Color	White
Cobertura Exterior Cables	PVC
Conductor Interno Cables	Copper (Cu)
Material Malla Coaxial	Copper Clad Aluminum (CCA)
Product Brand	Fagor
