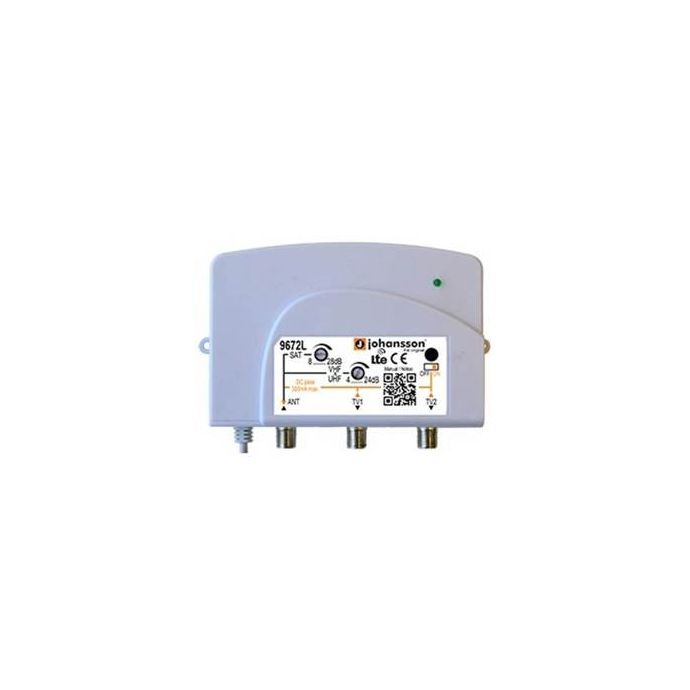

Johanson Indoor Amplifier with 2 UHF-SAT Outputs, 24dB, F Connector

SKU
JOH9672L2
Brands: Johansson
€25.65
Tax included
% Discount for professionals
Johansson
Availability: On request
1 to 7 days

Indoor Home Amplifier 2 UHF-SAT Outputs Johansson 9672L2

He Johansson 9672L2 housing amplifier it's a TV-SAT indoor amplifier designed for improve and balance the DTT and satellite signal in domestic and professional installations.

It has 1 combined UHF (47-694 MHz) and SAT (950-2400 MHz) input and 2 outputs , allowing several user points to be fed from a single downpipe, maintaining stable and controlled signal levels.

This Johansson UHF-SAT amplifier offers adjustable gain up to 23 dB on terrestrial and up to 30 dB on satellite , incorporates LTE/5G rejection , switchable DC current step to power LNB or preamplifiers and a Power indicator LED .

Furthermore, its design allows both wall and DIN rail mounting, which makes it especially practical for communications panels and technical housing records.

Reference: JOH9672L2

-
+

Extended information about Johansson 9672L2 Indoor Home Amplifier

A

Practical Applications of the Johansson 9672L2 Amplifier

1. Signal improvement in homes with DTT and satellite

This amplifier is ideal for single-family homes or apartments where signal is distributed DTT and satellite to two outlets, compensating for wiring losses and interior distributors.

2. Installation in technical records and communications boxes

Thanks to your compact format and the possibility of DIN rail mounting , the Johansson 9672L2 is particularly suitable for integration into electrical panels or ICT registers , maintaining an orderly and professional installation.

Technical Specifications of the Johansson 9672L2 Indoor Amplifier

The Johansson 9672L2 amplifier combines high performance, mounting versatility and compatibility with modern installations , including protection against LTE/5G interference.

Feature Specification
Brand Johansson
Reference 9672L2
Product type TV-SAT indoor amplifier
Tickets 1 (UHF SAT combined)
Departures 2
terrestrial band 47 – 694 MHz
satellite band 950 – 2400 MHz
Land gain 3 – 23 dB (adjustable)
satellite gain 12 – 30 dB (adjustable)
SAT Pending 8 dB fixed
Ground noise figure 4 dB
Satellite noise figure 6 dB
Max level land entry 90 dBµV
Max level satellite input 98 dBµV
Max level land exit 106 dBµV
Max level satellite output 114 dBµV
LTE/5G rejection Yeah
DC current step Switchable (max. 300 mA)
Feeding 85 – 240 V~ / 50-60 Hz
Consumption 3 W
Indicator Power LED
Mounting Wall or DIN rail
Dimensions 137 × 92 × 42 mm
Use Inside

More Information
More Information
EAN 2096727000018
Hight 0.060
Length 0.140
Width 0.100
System SAT SAT & DTT Amplifier
SERIE SAT F Connector
Color White
Type Indoor home amplifier
Entorno Interior
Input signal FI, FM, UHF, VHF
# Inputs 1
Outputs 2
Gain 24
Max. output level Ganancia (dB/uV) 106
LTE compatible No
Current bypass Satellite, Terrestrial
Usar stock disponible No
Product Brand Johansson
