Kit 1 Audio Housing 2 Wires Telephone Series 8 + Sfera New Plate

SKU

TEG378151

Brands: Tegui

Availability: In stock

Delivery: 24/48 Hours

€231.82 Tax included

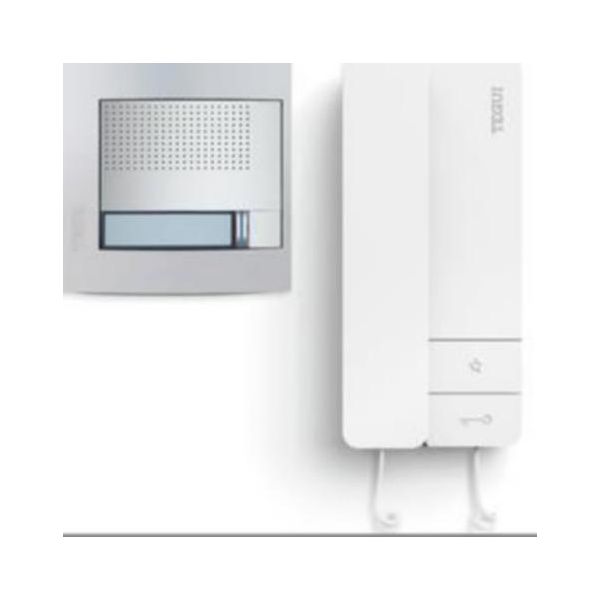

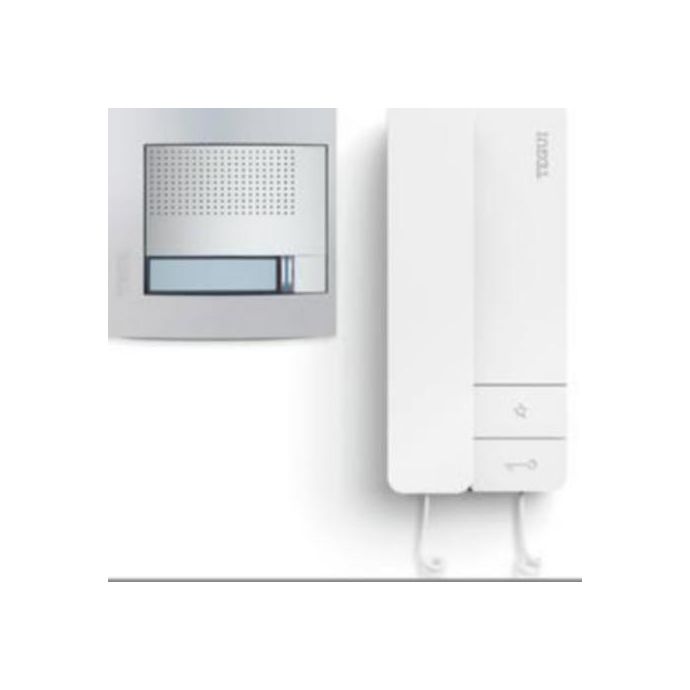

Audio Kit 1 Housing with Telephone Series 8 and Sfera New Plate 378151 by Tegui

This audio kit is made up of a series 8 telephone and a Sfera New panel. It is a kit designed for a home with 2-wire technology.

The intercom phone is series 8 for surface installation. It comes with magnets on the earpiece for easy holding. It has 2 buttons to open the door and another auxiliary function. The installer can configure it based on the configurator inserted in the housing (M). On the side we can find a selector to regulate the volume of the phone. The phone comes in white, with straight and elegant lines.

The plate is from the Sfera New series. It is an exterior plate with anodized aluminum finishes. It is prepared to be embedded in the wall. It has a card holder to indicate the information of the home and a light.

The kit also includes the feeder. Installation is very simple with 2-wire technology.

This kit can be expanded to up to 3 phones per home.

Details

Technical Specifications of the Audio Kit 1 Housing with Series 8 Telephone and Sfera New Plate

With video	No
Number of indoor stations	1
Number of outdoor stations	1
Number of call/doorbell buttons	1
Installation technique	2 wires
Indoor unit installation type	Surface mounted (plaster)
Indoor station color	White
Outdoor unit installation type	Surface mounted (plaster)
Outdoor unit material	Aluminum
Outdoor station color	Grey
Hearing safety	Yeah
Allows connection with smartphone	No
Free hands	No
With memory function	No
Label space/print area	Yeah
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT compatible	No
Width	95mm
Height	200mm
Depth	30mm
Protection class (IP)	IP54
Operating temperature	5-45°C
Storage temperature	-10-70°C
Voltage type	DC
Rated voltage	18-27V
Rated current	0.005-0.05A
Frequency	0-0Hz
sound level	82 dB
Standby consumption	5mA
Free of halogens	Yeah
Antibacterial treatment	No
Connection cable type	Flexible or rigid
Core Cross Section	0.1-2.5mm²
USB port	No
Equipped with waterproof plate protection	Yeah
With signal lamp	No
Control mode	With cable
Contains battery and/or accumulator	No
Volume control	Yeah
Addressable	Yeah
Doorman with mobile application	No
Remote opening of the gate / electric door opener	No
Resolution	Not applicable
Screen brightness adjustment	No
Screen Contrast Adjustment	No
Visitor memorization function	No
Maximum distance between plate and indoor unit	600m
connected object	No
