Kit DUOX for 22 Homes with Monitors (2 Wires)
Duox kit for 22 homes with videoportero
This kit allows us to install a video door entry system in a building with twenty-two dwellings.
This kit includes everything needed for our installation, from the street plate to the 22 monitors of our home.
The monitor incorporates an intuitive menu through graphic icons so that the installer can perform the programming of the functions of the monitor according to the needs of the installation.
The kit for 22 houses of Fermax has everything necessary to realize our installation of video door entry in a building of 22 houses.

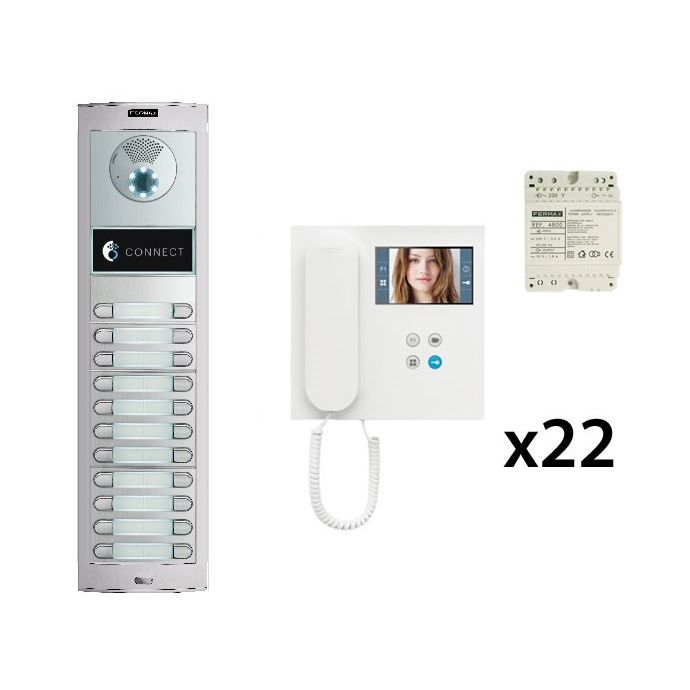

What does this Fermax kit include?
- Street sign with twenty pushbuttons.
- 22 monitors.
- 4800 Feeder.
- Feeder 4830.
- Duox filter.
- 2 Duox line adapters.
What technical features does the 9405 monitor have?
- Auto-start: With the monitor at rest, pressing the self-start button, you have the possibility to perform the auto-start with different plates (if any):
- With block 0 of the block corresponding to the monitor.
- With block 1 of the block corresponding to the monitor.
- With the General Input plate with plate number 0.
- Call Extension or Light and Ring Activator: For direct connection of the call extension or the Activator of lights and bells in the corresponding terminals.
- 4.3 "TFT display.
- Resolution: 480 (H) x 272 (V) lines.
- Installation of SURFACE (Installed on the wall, its extra-flat profile protrudes only 23 mm from the wall, 44 with arm).
- Dimensions monitor: 200 x 200 x 44 (high-width-deep).
- Power: 18 Vdc
- Door release button and concierge call.
- Call volume control
- Adjust color, brightness and contrast.
- Door bell: for direct connection of the house call button to the monitor / telephone.
- Selectable ring tones.
- Private communication. Secret of conversation.
- Consumption (± 5%):
- At rest: 25 mA.
- With audio + video: 230 mA
- Monitor with OSD screen: It incorporates an intuitive menu through graphical icons so that the installer can realize the programming of the functions of the monitor according to the needs of the installation and also for the user that can accede to the user's adjustments for its personalization, Ie the usage profile of your device: brightness and contrast, type and volume of melodies, additional functions, activate and deactivate silent mode, etc ...
