Kit with Panel and Switch 2 White Buttons A-SMARTHOME

SKU
A-LST86-KIT-2L-W
Brands: SMARTHOME
Availability: In stock
24/48 Hours
€22.87 Tax included
-
+

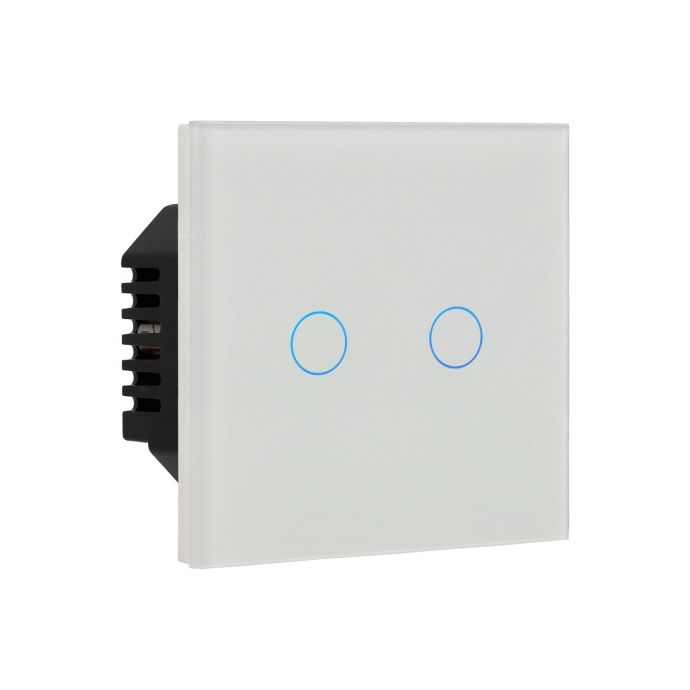

Kit with Panel and Switch 2 White Buttons A-SMARTHOME

This kit consists of two elements: on the one hand, the switch panel (A-LST86-2L-W) and on the other hand, the relay for the switch with 2 buttons (A-TS86-2L). They are used to control lighting in a home automation way.

The switch has a very elegant design, made of white tempered glass. It is backlit and tactile

This A-SMARTHOME kit is prepared to be controlled with your mobile phone. You will be able to control the devices through the installation's WiFi wireless network (only 2.4GHz networks are compatible). Then, you will only have to add them to the Smart Life mobile App in a very simple way.

To configure the Smart Life App, we just follow the following steps:

  1. We connect the mobile phone to the same WiFi as the connected devices.
  2. We open the Smart Life app
  3. We press and hold any touch button on the switch until it starts flashing red, which will mean that the connection has started.
  4. From the App, click on “Add” to add the device. It is recommended to change the name of the device to identify it correctly.
    It will ask us for the WiFi key, we enter it.
  5. The pairing procedure will begin and when it is finished it will be shown as added.

We repeat the operation with all the devices.

Technical Specifications of the Kit with Panel and Switch 2 White Buttons A-SMARTHOME

Specifications and Features

Type: Single Switch Panel with 2 Buttons

MATERIAL AND DIMENSIONS

Material: Tempered glass

Dimensions: 86 x 86 x 16 mm

Net weight: 115g

Weight with packaging: 120 g

White color

SPECIFICATIONS (SWITCHES)

Backlight: Yes

Touch panel: Yes

WIFI

Wi-Fi Standard: IEEE802.11 b/g/n

Frequency range: 2.4 GHz

Mobile App: Smart Life

FOOD AND CONSUMPTION

Power mode: AC

Voltage: 160V ~ 240V

Standby Consumption: 0.02W

Current consumption: 10A

MATERIAL AND DIMENSIONS

Dimensions: 50 x 50 x 30 mm

Net weight: 55g

Weight with packaging: 70 g

SPECIFICATIONS (SWITCHES)

Backlight: Yes

Capacitor: Yes

Electrical connection: Only with phase cable

Manageable by scenarios: Yes

Touch panel: Yes

Status recovery after power failure: Yes

Switched function: Configurable via app

Cycle life: 100000 cycles

ATMOSPHERE

Operating temperature: -20ºC ~ 70ºC

Use: Indoor

Maximum humidity: 93%

More Information
System WiFi
SERIE Actuators
Color White
Automation Button / Switch
Product Brand SMARTHOME
Write Your Own Review
You're reviewing:Kit with Panel and Switch 2 White Buttons A-SMARTHOME
Your Rating
File Label Size Download
pdf Manual Kit con Panel e Interruptor 2 Botones Blanco A-SMARTHOME 1.1 MB Download
