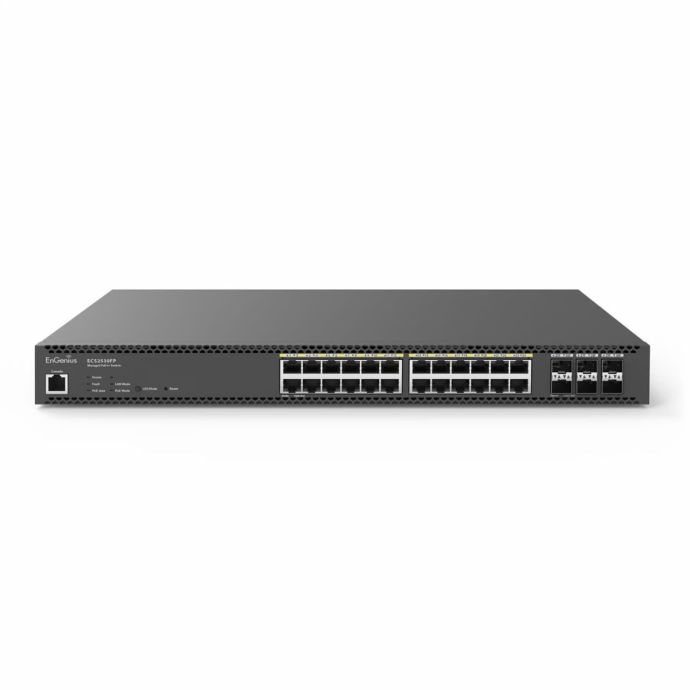

Manageable Switch 24Ports 2.5Gb POE++ and 6 SFP+ 10Gb 740W Cloud by Engenius

SKU
ENGECS2530FP
Brands: EnGenius
€843.72
Tax included
% Discount for professionals
EnGenius
Availability: On request
1 to 7 days

Switch gestionable 24 Puertos 2.5Gb POE y 6 SFP 10Gb 740W Cloud – Engenius ECS2530FP

This cloud managed multigigabit switch is a high-performance solution for professional deployments. With 24 2.5 GbE ports , medium PoE , 6 x 10Gb SFP links and a total budget of 740 W, allows you to power and connect high-demand devices in corporate environments. Install the Engenius ECS2530FP facilitates the evolution of modern networks focused on growth and reliability.

ECS2530FP integrate 24 ports 100/1000/2500 Mb/s and eight of them admit People (802.3bt) with up to 90 W, offering an ideal solution for WiFi 6/7 access points, cameras or industrial panels. For installers working in demanding infrastructures, this switch provides an optimal balance between PTZ caps or industrial panels. For installers working in demanding infrastructures, this switch provides an optimal balance between capacity, stability and available power.

His cloud management EnGenius Cloud allows centralized administration, advanced monitoring and remote maintenance. Incorporates professional functions such as VLAN 802.1Q, ACL, QoS, LACP and static routing, making it a solid tool for enterprise projects that require granular control and consistent performance.

Altogether, the Engenius ECS2530FP It stands out for its multi-gigabit connectivity, PoE flexibility, 10 Gb links and advanced management. A model prepared to face high-density environments and current business architectures.

Reference: ENGECS2530FP

-
+

Technical Specifications of the Engenius ECS2530FP 24-port 2.5Gb PoE 6 SFP 10Gb 740W Cloud Managed Switch

Practical applications – Manageable Switch 24 Ports 2.5Gb POE and 6 SFP 10Gb 740W Cloud – Engenius ECS2530FP

Practical case 1: Installation in a multi-plant company with high-density WiFi

Thanks to the ECS2530FP's 24 multi-gigabit PoE ports, an installer can deploy 2.5 Gb/s WiFi 6/7 access points on each floor, take advantage of the six 10 Gb SFP uplinks to connect to the core or aggregation, and manage the network in the cloud. This combination facilitates the expansion of corporate infrastructures with high densities of users, IP cameras and VoIP phones without the need to change equipment in the future.

Practical case 2: Technical network for campus or educational building with high consumption PoE power

In environments such as a university campus or large educational center, where powering PTZ cameras, digital displays and next-generation access points is required, the ECS2530FP offers 740 W of total PoE power. Its eight PoE port capacity with up to 90 W per port allows demanding devices to be connected directly to the switch. Thanks to cloud management, the professional installer can monitor consumption, adjust priorities and ensure stable performance.



Technical Characteristics of Manageable Switch 24 Ports 2.5Gb POE and 6 SFP 10Gb 740W Cloud – Engenius ECS2530FP

Parameter Detail
Ethernet standards 802.3u (100Base-TX), 802.3ab (1000Base-T), 802.3bz (2.5GBase-T)
Network ports 24 × 100/1000/2500 Mb/s 6 × SFP (10 Gb)
Switching capacity 240 Gbps
Know / creatures Ports 1-16: PoE (802.3at); Ports 17-24: PoE (802.3bt up to 90W)
Total PoE budget 740 W
Feeding 100-240 VAC, 50-60 Hz
SDRAM memory 512 MB
Flash memory 128 MB
Management EnGenius Cloud cloud platform local web interface
Security / L2 features VLAN 802.1Q, IGMP/MLD snooping, ACL based on MAC/IPv4/IPv6
Operating temperature range 0 °C a 50 °C
Dimensions (mm) 440 × 257 × 44mm ‎≈ (length × width × height)
Weight 4 011 g (≈8,84 lb)
Warranty 5 years

*If you need the declaration of conformity for this product, click here.

More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
REDES - System POE+
REDES - SERIE 24 Ports
Color Black
Network Equipment Switch
Ports 24
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Usar stock disponible No
Product Brand EnGenius
