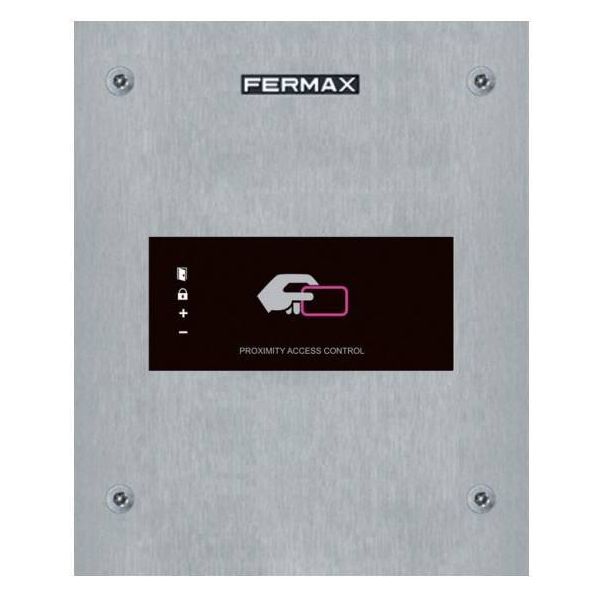

Marine Proximity Reader in Stainless Steel

Marine Series Stainless Steel Proximity Reader for Door Opening

 What are the main features of the Fermax 5472 Proximity Reader?

• Does not require physical contact reader-card. Reading distance at 5 cm (card) or 1.5 cm (key ring).
• Acoustic and visual information on actions.
• Very simple manual or PC programming (card registration / cancellation).
• Door sensor control and exit button
• Relay output.
• Door release activation by relay with programmable time. Programmable 1 to 99 sec.
• Signaling LEDs (helps programming and status).

What technical specifications does the Fermax 5472 Proximity Reader have?

• Dimensions (HxV mm): 150 x 180
• Embedding box (HxVxP mm - included): 130 x 160 x 55
• Surface box with visor (HxVxP mm - optional): 154 x 184 x 55
• Environmental Protection (IP): 54
• Shock protection (IK): 09
• Power (V):
• Autonomous: 12V (ac / dc).
• Centralized: 12Vdc
• Consumption (mA) without lock release: 90
• Operating temperature: -15 to 55º
