Mast Amplifier 1in/1out UHF 30dB LTE 5G
AMP-LTE304L Mast Amplifier by Tecatel
Mast amplifier with 1 input and 1 output for DTT-UHF (470-694 MHz) with 30dB gain manually adjustable (± 15dB) and switchable DC current passage for active terrestrial antenna power.
This amplifier is adapted to the 2nd Digital Dividend as it has an integrated LTE2 filter that eliminates 5G interference, with a cut in channel 49. As a maximum output level it supports up to 105dBμV and offers a very low noise figure of only 2dB. The equipment is powered at 24V and has a consumption of 48 mA.

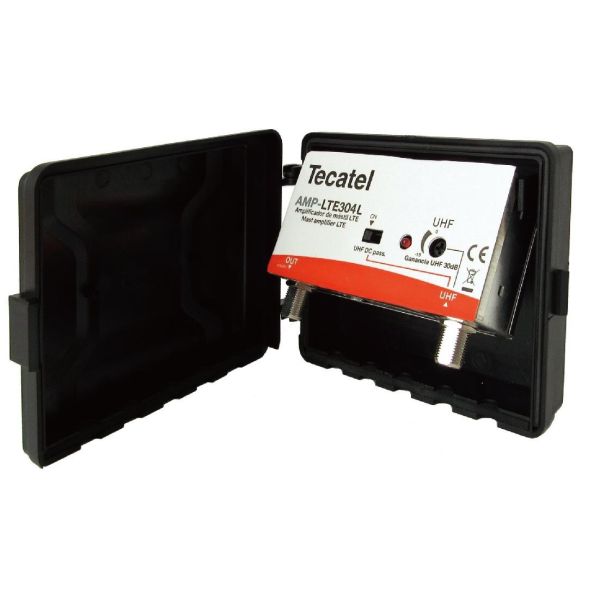

The dimensions of the Tecatel LTE304L amplifier are 135 x 95 x 40 mm and it is protected with a black housing that allows it to be installed outdoors, on the antenna mast.
Tecatel mast amplifier for 1 UHF antenna with integrated 5G LTE filter.
What technical specifications does the Tecatel AMP-LTE304L mast amplifier have?
|Input ports||1x UHF|
|Frequency range||470 - 694 MHz|
|Gain adjustment||15 dB|
|Output level DIN45004B-60||105 dBμV|
|Noise figure||≤ 2 dB|
|Power supply||24 VDC|
|Power consumption||48 mA|
|Dimensions||135 x 95 x 40 mm|
|Max. output level Ganancia (dB/uV)||105|
|Ficha técnica del amplificador de mástil AMP-LTE304L de Tecatel||191.3 KB||Download|
