Mast Amplifier 40dB 2xUHF with LTE 5G

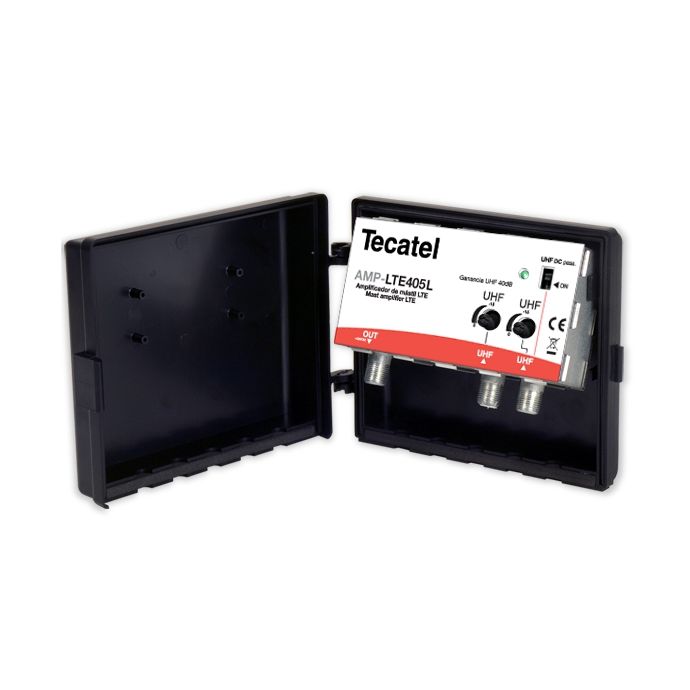

Amplifier 40dB 2xUHF with LTE 5G Tecatel AMP-LTE405L
Tecatel mast amplifier adapted to the 2nd Digital Dividend with 2 UHF inputs (470-690 Mhz) and 1 output, high gain up to 40dB adjustable (± 15dB) and maximum output level 112 dBμV.
The equipment is powered at 12 or 24V, with a low consumption of 70mA and includes DC current pass to power active dipoles of the antennas. The amplifier connections are type F Female.
This amplifier is protected from the outside with a 145x110x45mm housing.
40dB high gain DTT mast amplifier with 2 UHF inputs and integrated 5G LTE filter.
In our blog you can find an explanation in detail of how to perform an Installation of a Mast Amplifier.
What are the main characteristics of the Tecatel AMP-LTE405L mast amplifier?
- Professional broadband amplifier for mast, 40 dB.
- Latest generation amplifier with low consumption.
- Current passage to feed active dipoles.
- Low noise figure.
- Zamak chassis
- Power from 12 to 24V.
- Integrated LTE2 filter.
What technical specifications does the AMP-LTE405L mast amplifier from Tecatel have?
|
Entradas / Input Ports |
2 x UHF |
|
Rango de frecuencias (MHz) / Frequency range (MHz) |
470 - 694 MHz |
|
Ganancia / Gain |
40 dB |
|
Ajuste de ganancia / Gain ajustment |
15 dB |
|
Nivel de salida DIN45004B-60 / Output level DIN45004B-60 |
112 dBµV |
|
Figura de ruido / Noise figure |
≤ 3 dB |
|
Conectores / Connector |
F Hembra / F Female |
|
Alimentación / Power Supply |
12 - 24 V |
|
Consumo / Power consumption |
70 mA |
|
Paso de corriente previo / DC pass |
Sí / Yes |
|
Índice de protección / Protection level (IP) |
IP23 |
|
Dimensiones / Dimensions |
145 x 110 x 45 mm |
|
Peso / Weight |
300 gr. |
| EAN | 8430549067905 |
|---|---|
| Color | Black |
| Type | Mast amplifier |
| Entorno | Exterior |
| # Inputs | 2 |
| Outputs | 1 |
| Gain | 40 |
| Max. output level Ganancia (dB/uV) | 112 |
| LTE compatible | No |
| Current bypass | Terrestrial |
| Product Brand | Tecatel |
| Icon | Label | Size | Download |
|---|---|---|---|
|
Ficha técnica del Amplificador de Mástil LTE 5G Tecatel AMP-LTE405L | 161.5 KB | Download |
