Maxi 7'' Hands-Free WiFi Monitor for Comelit VIP System

SKU

COM6842W

Brands: Comelit

Availability: On request

Delivery: 1 to 7 days

€676.04 Tax included

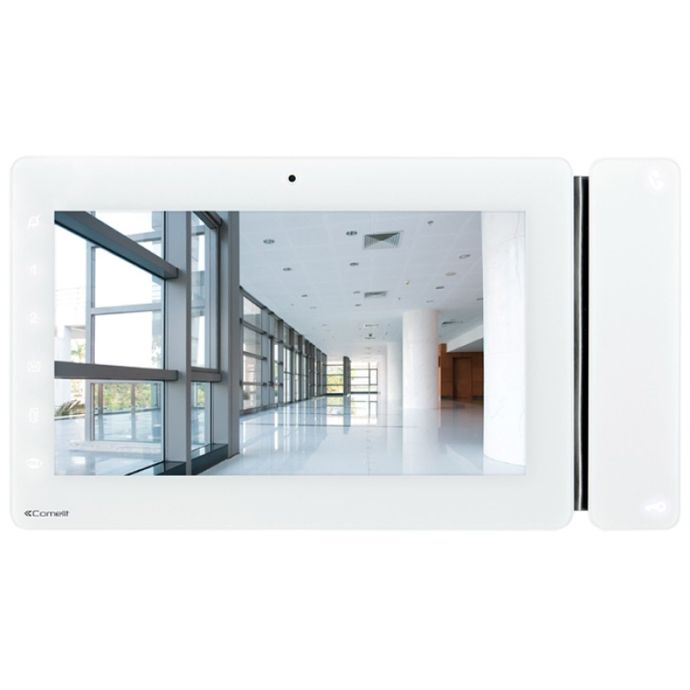

Comelit Maxi 7" Handsfree Monitor for VIP 6842W VIP System

Comelit's 7" Maxi de monitor, with VIP system for use in residential, commercial and industrial building installations. The monitor has a full colour screen with widescreen 16:9 widescreen and touch screen. It has full duplex speakerphone with magnetic induction.

You can manually modify various functions of the monitor, such as colour level, contrast, sound volume and ringtone volume. We can also customise the ringtone.

It has an opening and audio button by default. On the other hand, we can find 12 programmable keys, privacy function, message menu, auto power on.

Manages call landing and call replay as standard. Dimensions (W x H x D): 223x124x25mm. Can be installed on a surface or desktop base.

Details

Technical Specifications of the Comelit Maxi 7" Handsfree Monitor for VIP 6842W VIP System

MONITOR MAXI 7 PULGADAS WIFI, VIP
GENERAL INFORMATION
Height (mm)	124
Width (mm)	223
Depth (mm)	25
Product weight (g)	700
Product color	White RAL9003, gray base RAL7001
Lining material type	ABS, Glass
flush mounting	Yes, with a dedicated accessory
wall mount	Yes, with a dedicated accessory
desktop mount	Yes, with a dedicated accessory
COMPATIBLE SYSTEMS
ViP	Yes
screen
Display size (")	7
aspect ratio	16:09
Touch screen	Yes, resistive
Resolution (pixels)	800x480
On Screen Display (OSD)	Yeah
AUDIO FEATURES
Induction Loop Function	Yes
Microphone	4mm (Ø), Omnidiretional
Speaker	80mm (Ø), 80 Ohm, 1W
Technologies implemented	Full-Duplex
ELECTRICAL CHARACTERISTICS
Power supply type	PoE
PoE power supply	Standard IEEE 802.3af, Comelit PoE (56VDC)
Stand-by absorption (W)	2,75
MAXI 7 INCH WIFI MONITOR, VIP
ELECTRICAL CHARACTERISTICS
Maximum absorption (W)	4,83
HARDWARE FEATURES
Button type	Capacitive
Service buttons	Door opener, Answer, Silent (Privacy), Menu, Messages, Door open
Number of programmable buttons for additional functions	2
Terminals	CFP1 In1 Al Pan Out1 S+ S- 0V
Removable terminals	Forks
Number of entries (no.)	1
Number of outputs (no.)	1
Supported memory card	Micro-SD (not supplied)
Communication ports	RJ45 (Ethernet)
SETTINGS
Speaker volume	Yes
Microphone volume	Yes
Ringtone volume	Yes
Brightness of the screen	Yes
Screen contrast	Yes
Screen color	Yes
Screen backlight	Yes
NETWORK AND COMMUNICATION PROTOCOLS
LAN network type	Ethernet 10/100 Mbit/s, IEEE 802.3, IEEE 802.3u (Fast Ethernet)
Wi-Fi connection type	IEEE 802.11 b/g/n, 2.4 Ghz, 13 channels
MONITOR MAXI 7 PULGADAS WIFI, VIP
NETWORK AND COMMUNICATION PROTOCOLS
Supported encryption and authentication method	OPEN networks WPA-PSK, TKIP WPA2-PSK, AES WEP 64 bits (5-digit ASCII or 10 hexadecimal codes), 128-bit WEP (13-digit ASCII or 26 hexadecimal codes), WPS Authentication (compatible with WPA2-PSK)
IP address assignment	DHCP
IoT connection to Comelit Cloud	Yes
Firmware update via Comelit Cloud	Yes
