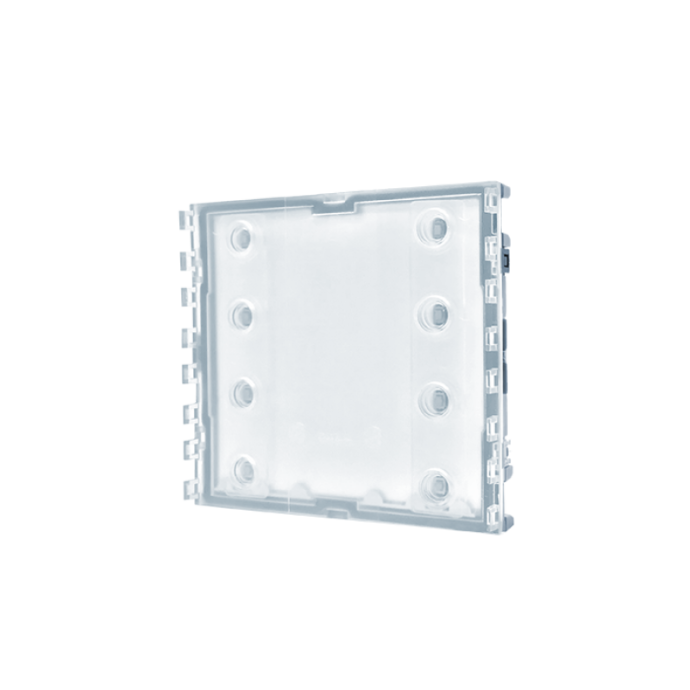

Module of 8 Ultra-Embellished Call Buttons for Simplebus and VIP

SKU

COMUT9200

Brands: Comelit

Availability: In stock

Delivery: 24/48 Hours

€65.05 Tax included

Module of 8 Ultra-Embellished Call Buttons for Simplebus and VIP

Module for Ultra series entrance panel, prepared with 8 call buttons. The module is compatible with all systems.

Made of high quality plastic, specially treated so that the plastic does not turn yellow over time.

The module comes with white lighting on the card holders. It has automatic switch-off in the backlighting of the card holders during the day, thanks to the sensor of the associated audio or audio/video module.

It can be used to complete with 4 individual buttons (4 calls) or 4 double buttons (8 calls) or with caps.

Dimensions: 100x90x35mm

Details

Technical Specifications of the 8 Ultra-Embellished Call Button Module for Simplebus and VIP

ULTRA CALL BUTTON MODULE
GENERAL DATA
Type	Modular
Height (mm)	90
Width (mm)	100
Depth (mm)	35
Product color	Transparent
Flush-mounted	Yes, with a dedicated accessory
Wall-mounted	Yes, with a dedicated accessory

COMPATIBLE SYSTEMS
Audio/video Simplebus 2 with power supply art. 4888C	Yes
Audio/video Simplebus 2 with power supply art. 1210/1210A	Yes
Audio Simplebus 2 with power supply art. 1210/1210A	Yes
Audio/video Simplebus 1	Yes
Audio Simplebus 1	Yes
ViP	Yes

ELECTRICAL CHARACTERISTICS
Type of power supply	Power supply from video door entry bus
Supply voltage	33VDC
Absorption in stand-by (W)	0.4
Maximum absorption (W)	0.4

HARDWARE FEATURES
Call type	Push-buttons
Type of buttons	Mechanical
Number of push-buttons (n°)	8
Backlight colour	White, Off

ULTRA CALL BUTTON MODULE
SETTINGS
Backlight brightness	Yes

ENVIRONMENTAL AND COMPLIANCE FEATURES
Operating temperature (°C)	-25 ÷ 55
Operating humidity (RH max) (%)	25 ÷ 95
Environmental class	IV
CE certifications	RoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
