12-24VDC Power Supply Module for Ajax Hub 2, Hub 2 Plus and ReX 2
12-24VDC Power Supply Module for Ajax Hub 2, Hub 2 Plus and ReX 2

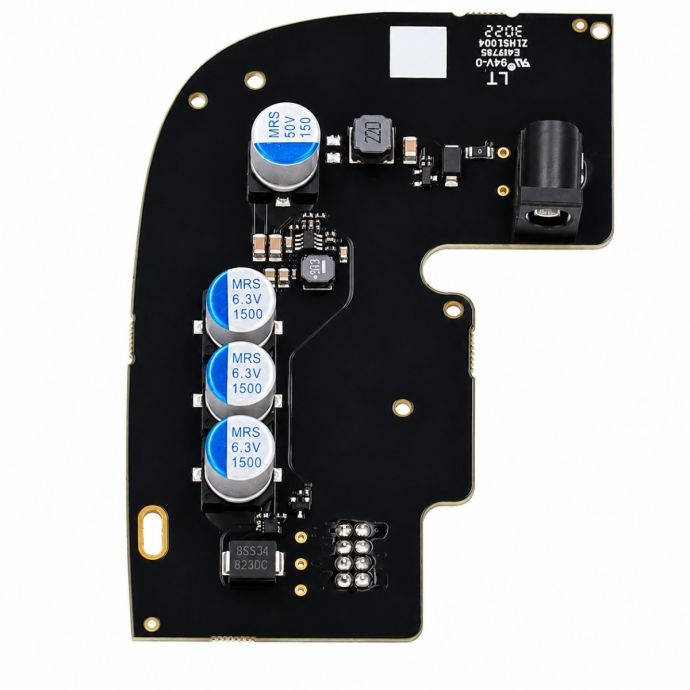

The Ajax AJ-DC1224V-PCB2 power supply module enables compatible Ajax hubs and range extenders to operate in locations where a conventional mains power supply is unavailable. It is a practical solution for powering the system from external batteries, solar installations or other low-voltage DC power sources.
This electronic board is installed inside the device and replaces the standard 110/230 V~ power supply board. It supports an external 8–32 V DC power supply, making it suitable for autonomous installations in country houses, warehouses, bungalows, construction sites and other locations without a stable mains electricity supply.
The 12-24V PSU (type A) is compatible with Hub 2, Hub 2 Plus and ReX 2. Installation involves opening the device, removing the standard power supply board and connecting this module to the device electronics. It is a replacement and adaptation power module, particularly suitable for installers who need to integrate an Ajax alarm control panel into projects powered by a DC infrastructure.
In short, the AJ-DC1224V-PCB2 expands the installation possibilities of the Ajax system by removing the need for a conventional 110/230 V~ power supply. It is a reliable solution for autonomous projects requiring a compatible hub or an Ajax ReX 2 range extender to operate from an external low-voltage power source.
Reference: AJ-DC1224V-PCB2
