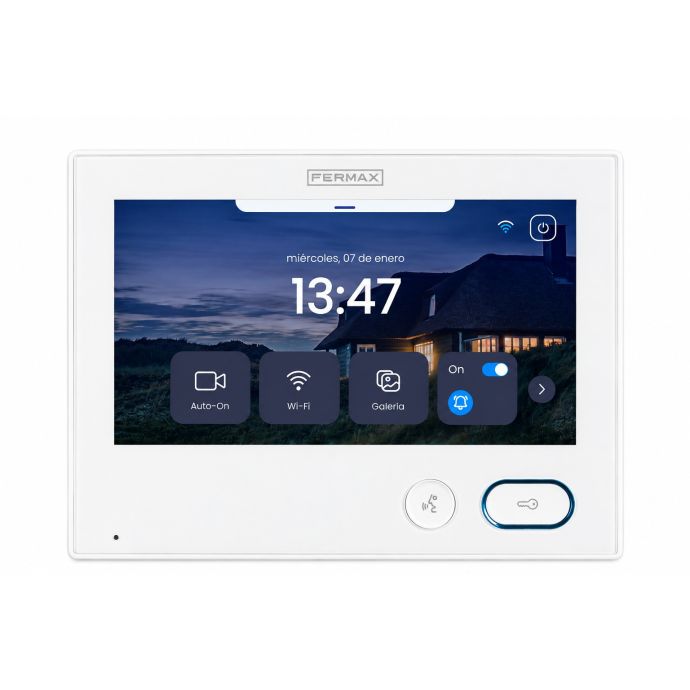

Fermax Iris Smart WiFi 7" DUOX Plus Monitor in White

SKU
FER9264
Brands: Fermax
€342.96
Tax included
% Discount for professionals
Fermax
Availability: In stock
5 days

Fermax 9264 Iris Smart WiFi 7" DUOX PLUS Monitor

The Fermax 9264 Iris Smart WiFi 7" DUOX PLUS Monitor turns the indoor video door entry terminal into a complete communication and control centre for the home. Its 7" panoramic IPS touchscreen, hands-free operation and WiFi connectivity make it easy to manage visitors directly from the monitor or from mobile devices.

It operates with DUOX PLUS, Fermax's fully digital 2-wire non-polarised system, and features 2.4 GHz WiFi for forwarding calls to smartphones and tablets via the DuoxMe app. From a mobile device, users can answer calls and manage access even when they are away from home. For wall mounting, the Fermax 9447 DUOX PLUS connector must be ordered separately.

Its 16:9 IPS display offers a 1024 × 600 pixel resolution and gesture-based navigation. The terminal can store up to 150 visitor photos and 10 videos of 15 seconds each, as well as display up to 4 IP cameras via RTSP streaming. For installers looking to combine video door entry, remote access and additional surveillance in a single terminal, the Iris Smart provides particular value by bringing these functions together in one interface.

The Doormatic function can be configured for up to 12 hours to automatically open the door when a call is received, making it particularly useful in offices and certain professional environments. The FER9264 can be used for compatible new DUOX PLUS installations, system extensions or replacement of a compatible terminal; it is not a complete video door entry kit on its own. You can also explore the range of video door entry monitors available at TDTprofesional.

Reference: FER9264



-
+

Extended Information about the Fermax Iris Smart WiFi 7" DUOX PLUS Monitor in White

Practical Applications of the Fermax Iris Smart WiFi 7" DUOX PLUS Monitor

Example 1. Automatic access control in a hair transplant clinic:

In a hair transplant clinic with regular opening hours, the Normaltic function allows access to be managed without auxiliary staff having to interrupt patient care or their support to the medical team whenever someone arrives at the clinic. During the scheduled opening hours, the system enables the door to open automatically, avoiding unnecessary trips to the entrance. This allows staff to remain focused on treatments, preparing procedure rooms and caring for patients, helping to improve the clinic’s day-to-day organisation.

Example 2. Automatic door opening and IP camera monitoring in an office:

In offices, reception areas or professional environments with frequent visitor access, the Doormatic function can be configured for automatic door opening for up to 12 hours. The same monitor can also display up to four IP cameras via RTSP streaming, making it possible to monitor additional areas from a single interface. This combination is particularly useful for installers who need to integrate door entry, remote communication and additional visual supervision into one DUOX PLUS terminal.

Package Contents of the Fermax Iris Smart WiFi 7" DUOX PLUS Monitor

  • 1 x Fermax Iris Smart WiFi 7" DUOX PLUS Monitor, reference 9264 / F09264.

Technical Specifications of the Fermax Iris Smart WiFi 7" DUOX PLUS Monitor

Specification Details
Manufacturer Fermax
Manufacturer Reference 9264 / F09264
TDTprofesional SKU FER9264
EAN 8424299092645
Technology DUOX PLUS
Bus Technology Full-digital 2-wire non-polarised system
Audio / Video System Colour Audio / Video
Installation Surface mounting
Required Surface-Mount Connector Fermax 9447, ordered separately
Connector Compatibility Fermax 9447 V1 and V2
Optional Desktop Support Yes, references 9420 / 9247
Communication Hands-free
Press-to-Talk Yes
Inductive Loop No
Display 7" panoramic IPS touchscreen
Screen Format 16:9
Screen Resolution 1024 × 600 pixels
Product Colour White
Physical Buttons 2 mechanical buttons
Status LEDs 5
LED Indications Power, WiFi, missed calls, Doormatic and Do Not Disturb
Terminal Address Programming Via OSD menu
Programming from Entrance Panel or Concierge Yes
Programming from Entrance Panel using Doorbell Yes
Programming from DUOX Decoders Supported
Photocaller Manual or automatic photo capture
Photo Storage Up to 150 photos
Photo Resolution 368 × 288 pixels
Videocaller Manual or automatic video capture
Video Storage Up to 10 videos
Video Duration 15 seconds per video
Call to Concierge Unit Yes
Auto-On Function Yes, up to 3 entrance panels / cameras
On-Screen Menu Yes, OSD
Additional Function F1 Yes, negative output and/or command; installer-configurable icon
Additional Function F2 Yes, command only; installer-configurable icon
Doorbell Yes, with differentiated melody
Additional Device Connection Yes, compatible with Fermax reference 2040
Additional Terminals with Same Address Up to 2 additional terminals
Doormatic Function Yes, configurable for up to 12 hours
IP Camera Display Yes, up to 4 IP cameras
IP Camera Streaming RTSP
Compatible Auxiliary IP Camera Fermax reference 9986
Intercom Function Yes
Intercom Calling Modes Call-To-All or selective call
Maximum Intercom Conversation Time 90 seconds
Date and Time Setting Yes
Selectable Melodies Yes
Call Volume Adjustment 10 levels via OSD menu
Do Not Disturb Function Yes, with LED indication
Conversation Volume Adjustment Yes
Image Adjustment Brightness, contrast and colour
Product Dimensions 190 × 155 × 15.5 mm
Total Wall Projection with Connector 19 mm
Time Available to Answer or Open after Call 30 seconds
Conversation Time 90 seconds
Conversation Privacy Yes
Power Supply 18–24 VDC
Maximum Power Consumption 12 W
Operating Temperature -10°C to +55°C
Operating Humidity 0% to 95%
Integrated Line Adapter Yes, A / C, default position OFF
Terminals Bin, Bin, Bout, Bout, -, A+, F1, T
Mobile Call Forwarding Yes, to smartphones and tablets
Wireless Connectivity WiFi 2.4 GHz
Mobile Application Fermax DuoxMe
Configurable Web Page Spaces Up to 5
NXT Server Compatibility Yes, reference 1251
Packaged Product Weight 0.55182 kg
Package Dimensions 2.7 × 20.5 × 16 cm
