Nevoswitch 9 inputs x 9 outputs x 12 for floors "F" Terminal/Cascade

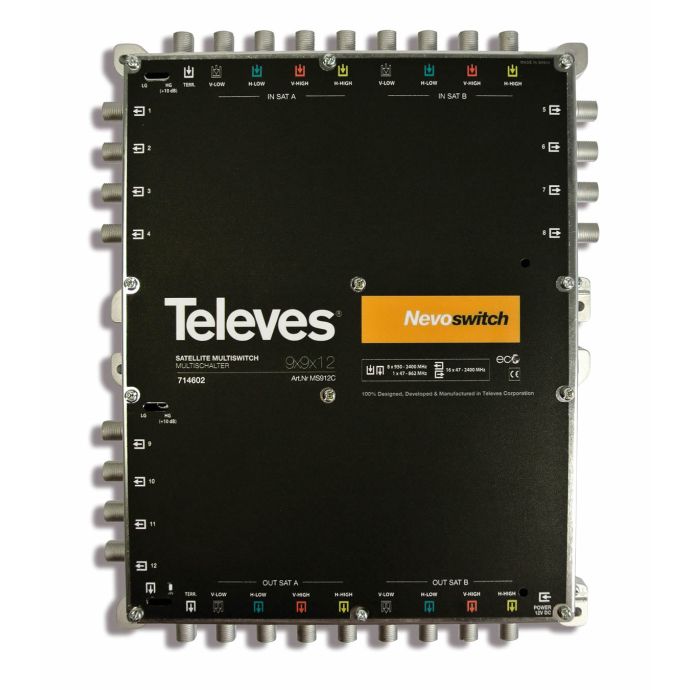

Nevoswitch 9x9x12 "F" Terminal/Cascade. Ref. 714602 from Televes.
New range of 9-input switchers. You have the following power options:
Through the SAT lines (12VDC)
Through the Power DC jack (12V)
The 12 Vdc power supply path is towards the SAT inputs/outputs, for the LNB power supply or other chained elements (cascade).
In addition, each user outlet must be powered by applying between 12 and 18V through its connector (with a receiver).
This range incorporates the ECO system by which the consumption of the installation is reduced as the number of connected users decreases.
The power supply can be done autonomously through the satellite receiver, so no power supply is necessary, or with the power supply Ref. 732101 (Power Supply 12V-0.8A), which is sold separately.
Technical Characteristics of the Nevoswitch 9 x 9 x 12 "F" Terminal/Cascade. Ref. 714602 from Televes
Stands out for:
*Zamak chassis that makes them immune to radiation.
*Scalable system for star and cascade topologies. IF gain expandable +10dB for each group of 8 users.
*Remote power supply through inputs and outputs.
*Low consumption ECO mode.
*Multiple power options (Jack, VL line, terrestrial input or output and user connectors)
*Independent amplification of each line (8 satellite + 1 terrestrial).
*Adjustable gain and equalization.
|Frequency range||MHz||SAT||950 ... 2200 / 2400|
|RF||88 ... 862|
|RET||5 ... 65|
|Through losses||dB||SAT||3.5 ... 7.5 / 10|
1..8 / 9..16 / 17..24 / 25..32
|DCPass||In-Out / Out-In|
|Powering||Vdc||PSU Trunk lines||12|
|User output (STB)||12-18|
|Max. total consump.||mA||PSU Low Gain(2)||85|
|PSU High Gain(2)||155|
|User Output (STB)||35|
|# Input satellites||8|
|# Terrestrial inputs||1|
|Ficha Técnica Nevoswitch 714602||133.4 KB||Download|
