Nevoswitch 9 inputs x 9 outputs x 32 for floors "F" Terminal/Cascade

SKU
TEL714605
Brands: Televes
€682.97 Tax included
Free shipping
(Iberian Peninsula)
Televes
Availability: In stock
24/48 Hours

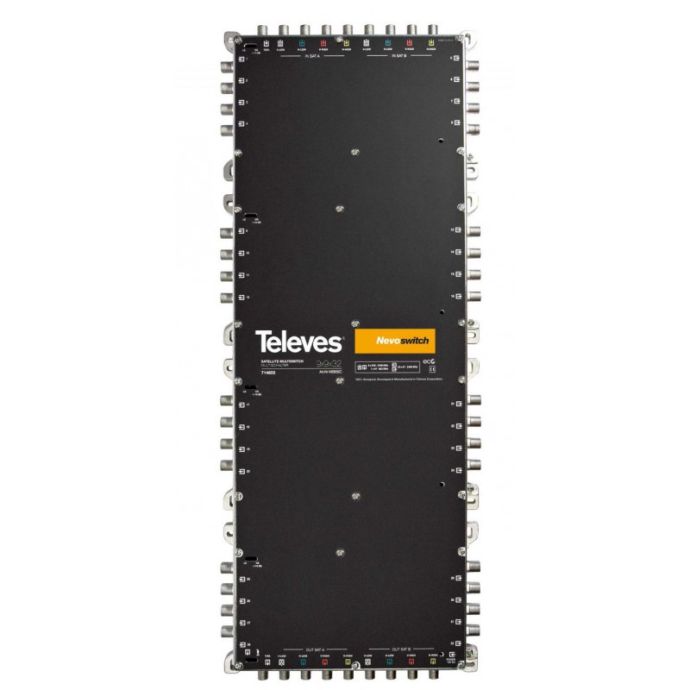

Nevoswitch 9x9x32 F Terminal/Cascade. Ref. 714605 from Televes.

New range of 9-input switchers. You have the following power options:

Through the SAT lines (12VDC)
Through the Power DC jack (12V)

The 12 Vdc power supply path is towards the SAT inputs/outputs, for the LNB power supply or other chained elements (cascade).

In addition, each user outlet must be powered by applying between 12 and 18V through its connector (with a receiver).

This range incorporates the ECO system by which the consumption of the installation is reduced as the number of connected users decreases.

The power supply can be done autonomously through the satellite receiver, so no power supply is necessary, or with the power supply Ref. 732101 (Power Supply 12V-0.8A), which is sold separately.

Technical Characteristics of the Nevoswitch 9 x 9 x 32 "F" Terminal/Cascade. Ref. 714605 from Televes

Stands out for:

*Zamak chassis that makes them immune to radiation.
*Low consumption ECO mode.
*Remote power supply through inputs and outputs.
*Scalable system for star and cascade topologies. IF gain expandable +10dB for each group of 8 users.


Main features:

*Multiple power options (Jack, VL line, terrestrial input or output and user connectors)
*Adjustable gain and equalization.
*Independent amplification of each line (8 satellite + 1 terrestrial).
*Compact design.
*Configurable cascade/star.



Type 9x9x32
Frequency range MHz SAT 950 ... 2200 / 2400
RF 88 ... 862
RET 5 ... 65
Input level dBμV SAT 112
RF 90
Through losses dB SAT 8 ... 13.5 / 18
RF 8
RET 12
Tap losses
1..8 / 9..16 / 17..24 / 25..32
dB

SAT(1) 0/4/8/12
RF 4/6/8/10
RET 34/37/40/43
Isolation dB H/V >30
Users >25
DCPass In-Out / Out-In
Powering Vdc PSU Trunk lines 12
User output (STB) 12-18
Max. total consump. mA PSU Low Gain(2) 170
PSU High Gain(2) 355
User Output (STB) 35
Protection level IP 20
Temp. range ºC –5...+45
More Information
EAN8424450173114
Hight0.216
Length0.041
Width0.540
System SATSAT Multiswitch
SERIE SATNevoswitch
TypeCascading, Final
# Input satellites8
# Terrestrial inputs1
# Inputs9
#User outputs32
LNB typeQuattro
Product BrandTeleves
