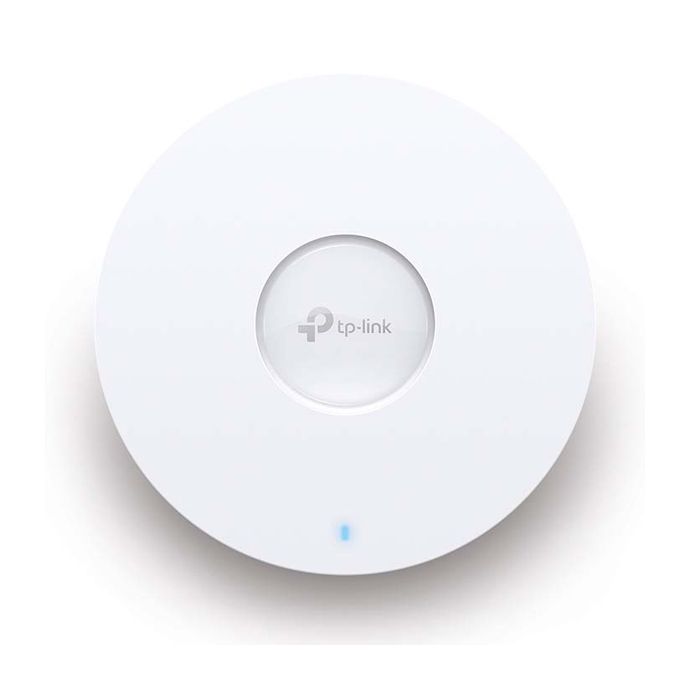

Omada Access Point WiFi6 Indoor Dual Band Managed in the Cloud EAP653 AX3000 photo

SKU

TL-EAP653

Brands: Tplink

Availability: On request

Delivery: 1 to 7 days

€123.25 Tax included

Omada WiFi6 Indoor Dual Band Access Point EAP653 AX3000

Ultra-fast 6-speed dual-band (2.4/5GHz) WiFi wireless access point for ceiling mounting. It integrates Omada SDN software that allows centralized management of the network 100% in the cloud, from a single simple and intuitive interface.

AX3000 high-performance access point with OFDMA and MU-MIMO technology, which increases network capacity up to 4 times compared to WiFi 5, for high-density environments, supporting more devices simultaneously. Ideal for hospitals, restaurants, shopping malls, meeting rooms, train/bus stations, airports, etc.

Seamless roaming that automatically switches clients to the access point with the optimal signal, with seamless streaming on the go. This allows video conferencing and IP calls without interruptions. Supports DC power, 802.3at POE+, and passive POE, for flexible installations.

This access point is placed on the ceiling and is very discreet thanks to its size, it is ultra light and thin, with a thickness of 33mm.

Details

Technical Specifications of the Omada WiFi6 Dual Band Indoor Access Point EAP653 AX3000

HARDWARE FEATURES
Interface	1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button	Reset
Power Supply	• 802.3at PoE • 12V DC (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC). Note: DC adapter is not included in the package, and is sold separately • 48V Passive PoE
Power Consumption	• EU: 13.5 W • US: 14.7 W
Dimensions ( W x D x H )	6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm)
Antenna Type	Internal Omni • 2.4 GHz: 2× 4 dBi • 5 GHz: 2× 5 dBi
Mounting	• Ceiling /Wall Mounting (Kits included) • Junction Box Mounting

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	• 5 GHz: Up to 2402 Mbps^† • 2.4 GHz: Up to 574 Mbps^†
Wireless Functions	• 1024-QAM • 4× Longer OFDM Symbol • OFDMA • Multiple SSIDs (Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • HE160 (160 MHz Bandwidth)^‡ • Seamless Roaming ^§ • Omada Mesh^§ • Band Steering • Load Balance • Airtime Fairness • Beamforming • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
Wireless Security	• Captive Portal Authentication^§ • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power	• CE: <20 dBm(2.4 GHz, EIRP) <23 dBm(5 GHz, Band1 & Band2, EIRP) <27 dBm(5 GHz, Band3, EIRP) • FCC: <22 dBm (2.4 GHz) <22 dBm (5 GHz)

MANAGEMENT
Omada App	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
System Logging Local/Remote Syslog	Local/Remote Syslog
SSH	Yes
Web-based Management	HTTP/HTTPS
L3 Management	Yes
Multi-site Management	Yes
Management VLAN	Yes
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.

OTHERS
Certification	CE, FCC, RoHS
Package Contents	• EAP653 • Ceiling/Wall Mounting Kits • Installation Guide Note: DC adapter is not included in the package, and is sold separately.
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment	• Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
