Omnidirectional TDT Amplified TV Antenna for Caravan and Boat by Nimo

SKU

NIMANT100

Brands: NIMO

Availability: In stock

Delivery: 24/48 Hours

€26.85 Tax included

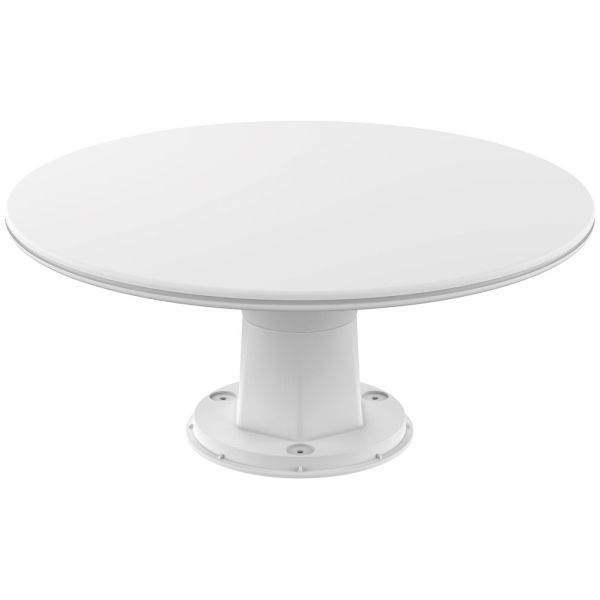

Omnidirectional Amplified DTT TV Antenna for Caravans and Boats by Nimo

The ANT100 omnidirectional antenna from Nimo is specifically designed for use in caravans, vehicles and boats for DTT reception. It is suitable for both indoor and outdoor use.

Being an omnidirectional antenna, it can receive signals from multiple directions without the need to adjust its orientation. It is very lightweight and compact for easy transport and installation.

It includes a high gain and low noise external amplifier, which will improve the signal in case of weak signal reception, in addition to incorporating 4G and 5G filters. It also includes feeder. Its housing is waterproof, treated against rust and protected against UV rays.

Includes different accessories for screw or surface mounting. This antenna can also be installed on a telescopic mast.

Details

Technical Specifications of the Nimo Amplified Omnidirectional DTT TV Antenna for Caravan and Boat

Feature	Description	Value
Feeding	Hollow jack 3.4*1.7mm	5V /550mA
Feeding	Power supply included	100-240Vac / 50-60Hz
Signals received	DVB-T/T2, Full HD TV, VHF, UHF
Frequency range	VHF	174-230MHz
Frequency range	UHF	470-698MHz
Profit	Total	45dB
	VHF	15dB
	UHF	30dB
Frequency filter	Incorporated	5G / LTE
Impedance	75Ω
Output connector	Male	CEI
Design	Color	White
Design	Material	ABS plastic
Size	millimeters	Ø 350*155
Weight	grams	640
Included accessories	Feeder
	Support with screws	For surface mounting
	Indoor amplifier

More Information

More Information
EAN	8445577008202
System	DTT
SERIE	CEI Connector
Entorno	Exterior
Orientation	Omnidirectional
Gain	High
LTE compatible	No
Supply required	Yes, included
Feed Power	5 Vc
Product Brand	NIMO
