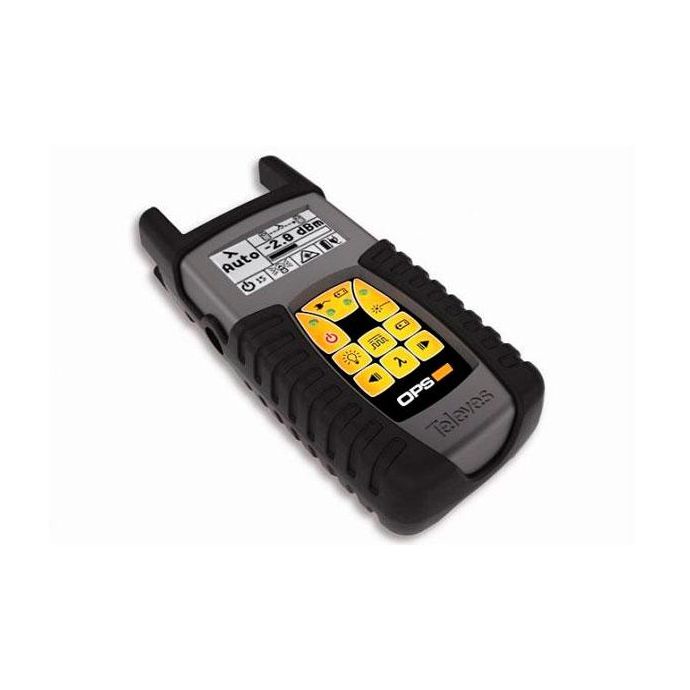

OPS10 Triple Light Generator (1310, 1490, and 1550 nm) Televes 2340

SKU
TEL2340
Brands: Televes
Availability: On request
1 to 7 days
Free shipping
(Iberian Peninsula)
€1,610.36 Tax included
Televes

OPS10 Televes Triple Light Generator (1310, 1490, and 1550)

Generator of light in the three typified wavelengths (1310, 1490 and 1550nm).

Complement to the H45 with optical interface for the measurement of optical attenuation in a fiber network.

It has two modes of operation: external power and rechargeable Li-Ion battery.

Generator of light in the three typified wavelengths (1310, 1490 and 1550nm).

What technical features does the aps10 optical generator have?

  • Optical power selection (0dBm to -10dBm).
  • Deactivation of the laser during the adjustment functions.
  • Signal modulation.
  • AUTO ID: function that communicates the light generator with an H45 / 60 meter for automatic identification of the wavelength.
  • Auto Off function

What technical specifications has the aps10 optical generator?



Specitications OSP10
Display LCD 128X64 px
Languages Universal
wavelengths 1310, 1491, 1550 nm
Modulation 270Hz, 1KHz, 2KHz Id Auto Serie-H
Tolerance ± 20 nm
Laser Type Fabry Pérot
Output power 0 to -8 (in steps of 1dBm)
Short term stability (15min) ± 0.1 dB
Long-Term stabilization (2h) ± 0.3 dB
External units and battery
Battery Li-Ion 7.4V
External power supply 12 Vdc
max Consumption 12 W
Autonomy 26 h
More Information
EAN8424450146002
Product BrandTeleves
SystemOptic Fiber
SERIETester
