Optical distributor with 8 outputs FC / PC

SKU

ANTVS144607

Brands: INVACOM

Availability: On request

Delivery: 1 to 7 days

€192.70 Tax included

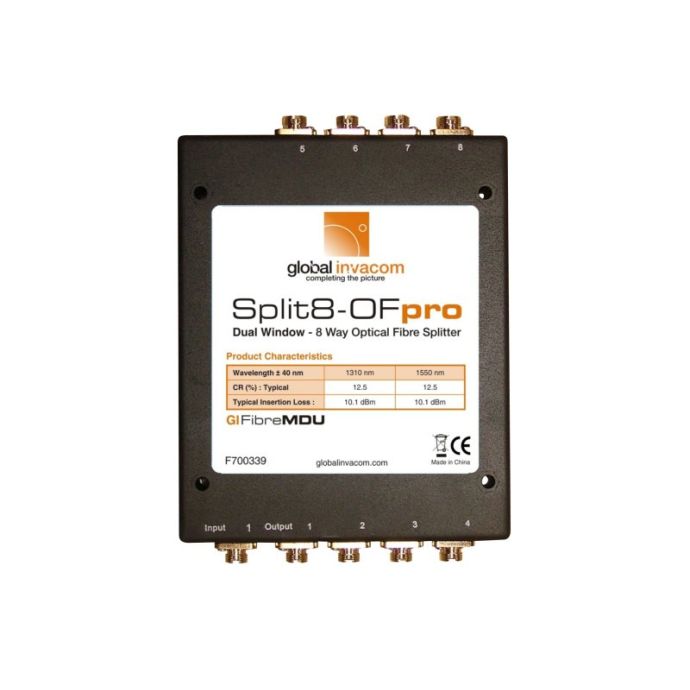

Optical Distributor with 8 output FC / PC ANTVS144607 from Invacom.

The optical distributor VS144604 of Antares allows the distribution in 8 lines, although versions exist versions of 2,3,4,8,16 and 32 ways.

This distributor has a double window at 1310 and 1550 nm, also allows the direct connection of fiber optic cables.

The image may not match the item.

Details

The Optical Distributor VS144607 allows us to distribute a fiber optic signal over two lines.

What technical characteristics does the VS144607 dealer have?

Operating wavelength of 1310 and 1550 nm.
Thermal stability of ≤ 0,2dB.
Directivity of ≥ 50dB.
Insertion loss of 10.1dB and 10.5dB maximum.
Operating temperature -40 to 75 ° C.
FC connector on the input and PC on the output.
Dimensions 148 x 115 x 21 mm

What optical distributor do I use?

First you have to take into account how many lines I want to work or need, and once we have planned our installation, we must buy the distributor that best suits our installation.

What connectors does this distributor use?

It uses an FC connector, which is a fiber optic connector with a threaded body, which was designed for use in high vibration environments, and a polished PC (Flat), which is the most used in fiber optic connectorization.
