Optical PAU + 40m SC/APC CPR Dca Hose Ref. 8016

SKU
IKU8016
Brands: Ikusi
Availability: In stock
24/48 Hours
€34.12 Tax included
Ikusi

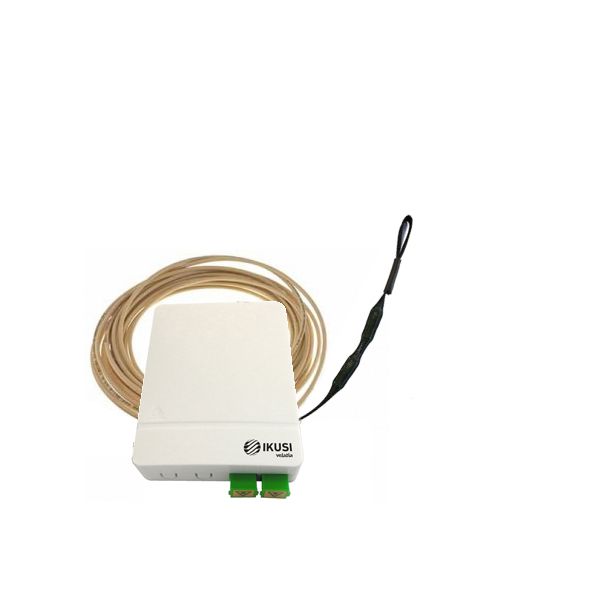

Optical PAU + hose 40m SC/APC CPR Dca 8016

User terminal registration box with 2 ports plus connectorized hose at both ends. This box serves as a connection point in a fiber optic network. In ICT environments and located in the Network Termination Registry (RTR), it acts as a cutting point and test of the optical network.

Includes a terminal box with SC/SC APC connectors and adapters.

The 40 meter long cable is of the CFA-002D type, with two tight fibers and traction resistance >450N.

Box contents:

*User terminal box kit

*Cardboard coil to facilitate the extraction of the cable of different lengths.

*Accessories: 3 screws + plugs.

Technical Specifications of the Optical PAU + 40m SC/APC CPR Dca Cable

Ref. 8016



PAUF-200D Series



MODEL

PAUF-210D

PAUF-215D

PAUF-220D

PAUF-225D

PAUF-230D

PAUF-240D

PAUF-255D

PAUF-270D

REF.

8011

8012

8013

8014

8015

8016

8017

8018

Cable length

10 meters

15 meters

20 meters

25 meters

30 meters

40 meters

55 meters

70 meters

Manufacturing material

ABS

Degree of protection

IP44

Dimensions

140 x 80 x 21 mm

Plastic material

UL 94 V-0 (Flammability safety standard)

Colour

White (RAL9003)

Adapters

2 x SC/APC

Accessories

2x M3 screw and plug + 2x Fusion protectors

SC/SC Adaptaters



Fiber type

SM



Polished

APC

Dust protection

Hinged lid with spring

2-Fiber tight cable G657A2-LSZH CFA-002D



Number of Fibers

2



Core diameter and cladding

9 / 140 µm (124.8 ±0,7)

Tight-fitting Fiber cover



Diameter

850 µm ±50 µm



Material

LSZH

Colour

Green, red

Outer cover



Outer diameter

4 ±0.2 mm



Thickness

0.8 mm ±0.05 mm

Material

LSZH -FR

CPR

Dca-s2, d2, a2

Colour

Ivory RAL 4040

Interior protection



Aramids

Normativa

ITU-T·G·657 A2 - EN-188000 TIA/EIA 455-240 - IEC 60793-2-50 IEC793-2 ty A1 - IEC-TS 61941

IEC-60794-1-2 E1,3,4,6,7,11,F5





SC Connectors

Connector type

SC

Polished

APC

Connection type

Polished

IL insertion loss

0.2 dB



More Information
EAN8435136480167
SystemOptic Fiber
Serie40m
Fiber typeSinglemode
EntornoInterior
ColorWhite
Product BrandIkusi
