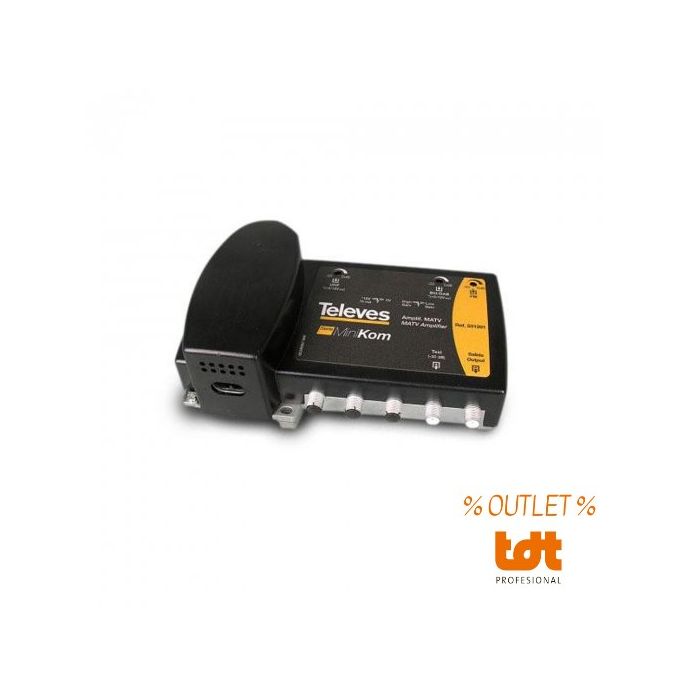

main product photo

OUTLET Televes Minikom FI Multiband Central Station

SKU
OUTTEL532401
Brands: Televes
% Discount for professionals
Televes
Availability: Out of stock
Consult

OUTLET: Televes amplifier center 532401

The Televes 532401 amplifier station is a professional solution designed to integrate satellite services in neighboring communities that already have an operational DTT installation, without the need to modify it.

Thanks to its design with two different entrances , this center allows you to receive the existing DTT signal without amplification, respecting the levels already set and combine it with the satellite IF signal, which is amplified to guarantee correct distribution in all homes.

The 532401 amplifier unit is very frequently used for Astra 19.2ºE , where Movistar is located, and configure it with local power in 12Vc , and 0Khz tone, so that the LNB fixes the polarity low vertical and being like this, the Movistar signal is distributed throughout the community.

This functionality makes it a very practical option for installers who need adapt a collective headend to new satellite services , maintaining the previous infrastructure and reducing intervention times and possible incidents. Altogether, the Televes 532401 offers a clean, efficient and reliable installation, ensuring a stable mixed signal that is distributed throughout the building network through its output with type F connector.

What is TDTprofesional OUTLET?

Our Outlet category is made up of products from returns of our clients, who are in perfect condition and have been tested by our technical department to guarantee their correct operation . The product packaging may have dents or the product may not be sent in its original packaging. The products in our Outlet include a special discount and they have the Same warranty as new products .

Reference: OUTTEL532401

OUTLET: Technical Specifications of the Televes 532401 Amplifying Central

Practical Applications of the Televes 532401 Amplifying Station

1. Integration of Movistar in communities with existing DTT

In buildings where the installation of collective DTT is already correctly adjusted, the Televes 532401 amplifier center allows you to add the Movistar by satellite without altering the land head. The UHF/VHF signal is received without amplification and is mixed with the amplified IF signal, maintaining system stability.

2. Update of collective headers without modifying the network

In maintenance work or expansion of services, this central UHF/VHF/FI facilitates the incorporation of satellite signal taking advantage of existing wiring. This reduces costs, intervention times and risks of imbalance in already operational community facilities.

Technical Specifications of the Televes 532401 Amplifying Station

The Televes 532401 amplifier center is designed for professional applications at the head of buildings, allowing the controlled mixing of terrestrial and satellite signals with maximum reliability.

Tickets   2 (VHF/UHF)
Amplified Band   950 - 2150
Revenue VHF/UHF dB -1.5
BE 35 - 45
Output level VHF/UHF dBµV -
BE 124 DIN V VDE 0855/12
noise figure VHF/UHF dB -
BE
Gain regulation dB  20
Equalizer 0 - 12
Max current step line mA 300 (E)
(13 / 17 Vdc)
Request 22 KHz 0,65 VPP (E)
Local AC power Vac 184 - 265
AC consumption In  14
DC consumption (at 24 Vac) mA -
Dimensions mm 180x110x55

What is Televes central 532401 used for?

This center is used to install Movistar in a community where there is already an existing DTT installation.

This control panel is very convenient to install since it has two inputs, one for the existing DTT installation, which does not amplify, it only receives it and mixes it with the signal from the IF input, which is amplified. This signal is mixed through the type F output connector and reaches all the homes in the building.

More Information
More Information
EAN 8424450149515
Hight 0.230
Length 0.070
Width 0.130
DTT System Amplificador TDT y SAT
SERIES DTT F-connector
Color Black
Type Broadband station
Entorno Interior
Input signal FI, FM, UHF, VHF
# Inputs 3
Outputs 1
Gain 45
Max. output level Ganancia (dB/uV) 124
LTE compatible No
Current bypass Satellite, Terrestrial
Usar stock disponible No
Product Brand Televes
