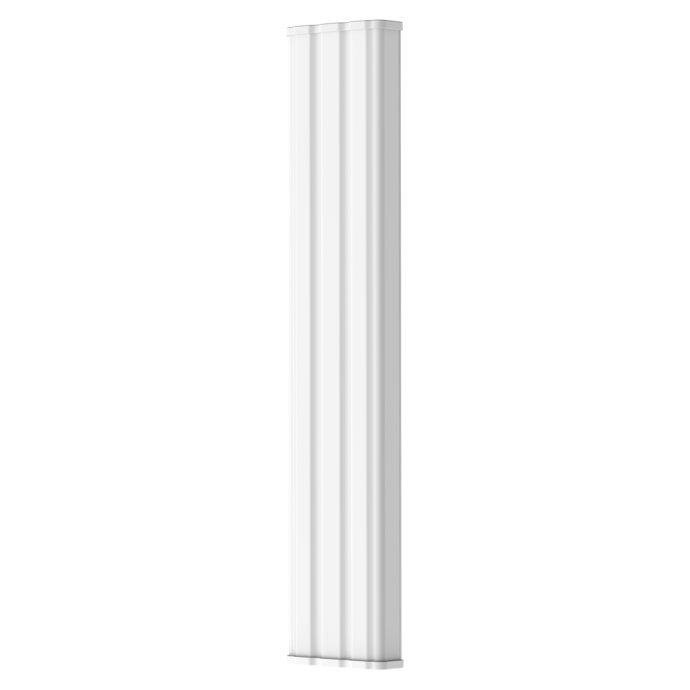

main product photo

Passive Antenna Compatible with RG-AirMetro550G-B 10Km by Reyee

SKU
RG-ANT20S-90
Brands: Reyee
€188.75
Tax included
% Discount for professionals
Reyee
Availability: In stock
1 to 7 days

90° Sector Passive Antenna for 5 GHz Radiolink Reyee RG-ANT20S-90

The Reyee RG-ANT20S-90 is a 90° sector passive antenna designed for high-power wireless radio links at 5 GHz, fully compatible with the base station RG-AirMetro550G-B.

Thanks to your 20 dBi high gain, this Reyee sector antenna allows ranges up to 10 km , concentrating the signal in a defined sector and significantly improving the signal to noise ratio compared to antennas with less coverage.

With outdoor design IP55, two SMA male connectors and elongated dimensions (694 mm) , the RG-ANT20S-90 is the ideal solution for professional PTMP networks that require maximum distance and stability. This antenna is part of the Reyee (Ruijie) AirMetro ecosystem and is used assembled directly to the RG-AirMetro550G-B, acting as a passive antenna for the radio link electronics.

Reference: RG-ANT20S-90



-
+

Expanded Information on the Reyee RG-ANT20S-90 Passive Sector Antenna

Practical Applications of the Reyee RG-ANT20S-90 Antenna

1. Long Range PTMP Wireless Networks

Ideal for industrial estates, rural environments or critical infrastructures , where the CPEs are located in a sector defined by distances of several kilometers.

2. High stability wireless CCTV distribution

Perfect for distributed video surveillance, supporting up to 32 PTMP links from a RG-AirMetro550G-B base station, maintaining stable and controlled links from the cloud.

Contents in the packaging of the RG-ANT20S-90

According to the manufacturer's technical sheet:

  • Reyee RG-ANT20S-90 Sector Passive Antenna

  • Fixing elements 2 SMA Female-Female hoses

  • Instructions

Technical Specifications of the Reyee RG-ANT20S-90 Passive Antenna

Feature Specification
Brand Reyee (Ruijie)
Model RG-ANT20S-90
Guy Passive sector antenna
Frequency band 5.15 – 5.85 GHz
Revenue 20 dBi
Horizontal coverage 90°
Vertical coverage 7th
Maximum distance Up to 10 km (ideal conditions)
Integrated antenna 20 dBi dual directional
RF ports 2 × SMA male
Feeding Does not require
Protection degree IP55
Use Abroad
Compatibility RG-AirMetro550G-B
Mounting Mast
Dimensions 694 × 140 × 49 mm
Weight 3.82 kg
Application PTMP (up to 32 links)

More Information
More Information
Hight 0.400
Length 0.100
Width 0.300
REDES - System WiFi
REDES - SERIE Punto - Multipunto
Color White
Network Equipment Radio link
PoE No
Usar stock disponible No
Product Brand Reyee
