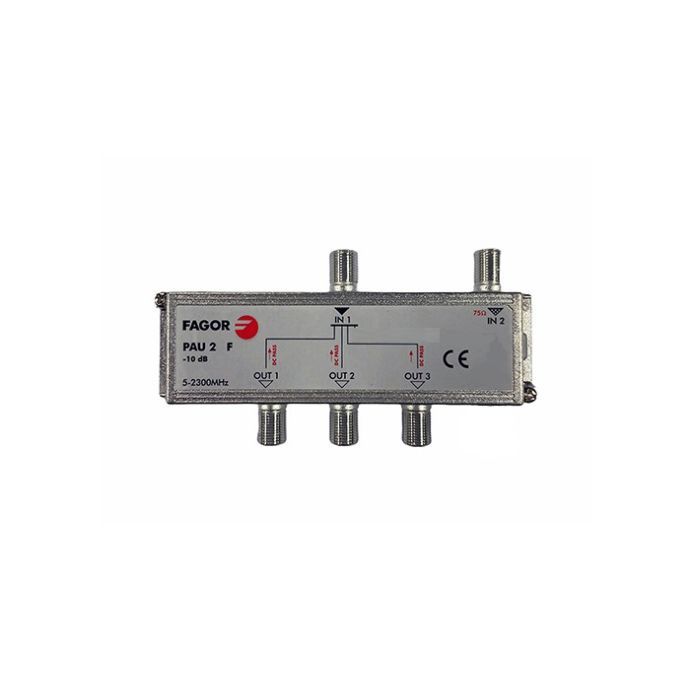

PAU Splitter 3 Outputs Connector F 6.5dB Fagor

SKU

FAG85349

Brands: Fagor

Availability: In stock

Delivery: 24/48 Hours

€7.11 Tax included

Fagor User Access Point 2 Inputs 2 Outputs 85349 Fagor

This device called PAU or user access point is used to distribute the television signal inside your home. This element makes the connection between the building network and the user's internal network. This distributor PAU is only installed in community building installations that comply with the ICT regulations, which obliges the user to receive 2 verticals from the radio-television network.

It has 2 inputs (one of them with a load of 75 Ohms) and 3 outputs, all of them with OUT-IN current flow. This PAU has insertion loss of 6.5 dB at 690 MHz.

Both the inputs and outputs of this access point have an F connection, which allows for easy mounting threading.

Details

Technical specifications Fagor User Access Point 2 Inputs 3 Outputs 85349 Fagor

What are the features of the 85349 model?

Reference	85349
Number of input	2
Number of output	3
Connection type	F
Covered band	5/2300
Decoupling between outputs	27-25
Return Losses at the input	10
Return loss at the output	10
Current step 24Vcc, 0.5ª, 22KHz IN-OUT Current step 24Vcc, 0.5ª, 22KHz OUT-IN	NO SI
Units per package	10
Packaging dimensions	165x90x60
Weight(10 u.)	1.1

More Information

More Information
System	DTT
SERIE	F-connector
Color	Silver
TV-SAT Distribution Equipment	UAP
Entorno	Interior
TV-SAT Distribution Connection	F
Outputs	3
Input signal	UHF
Insertion Loss (dB)	6
Current bypass	Yes
Product Brand	Fagor
