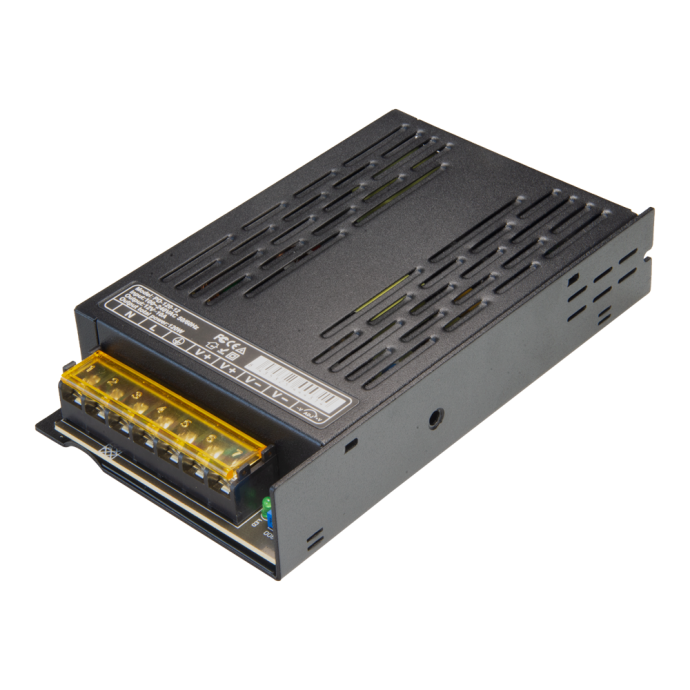

Power Distribution Box 12v / 10A PD-120-12

SKU
PD-120-12
Brands: TDTprofesional
Availability: On request
1 to 7 days
€33.54 Tax included
-
+

Power transformer 1 input 2 outputs with 120w of total power 10A/12V

This power supply is switched and stabilized. It has 1 AC 100V-240V input and 2 outputs per copper pair. With total power of 120W. With 10A Amperage and 1V Voltage.

Resettable fuse protection (short circuit, overvoltage and current peaks).

Its casing is metallic.

Package content:

Power distribution box with 2 outputs DC 12 V
Key for security lock
installation material

Technical Specifications of the Power Transformer 1 input 2 outputs PD-120-12

Specs



Power supply input AC 100 V - 240 V 50/60 Hz
Power supply outputs 2 outputs via copper pair (clamp)
Output voltage DC 12~14.8 V
Total power 120 W (10 A)
Max intensity. per output 1100 mA
Protection Short circuit / Over voltage / Current peaks
Filtered EMI / PFC
Temp. operation -20º C ~ +60º C
Dimensions 32 (H) x 97 (W) x 160 (D) mm
Weight 580 g
More Information
System Accessories
SERIE Accessories
Color Black
Product Brand TDTprofesional
Write Your Own Review
You're reviewing:Power Distribution Box 12v / 10A PD-120-12
Your Rating
File Label Size Download
pdf Ficha Técnica Caja de Distribución de Alimentación PD-120-12 682.6 KB Download
