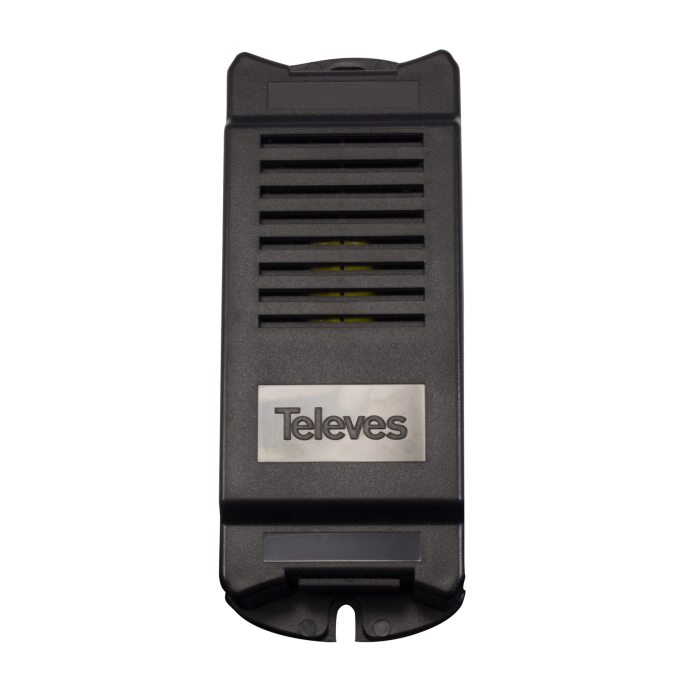

Power supply of 24V and 1.6A T0X individual 562802 of Televes

SKU
TEL562802
Brands: Televes
Availability: In stock
24/48 Hours
€56.49 Tax included
-
+

24V power supply for T0X module

Do you need a power supply for a transmodulator module? The Televes 562802 power supply is a 24V, 1.6A power supply that is used as a power supply for a Televes T0X transmodulator module.

Most modules have a consumption less than 2A. Just consider the voltage and current your module needs.

The Televes 562802 power supply enables the Televes T0X modules to be powered.

What technical characteristics does the 562802 feeder have?

  • Input voltage: 99-138 / 207-253 V.
  • Frequency: 50 - 60 Hz.
  • Output voltage: 24 V.
  • Maximum output current: 1.25 - 1.6 A.
  • Temperature range: -5 - + 45ºC.
  • Protection index: IP20.
  • Weight: 100 g.
  • Dimensions: 56 x 144 x 39 mm

What is the 562802 feeder used for?

Televes 562802 power supply is a feeder used to power a module of the Televes T0X series.

More Information
EAN 8424450185452
System DTT
SERIE T.0X
Color Black
Power supply Monocanal
Feed Power 24 Vc
Current (mA) 1600
Outputs 1
Product Brand Televes
Write Your Own Review
You're reviewing:Power supply of 24V and 1.6A T0X individual 562802 of Televes
Your Rating
File Label Size Download
pdf Ficha técnica de la fuente de alimentación 562802 de Televes 300.6 KB Download
