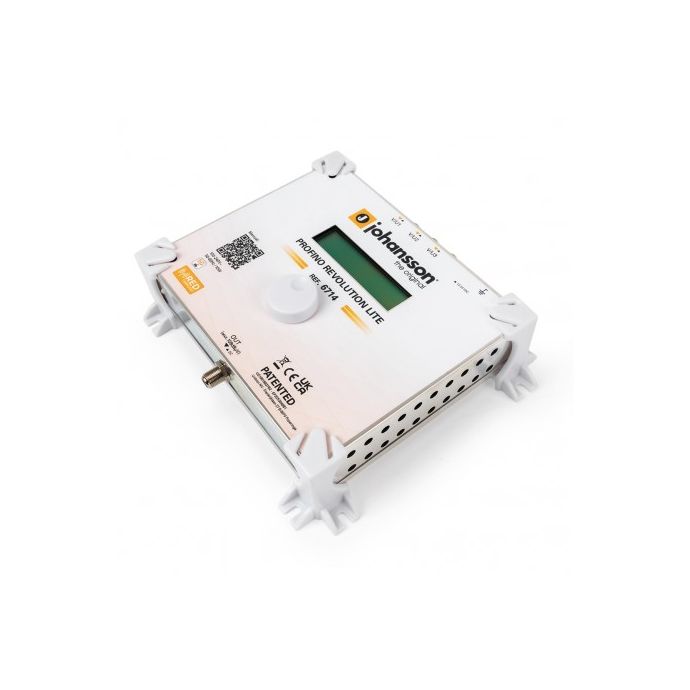

Profino Revolution LITE 3e+FA Programmable Central Kit

SKU

JOH6714

Brands: Johansson

Availability: In stock

Delivery: 24/48 Hours

€193.70 Tax included

Profino Revolution LITE 3e+FA Programmable Central Kit

We present to you the new updated programmable control panel from Johansson. It is the update of the 6714 version 1.8.OR, which introduces an improved FM input, becoming much more powerful and versatile, satisfying the management requirements of the current market.

This kit is made up of: a Profino Revolution Lite series programmable control unit (ref. 6700) and the external power supply (ref. 2438). The control unit amplifies the signal from the UHF and VHF bands, with a total of 3 inputs, significantly optimizing terrestrial signals in a very simple way.

The amplifier has 1 FM/VHF/UHF input and 2 VHF/UHF inputs. With this new FM input, the Profino Revolution is more powerful and more versatile.

This programmable central will save you time and work when installing the headend in your telecommunications system. On the one hand, it has 32 filters, so it can process up to 50 channels. It is easy to configure thanks to the AGC (Automatic Gain Control) that will automatically adjust the gain of the signals without the need for a field strength meter.

The best thing about this programmable central is that it has an external power supply that will be connected to the same central through the output coaxial cable, being able to install the central near the capture system and the source in the place where we have a power outlet. . This system is ideal in old buildings where the communications room where the power supply is located is far from the area where the antennas are located and the headend can be installed in a place close to the antennas, thus minimizing the noise figure.

In addition, it also allows you to process channels in S band, reducing losses and has 5G LTE protection.

Details

Technical Specifications of the Profino Revolution LITE 3e+FA Programmable Central Kit

	6714 (SW1.8.0R)
Inputs	-	3 VHF/UHF (wideband)
Outputs	-	1 main (VHF-S-UHF)
Input frequency range (EU*)	MHz MHz	VHF: 174 - 240 UHF: 470 - 862
Output frequency range (EU*)	MHz	174 - 862
LTE protection	MHz	694MHz (5G)
Input level	dBµV dBµV	VHF: 37 - 109 UHF: 37 - 109
VHF/UHF output power (60dB/IM3)	dBµV	114
VHF/UHF output power (36dB/IM3)	dBµV	125
VHF/UHF output power with 1 MUX	dBµV	108
VHF/UHF output power with 6 MUX	dBµV	108
VHF/UHF output power with 15 MUX	dBµV	105
VHF/UHF output power with 32 MUX	dBµV	102
Number of channels	-	More than 50 (32 filters)
Add channels	-	Per 1, 2, 3, 4, 5 or 6 MUXes
Conversion	-	Yes (from any VHF-UHF channel to any VHF-S-UHF channel)
Gain	dB dB	VHF: > 65 UHF: > 65
Gain adjustment	dB	Channel AGC
Noise figure	dB	7
General attenuator	dB	20
VHF/DAB attenuator	dB	15
Selectivity	dB/1MHz	50
Return Loss	dB	10
Output MER	dB dB	VHF: 35 UHF: 35
ESD protection	-	All inputs
Remote voltage for preamp Remote current	V mA	12 or 24 100 (total for the 4 inputs)
Operating temperature	°C	-5 to +50
Power Supply Power Consumption	V W	12V (use ref.2438) 9
Dimensions	mm	190 x 165 x 59
Weight	kg	0,65

* frequency range can vary slightly according to local channel plan (check REGION settings) | ** For 64QAM with code rate 3/4

More Information

More Information
EAN	2067140400013
System	DTT
SERIE	Profino
Type	Programmable station
Entorno	Interior
Input signal	UHF, VHF
# Inputs	3
Outputs	1
Gain	65
Max. output level Ganancia (dB/uV)	105
LTE compatible	Yes
Current bypass	Terrestrial
Product Brand	Johansson
