Promax TV EXPLORER NG Field Meter

SKU
PROTVEXPLORERNG
Brands: Promax
€3,232.52
Tax included
Availability: In stock
24/48 Hours

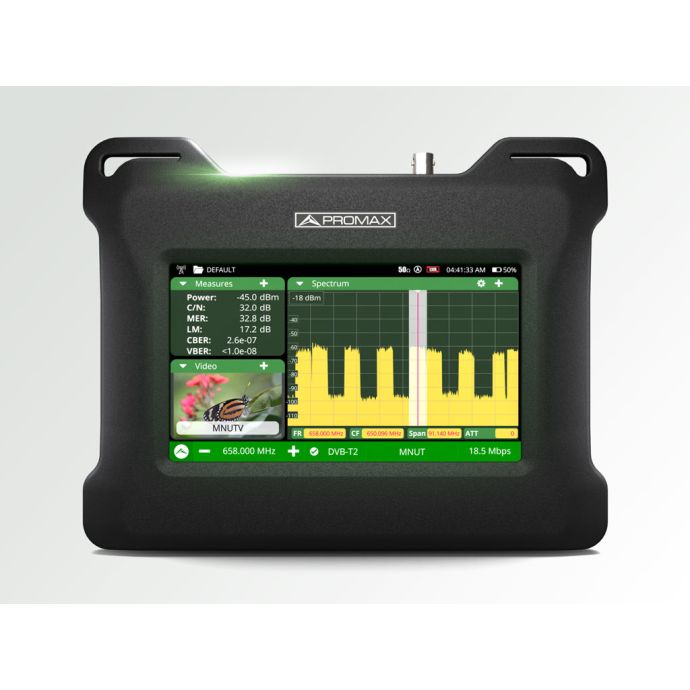

TV EXPLORER NG Universal Field Strength Meter with Native 4K

The Promax TV EXPLORER NG Field Strength Meter combines RF analysis, optical power measurement and UHD viewing in a professional instrument for the installation, maintenance and diagnosis of telecommunications networks. Its 7-inch multi-touch display, ultra-fast spectrum analyser and included hard carrying case make fieldwork and safe transportation easier.

This instrument supports DVB-T/T2 terrestrial TV, DVB-S/S2 satellite, DVB-C/C2 cable, ISDB-T/Tb, FM RDS and DAB/DAB+. It simultaneously displays power, C/N, MER and BER, together with other standard-specific parameters. It is intended for new installations, system extensions and maintenance work and is not a replacement part. See more professional field strength meters.

Its HEVC H.265 decoder displays 10-bit UHD 4K HDR services in real time, allowing installers to verify the viewing experience delivered to the end user. It includes constellation analysis, dynamic echo analysis, data logging, TS/ALP recording, HbbTV, webControl, 2.4 GHz WiFi analysis via dongle and optical power measurement. DVB-S2x, ATSC 1.0/3.0 and certain advanced measurement functions are optional.

The TV EXPLORER NG is particularly suitable for aerial installers, telecommunications technicians and systems integrators who need to identify losses, interference, echoes and modulation errors in terrestrial, satellite or CATV networks. It combines multi-standard diagnostics, more than four hours of battery life and measurement report generation within the range of Promax professional test equipment.

Reference: PROTVEXPLORERNG

-
+

Further information about the Promax TV EXPLORER NG Field Strength Meter

Practical applications of the Promax TV EXPLORER NG Field Strength Meter

Example 1. Diagnosing intermittent DTT reception faults in a communal distribution network

A telecommunications installer working in a building affected by pixelation can measure power, C/N, MER and error rates at the headend and subscriber outlets while examining the spectrum, constellation and dynamic echoes. The TV EXPLORER NG helps determine whether signal degradation originates at the aerial, amplification stage or distribution network and allows the technician to document the results with screenshots and measurement logs.

Example 2. Commissioning a combined satellite, cable and 4K television installation

In an apartment building, hotel or professional facility, the technician can test DVB-S/S2, DVB-C/C2 and DVB-T/T2 signals with a single instrument, configure systems using DiSEqC and dCSS/SATCR and verify UHD services with the built-in HEVC H.265 4K HDR decoder. This allows both the RF signal and the actual television service delivered to the end user to be checked without relying on several separate instruments.

Package contents of the Promax TV EXPLORER NG Field Strength Meter

  • 1 × Promax TV EXPLORER NG Field Strength Meter.
  • 1 × protective carrying bag with ergonomic support and shoulder strap.
  • 1 × TV EXPLORER NG hard carrying case.
  • 1 × quick-start guide.
  • 1 × calibration certificate.

Technical specifications of the Promax TV EXPLORER NG Field Strength Meter

Parameter Specification
Brand Promax
Model TV EXPLORER NG
SKU PROTVEXPLORERNG
Product type Universal multi-standard field strength meter and signal analyser
Recommended applications Installation, commissioning, maintenance and diagnosis of terrestrial TV, satellite, cable, radio and optical networks
Display 7-inch 16:9 colour TFT display with configurable multi-touch interface
Terrestrial standards DVB-T, DVB-T2 Base, DVB-T2 Lite and ISDB-T/Tb full-seg and 1seg
Analogue terrestrial TV PAL, SECAM and NTSC
Cable standards DVB-C, DVB-C2, J.83 Annex B and 16/64/256-QAM
Satellite standards DVB-S, DVB-S2 VCM/ACM/CCM and DSS
DVB-S2x Optional
Radio standards FM RDS and DAB/DAB+
Advanced radio measurements Advanced FM and DAB/DAB+ measurement functions are optional
ATSC standards ATSC 1.0 and ATSC 3.0 are optional
Video codecs MPEG-1, MPEG-2, MPEG-4/H.264 up to High Profile Level 5.2 and HEVC/H.265
HEVC/H.265 support 4K UHD Main Profile Level 5.1, 8-bit and 10-bit
Audio codecs MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus and Dolby AC-4
UHD viewing Native 4K HEVC H.265 decoding with 10-bit HDR support
HbbTV Discovery of URLs providing access to HbbTV online content
Terrestrial spectrum range 5 to 1000 MHz
Satellite spectrum range 950 to 2180 MHz
Noise floor 10 dBµV
Maximum reference level 130 dBµV
Dynamic range 60 dB
Resolution bandwidth 100 kHz
Spectrum span Arbitrary; 10, 20, 50, 100, 200 and 850 MHz; full span depending on the operating mode
DVB-T measurements Power from 20 to 130 dBµV, CBER, VBER, MER, C/N, erroneous packets and Link Margin
DVB-T2 measurements Power from 20 to 130 dBµV, CBER, LBER, MER, C/N, Link Margin, BCH ESR, LDP iterations and erroneous packets
DVB-C/C2 measurements Power from 20 to 130 dBµV, BER/CBER, LBER, MER, C/N, Link Margin, BCH ESR, LDP iterations and erroneous packets, depending on the standard
DVB-S measurements Power from 35 to 127 dBµV, CBER, VBER, MER, C/N and Link Margin
DVB-S2/S2x measurements Power from 35 to 127 dBµV, CBER, LBER, MER, C/N, BCH ESR, Link Margin and erroneous packets
Simultaneous measurements Power, C/N, MER and BER together with the parameters associated with the selected standard
Signal analysis functions Ultra-fast spectrum analyser, constellation diagram, dynamic echo analysis, StealthID, PLS, MER by carrier, MAX/MIN Hold and heat-map spectrum
Channel search functions Channel exploration, Blind Scan and automatic FM station discovery
Recording and reporting Screenshots, datalogger, transport stream recording and ALP recording
WiFi analysis 2.4 GHz analysis via WiFi dongle, including RSSI, access-point occupancy, SNR and noise
Optical measurements Optical power measurement across the full band
Selective optical meter Optional selective measurements at 1310, 1490 and 1550 nm
RF input Universal 75 Ω female BNC connector
Optical input Female FC/APC connector
Analogue audio/video input 3.5 mm jack
Headphone output 3.5 mm stereo jack
USB connections USB 2.0 Type-C master/device and USB 3.0 Type-A host
Ethernet RJ45 connection for webControl and remote commands
HDMI output HDMI 1.4b, up to 3840 × 2160 pixels at 30 Hz
Remote control Remote commands, webControl interface and SNMP via IP or WiFi
Internal storage 8 GB for measurement logs, screenshots and transport stream recordings; expandable via USB
Satellite control DiSEqC 2.x with DiSEqC 1.2 commands implemented
Single-cable systems dCSS/SCD2 according to EN 50607 and SATCR/SCD according to EN 50494
Battery life More than 4 hours with intelligent power management
Measurement reports Screenshots and datalogger functions for generating measurement reports



More Information
Hight 0.200
Length 0.600
Width 0.400
INSTALLER - System Field Meters
INSTALLER - Serie Professional
Color Black
DVB-C Yes
DVB-S Yes
DVB-T Yes
Fibra No
CCTV No
Product Brand Promax
Write Your Own Review
You're reviewing:Promax TV EXPLORER NG Field Meter
Your Rating
File Label Size Download
pdf Ficha Medidor de Campo TV EXPLORER NG de Promax 3.2 MB Download
