Proskit Digital Fiber Optic OTDR Reflectometer, OPM, VFL, OLS

SKU

PSKMT7620

Brands: Proskit

Availability: On request

Delivery: 1 to 7 days

€482.80 Tax included

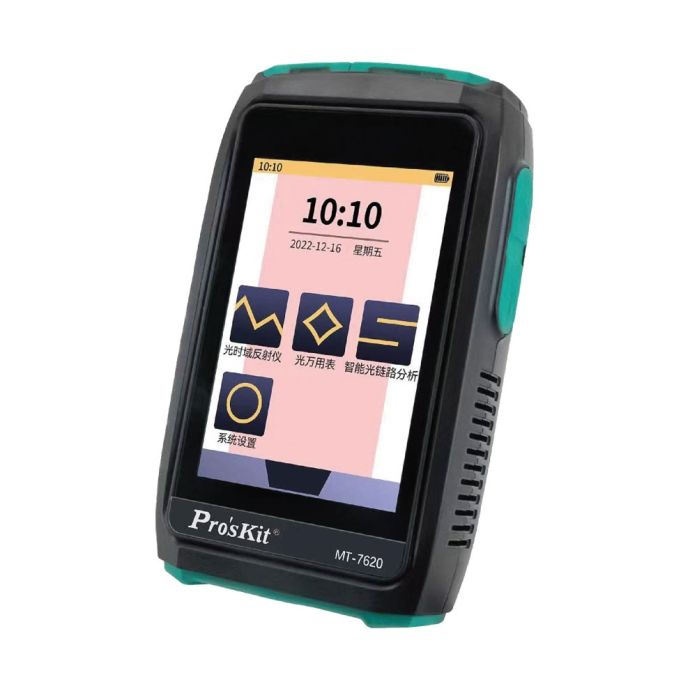

Proskit Digital Fiber Optic OTDR Reflectometer, OPM, VFL, OLS

This device is a very compact mini reflectometer that fits in the palm of your hand and will help you perform measurements in the optical time domain, OTDR, VFL, OLS, OPM. This reflectometer tests the integrity of a fiber cable and is used to build, certify, maintain and troubleshoot fiber optic systems.

Among its functions, we can find OTDR, VFL, OLS and OPM measurements.

Como reflectómetro óptico en el dominio del tiempo (OTDR) puede realizar medidas entre 0.1 y 80 km de distancia utilizando la longitud de onda 1550nm, permitiendo localizar fallos de fusión, ubicación de conectores y pigtails, pérdidas del cable y roturas de fibra, gracias a la luz reflejada que regresa al OTDR. El OTDR registra el tiempo que tarda la luz en volver reflejada y tambián la intensidad de la misma, permitiendo al instalador identificar la ubicación y la naturaleza de la discontinuidad.

As Optical Power Meter(OPM), it features 10 wavelengths(850-980-1270-1300-1310-1490-1590-1550-1557-1625-1650nm). Wide wavelength range. The optical power meter is used to measure the power output of fiber optic equipment, as well as the power or loss of an optical signal that is transmitted through a fiber optic cable.

Como localizador de fallos visual(VFL), de 10mW, cuanta con una fuente láser estable con modo intermitente y fijo. Este dispositivo tiene una alta precisión en sus medidas.

Como fuente de luz óptica(OLS), nos permite enviar una señal de referencia para que en el otro extremo se pueda detectar la potencia con el OPM (Optical Power Meter), entonces poder calcular las pérdidas del enlace de fibra óptica.

It has a 3.5” LCD touch screen, with ten levels of backlight adjustment. Its 200mAh and 3.7V Lithium battery is rechargeable through the USB-C port, allowing you to work comfortably without cables (the charger is not included).

The reflectometer has a power saving function, which turns off the display illumination if no operation is performed and automatic shutdown.

Accessories included:

Reflectometer
USB-C charging cable
Software CD
Cleaning stick
Manuak
Carrying bag and hanger

Details

Technical Specifications of the Proskit Digtal OTDR, OPM, VFL, OLS Fiber Optic Reflectometer

General characteristics
LCD	3.5 inch touch screen
USB	Type C
Storage	>500
Expandable external storage	U-Disk (Temporary Storage)
Sound	Passive electromagnetic buzzer (selectable)
Backlight	Ten levels of backlight adjustment
Energy save mode	Auto power off (adjustable)
Languages	EN/TW/CN
Battery	3.7V 2000mAh Lithium
Autonomy	Standby >6h, in use >4h
Work temperature	0ºC to 50ºC
Storage temperature	-20ºC to +70ºC
RH	<90%
Accessories	Charging cable (Type-C), CD, cord, cleaning stick, manual, carrying bag.
Size	112 x 76 x 38mm
Weight	±220g.
OLS function characteristics
Output power	> -5dBm *
Wavelength	1550nm ± 20nm
Modulation	270Hz, 1KHz, 2KHz y 1KHz y 2KHz + parpadeo

OTDR function characteristics
Dynamic range	20dB
Measurement range	0.1 - 80Km
Wavelength	1550nm±20nm
Connector	SC/UPC (same as OLS connector)
Pulse width	5ns - 20us
Measurement time	5 - 180s
Dead zone attenuation	12m
dead zone event	3m
Measurement mode	Real time, average, automatic
Sample points	up to 8000
Entry light detection	supports <10dB**
iOLA function	Yeah
OPM function characteristics
Display range	from -50dB to +26dBm
Calibrated wavelength	850, 980, 1270, 1300, 1310, 1490, 1550, 1577, 1625 and 1650nm
Wavelength, Frequency Identification	Supported
VFL function characteristics
Output power	10mW
Wavelength	650nm±20nm
fiber optic connector	2.5mm universal connector
* Adding a modulation affects the output power. ** Does not support wavelengths of 1550nm or 1577nm
