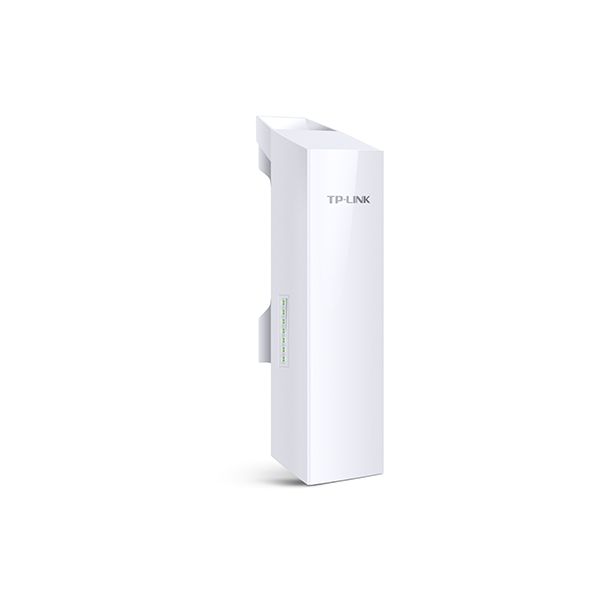

CPE510 Outdoor Wifi Access Point

CPE510, the cost-effective solution with professional performance.

What technical features does the CPE510 have?

• Data transmission greater than 15KM.
• Adjustable transmission power.
• Pharos centralized control system
• Passive PoE adapter.

What technical specifications does CPE510 have?

• Wireless performance:
• Wireless Speed ​​- 5GHz 300Mbps
• Transmit Power - 23dBm
• Antenna - 13 dBi
• MIMO - √
• Coverage - + 15km.
• Hardware:
• 560MHz Processor
• Memory 64MBDDR2
• Compatibility 802.11 a / n
• External Antenna Interface -
• Weatherproof enclosure - √ (IPx5)
• Dual Ethernet Port - √
• PoE Pass - √
• Earthing terminal - √
• Lightning protection via Ethernet cable - √
• ESD Protection - 15kV
• Lightning Protection - 6V
• Power Supplies -
• Software:
• Mode of Operation - AP / Client / Bridge / repeater.
• MAXtream TDMA Mode - √
• Bandwidth Channel 5/10/20 / 40MHz
• Transmission Power Control - Step 1 dBm
• Antenna Alignment - √
• Throughtput monitors - √
• Spectrum Analyzer - √
• Iperf- √ speed test tool
• Pharos Control Support - √
