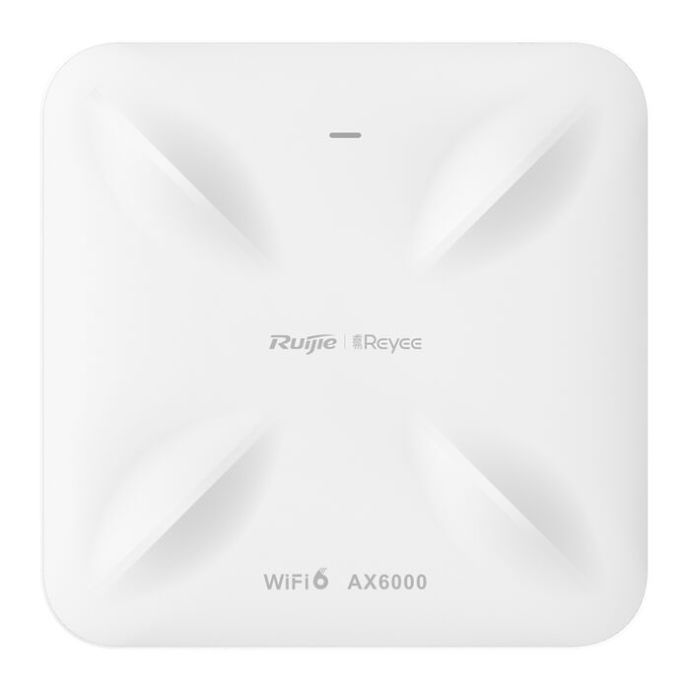

Reyee Wi-Fi 6 6000Mbps Indoor Access Point with 2 × 2.5 Gigabit PoE Ports

SKU
RG-RAP2260(H)
Brands: Reyee
€237.23
Tax included
% Discount for professionals
Reyee
Availability: In stock
5 days

Reyee High-Density Wi-Fi 6 AX6000 Multi-G Ceiling Access Point

The Reyee RG-RAP2260(H) is a high-end Wi-Fi 6 AX6000 access point designed for high-density indoor wireless networks. It delivers a combined wireless data rate of up to 5,950 Mbps and features 4×4 MU-MIMO on both the 2.4 GHz and 5 GHz bands, providing fast and stable connectivity in environments with many users.

Its eight built-in omnidirectional antennas, OFDMA, beamforming and support for channel widths of up to 160 MHz enable it to manage up to 512 associated clients. It is particularly suitable for installers deploying professional Wi-Fi access points in auditoriums, hotels, training centres, open-plan offices and busy commercial premises.

The access point includes two 2.5GbE Multi-Gigabit RJ45 ports, providing a combined wired capacity of up to 5 Gbps. It supports Reyee Mesh, 802.11k/v/r roaming, Layer 2 and Layer 3 roaming, AI roaming, and local or remote management through Ruijie Cloud. It is a complete solution for new installations, network expansions and upgrades using Reyee networking equipment, rather than a dedicated replacement part.

To use the full 4×4 radio configuration, the RG-RAP2260(H) must be powered through IEEE 802.3bt PoE++ or 48 V DC. When powered through IEEE 802.3at PoE+, radio transmission and reception are limited to 2T2R on both bands. The power adapter is not included.

Reference: RG-RAP2260(H)

-
+

Extended information about the Reyee RG-RAP2260(H) Wi-Fi 6 AX6000 Indoor 2×2.5 Gigabit PoE Access Point

Practical applications of the Reyee RG-RAP2260(H) Wi-Fi 6 AX6000 Access Point

Example 1. Wi-Fi upgrade in an auditorium or training centre

A network integrator can replace older access points with the RG-RAP2260(H) in rooms with a high concentration of laptops, tablets and smartphones. Its dual 4×4 radio, OFDMA and Multi-Gigabit ports help distribute traffic from video conferencing, online training platforms and cloud services. IEEE 802.3bt PoE++ power and 2.5GbE network equipment should be provided to maintain its full performance.

Example 2. Coverage expansion in a hotel or multi-area office

When cabling every new location is not practical, an installer can add another access point using Reyee Mesh and maintain a centrally managed wireless network. IEEE 802.11k/v/r, Layer 2, Layer 3 and AI roaming help users move between different areas while remaining connected. Ruijie Cloud provides remote configuration, monitoring and maintenance.

Package contents of the Reyee RG-RAP2260(H) Wi-Fi 6 AX6000 Access Point

  • 1 × RG-RAP2260(H) access point
  • 1 × mounting bracket
  • 4 × ST4.2 × 20 mm cross pan head screws
  • 4 × 9 × 25.4 mm plastic expansion anchors
  • 1 × user manual
  • 1 × warranty card
  • 1 × security lock key

Technical specifications of the Reyee RG-RAP2260(H) Wi-Fi 6 AX6000 Access Point

Parameter Specification
Brand Reyee
Model RG-RAP2260(H)
Product type Indoor ceiling or wall access point
Wireless standards IEEE 802.11a/b/g/n/ac/ax
Wi-Fi technology Wi-Fi 6 AX6000
Frequency bands 2.4 GHz and 5 GHz
6 GHz radio No
Radio design Dual radio with 8 spatial streams
MU-MIMO 4×4 on 2.4 GHz and 4×4 on 5 GHz
Maximum combined data rate 5,950 Mbps
2.4 GHz data rate Up to 1,147 Mbps
5 GHz data rate Up to 4,803 Mbps
2.4 GHz channel width Auto, 20 and 40 MHz
5 GHz channel width Auto, 20, 40, 80 and 160 MHz
Antennas 4 built-in omnidirectional antennas per band
Antenna gain 3 dBi on 2.4 GHz and 4 dBi on 5 GHz
Wireless technologies OFDMA, MU-MIMO, beamforming, WMM and DFS
Maximum associated clients 512 with both bands enabled
Recommended clients Wi-Fi 6/160 MHz: 130; Wi-Fi 6/80 MHz: 120; Wi-Fi 5: 80
Maximum number of SSIDs 8
Network ports 2 × RJ45 10/100/1000/2500BASE-T
Combined wired capacity Up to 5 Gbps using both 2.5GbE ports
Operating modes Access point, routing and wireless repeater
Mesh technology Reyee AP Mesh
Roaming IEEE 802.11k/v, IEEE 802.11r, Layer 2, Layer 3 and AI roaming
VLAN IEEE 802.1Q
Wireless security WPA-PSK, WPA2-PSK, WPA/WPA2-PSK, OWE, WPA3-SAE and WPA2/WPA3
Authentication Captive portal and IEEE 802.1X
Management eWeb, Ruijie Reyee App, Ruijie Cloud and SNMP
Power supply IEEE 802.3at PoE+, IEEE 802.3bt PoE++ or 48 V DC/1 A
PoE+ limitation With IEEE 802.3at, both radios are limited to 2T2R transmission and reception
Maximum power consumption 40 W
Power adapter Not included
Dimensions 230 × 230 × 49.5 mm, excluding mounting bracket
Weight ≤1.36 kg, excluding packaging
Colour White
Operating temperature 0 to 40°C
Operating humidity 5% to 95% RH, non-condensing
IP rating No IP rating
Mounting options Ceiling or wall
Controls 1 × reset button
Indicators 1 × system status LED
Memory 256 MB flash and 512 MB DDR3 RAM
Certifications CE, FCC, CB, ISED, cTUVus and RoHS



More Information
More Information
EAN 6971693273610
Hight 0.000
Length 0.000
Width 0.000
REDES - System WIFI6
REDES - SERIE 2 Puertos
Color White
Network Equipment Access Point
Ports 2
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Product Brand Reyee
