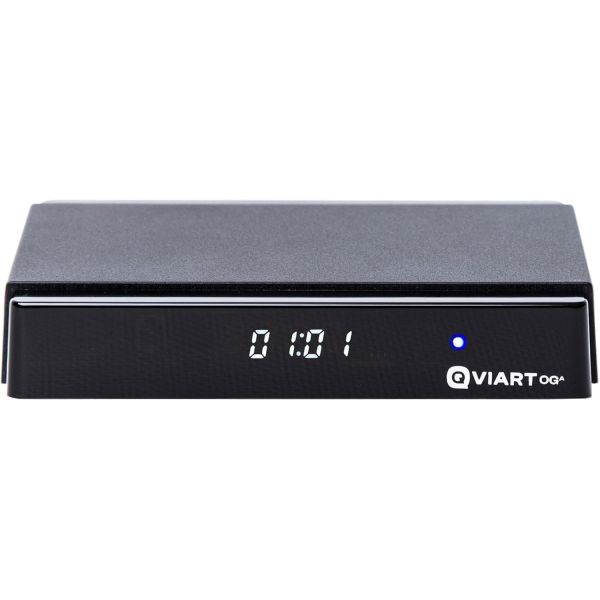

Extended information about Qviart OGA Android IPTV Receiver
Practical applications of the Qviart OGA Android IPTV Receiver
Example 1. Secondary TV setup in a bedroom without an aerial socket:
A user wants to install a TV in a guest bedroom where there is no conventional coaxial aerial socket. To solve this, they connect the Qviart OGA to the home WiFi network and link it to the TV via HDMI. They use the native QTV Online TV app to tune digital terrestrial television (DTT) channels through a legal and free IPTV list, allowing them to watch live TV smoothly, without any building work in the room, while also controlling their favourite streaming platforms from the same remote control.
Example 2. Managed IPTV installation with a customised interface:
In managed installations, the Qviart OGA is useful thanks to its options for customising the menu, app order, boot image or video, and direct start in TV mode. This allows the installer or operator to deliver an Android OTT receiver with a more guided user experience, especially when a clear Spanish-language interface adapted to the service is required.
Box contents of the Qviart OGA Android IPTV Receiver
- Qviart OG A receiver
- Remote control
- User manual
- HD cable
- Power supply
- IR extender
- Batteries
Technical specifications Qviart OGA Android IPTV Receiver
| Feature | Detail |
|---|---|
| Brand | Qviart |
| SKU | QVIARTOGA |
| Product type | IPTV receiver / Android TV box / OTT multimedia receiver |
| Operating system | Android 9, according to product information |
| Processor | Amlogic S905X3 Quad-Core ARM Cortex-A55 |
| Processor frequency | Indicated as up to 2.0 GHz; website datasheet: 1908 MHz |
| RAM | 2 GB DDR4 |
| Internal storage | 16 GB flash |
| Resolution / video | 4K UHD 60 fps 10 bit, according to datasheet |
| Codecs / listed compatibility | H.265, VP9, HDR10+, HLG |
| IPTV app | QTV Online TV preloaded, according to commercial information |
| WiFi | Dual band 2.4 GHz + 5 GHz |
| Wired network | Ethernet LAN 10/100 Mbps |
| Bluetooth | Bluetooth 5.1 |
| USB | USB 3.0; graphic datasheet shows two side USB ports |
| Video output | HD OUT / HDMI |
| Digital audio | SPDIF |
| IR port | Yes, with IR extender included |
| Power supply | DC IN input with power supply included |
| Colour | Black |
| Updates | OTA updates |
| Recommended installation | New IPTV, OTT and Android multimedia installations |
| Spare part | No; it is a complete receiver for installation or functional replacement of another receiver |
| Dimensions | Not confirmed in the provided documentation |
| EAN | Not confirmed |
| EAN | 4897105080374 |
|---|---|
| Hight | 0.060 |
| Length | 0.190 |
| Width | 0.120 |
| RECEIVERS - System | Android |
| Tuner | IP |
| Definition | Ultra HD 4K |
| Video Outputs | HDMI |
| Power supply | 12 Vdc |
| Usar stock disponible | No |
| Product Brand | Qviart |
