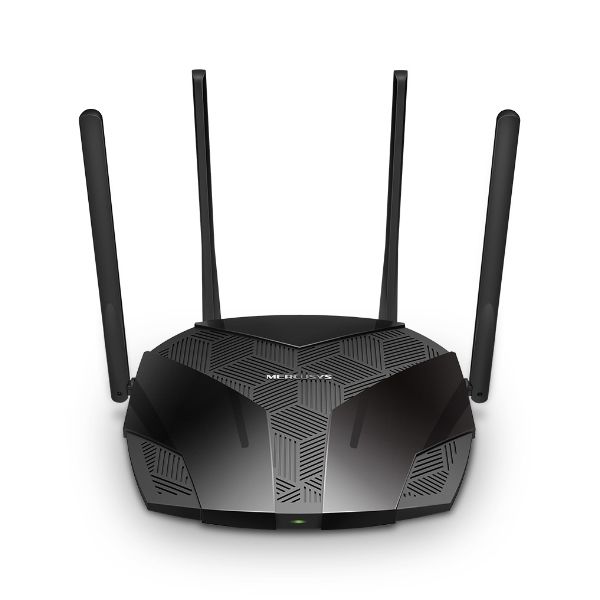

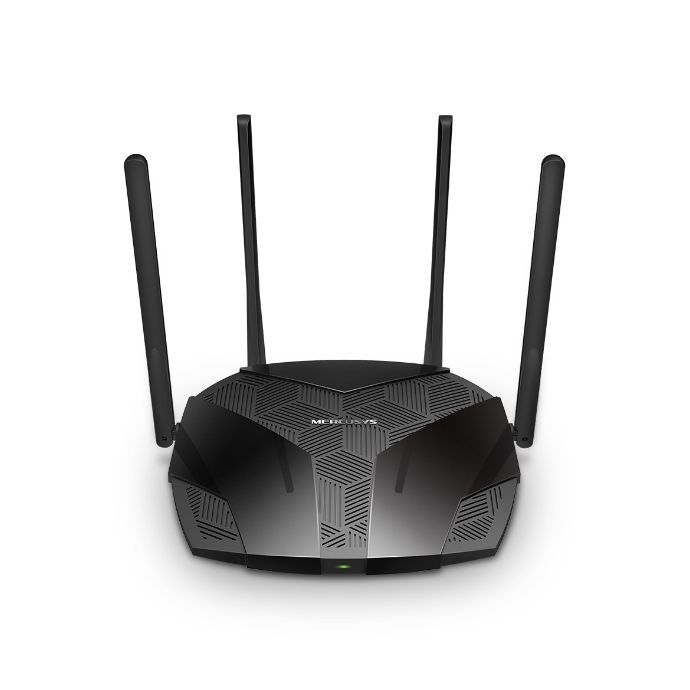

Mercusys AX3000 Dual Band WiFi6 Router

SKU
MERMR80X
Brands: Mercusys
Availability: On request
1 to 7 days
€60.08 Tax included
-
+

Mercusys AX300 MR80X Dual Band Wi-Fi6 Router

This Mercusys MR80X router reaches speeds of up to 3Gbps in browsing, streaming and everything at the same time. The MR80X achieves optimal WiFi6 speeds.

Its powerful Qaulcomm WiFi6 chipset combines a 64-bit dual-core CPU and a 12-thread network processor, enabling stable connections of up to 256 devices.

It has 4 external antennas of 5dBi each with integrated signal amplifiers. These antennas have high multidirectional gain with Beamforming, which makes this router go much further in terms of coverage. Beamforming in antennas improves the signal-to-noise ratio of received signals, eliminating unwanted interference. The result of this is stronger, faster and more reliable wireless communications.

The router has 4 RJ45 ports (1 x Gigabit WAN and 3 Gigabit LAN). We double the bandwidth with 160MHz channels, achieving speeds of up to 3Gbps, being able to experience downloads of large files in minutes, up to 2.5 times faster than other similar routers.

The MR80X supports OFDMA and MU-MIMO1, allowing multiple clients to transmit at the same time, without affecting performance. It is ideal when we have environments with a lot of traffic to manage.

In addition, it integrates the latest WPA3 security standard, which protects your devices and private information against brute force attacks.

With this router we reduce the energy consumption of your mobile devices during data transmissions, extending the battery life of your devices.

Technical Specifications of the Mercusys AX300 MR80X Dual Band Wi-Fi6 Router

Mercusys MR80X Specifications

WAN connection
Ethernet WAN: Yes
DSL WAN: No
SIM card slot: No
WAN connection type: RJ-45
Wireless LAN Features
Wi-Fi Band: Dual band (2.4 GHz / 5 GHz)
Wi-Fi Standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max.): 3000 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 2402 Mbit/s
WLAN data transfer rate (second band): 574 Mbit/s
Connection
Ethernet: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN, data transfer speed: 10,100,1000 Mbit/s
Wiring technology: 10/100/1000Base-T(X)
Network standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding: Yes
Port triggering: Yes
Number of guest networks (2.4 GHz): 1
Number of guest networks (5GHz): 1
Wireless radio: Yes
VPN Server: OpenVPN, PPTP
VPN support: OpenVPN, PPTP supported
Mobile networks
3G: No
4G: No
5G: No
Ports and Interfaces
Ethernet LAN (RJ-45) number of ports: 3
USB port: No
DC Input Plug: Yes
Administration Features
Wi-Fi Multimedia (WMM)/(WME): Yes
Restore button: Yes
WPS Push Button Security: Yes
Security
Supported security algorithms: WEP, WPA, WPA2, WPA3
Firewall: Yes
Security with firewalls: SPI Firewall, IP and MAC Address Binding
Guest access: Yes
DMZ Support: Yes
Network Address Translation (NAT): Yes
NAT, functionality: Port Forwarding, Port Triggering, UPnP, DMZ
Protocols
DHCP, client: Yes
DHCP, server: Yes
Universal Plug and Play (UPnP): Yes
Design
Product color: Black
LED indicators: LAN, WAN
Product Type: Desktop Router
Packaging content
Cables included: LAN (RJ-45)
AC adapter included: Yes
Quick installation guide: Yes
Antenna
Antenna Design: External
Antenna gain (max): 5 dBi
Number of antennas: 4
Power control
Power: Alternating current
External power adapter: Yes
Environmental conditions
Operating temperature range: 0 - 40°C
Relative humidity range for operation: 10 - 90%
Relative humidity range during storage: 5 - 90%
Weight and measurements
Width: 208.8mm
Depth: 171.6mm
Height: 41.7mm

More Information
System WIFI6
SERIE Gibabit Ethernet
Color Black
Network Equipment Router
Ports 4
Data Speed Gigabit (10/100/1000Mbps)
PoE No
Product Brand Mercusys
