SFP Fiber Optic Module LC/UPC Omada Singlemode from Tp-Link

SKU

TL-SM311LS

Brands: Tplink

Availability: In stock

Delivery: 24/48 Hours

€17.84 Tax included

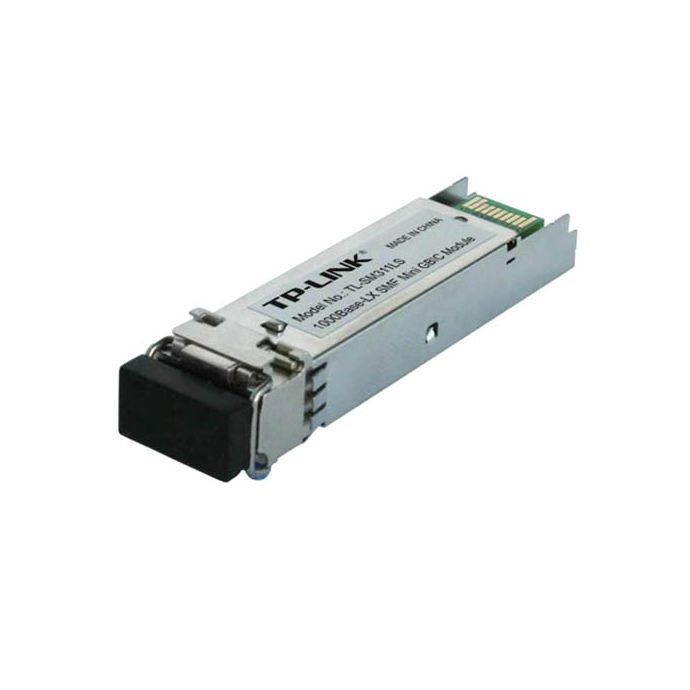

Tp-Link Single Mode LC/UPC Fiber Optic SFP Module

These modules serve to extend the transfer distance when connected to WEB managed switches. The distance can be extended several kilometers, satisfying the needs of any local network.

This connector is of the 9/125 single-mode LC/UCP type and can reach up to 10km of transmission. It has a wavelength of 1310nm and a data transfer rate of 1.25GBps. Its operating voltage of 3.3V.

This adapter is compatible with T3700, T2700, T2600, T2500, T1700, T1600, T1500 series, and 2/3/5 and MC220L switches.

The adapter measures 6x1.5x1.3cm and weighs 110g.

Details

Technical Specifications of Tp-Link Single Mode LC/UPC Fiber Optic SFP Module

PACKAGE CONTENTS
Package Contents	• TL-SM311LS SFP module • Installation guide

PACKAGE CONTENTS

Package Contents

• TL-SM311LS SFP module

• Installation guide

HARDWARE FEATURES
DDM	Yes
SFP-MSA	Yes
hot swappable	Yes

MEDIA CONVERTER AND MODULE
Standards and Protocols	IEEE 802.3z, CSMA/CD, TCP/IP
Wavelength	1310nm
Power supply	3.3V
Security and Emission	FCC, CE
Wire	single mode fiber
Fiber Type	9/125 μm singlemode
Max Cable Length	20km
data rate	1.25Gbps
Type of Ports	LC/UPC
Atmosphere	Operating temperature: 0℃~70℃ (32℉~158℉) Storage temperature: -40℃~80℃ (-40℉~176℉) Operating humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
