Single Family Extra Mini 5-Wire Audio Kit (Entrance panel and telephone) Comelit

Extra Mini Single Family 5-Wire Audio Kit (Entrance panel and telephone) KAE5061
The kit comes with everything you need to install an intercom in a home. Ideal for single-family homes. This telephone kit is part of the MINI series for a traditional system with electronic call and 1 door-release button.

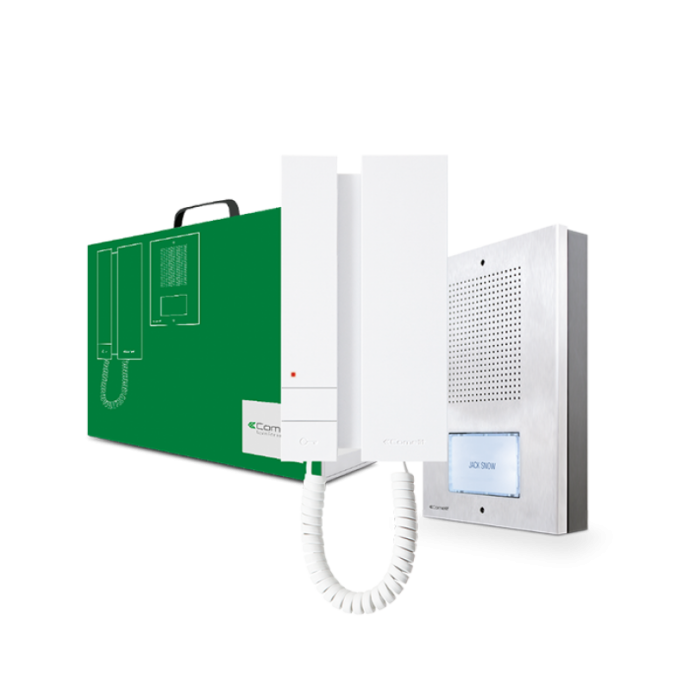

The content of the package is as follows:
- 1 Mini 2701W series intercom
- 1 Transformer 1200
- 1 EXTRA series door unit 1 call button ET5001
The kit can be expanded with another intercom. The door unit can be wall mounted or flush mounted with the accessories supplied with the kit.
Technical Specifications 5-Wire Single Family Extra Mini Audio Kit (Entrance panel and telephone) KAE5061
KIT component specification:
- EXTRA SERIES 4 + N PUSH BUTTONS KIT. 1 BUTTON ET5001
- EXTRA Series Audio Door Station with 1 Call Button
- Stainless steel cover and blue backlit name tag
- Complete with flush mounting box and wall bracket
- Dimensions 95 x 135 x 6.5mm (flush mount) - 25mm (wall mount)
- 5-wire wiring.
MAIN FEATURES
Monoblock type
Audio system Yes
Flush mount Yes
Wall mount Yes
12 VDC power supply
Maximum current draw (mA) 267
Terminals ~ * ~ 2 3 4 S1 S2
Push button call Yes
Total pushbuttons 1
Microphone volume control Yes
Speaker volume control Yes
Operating temperature (° C) -25 ÷ 55
Blue Led Backlight Color
FUNCTIONS
Lock-release button function Yes
COMPATIBILITY
Traditional system Yes
1-BUTTON MINI INTERCOM. TRADITIONAL 2701W
- MINI series intercom for the traditional system with electronic call, door opening button and
- supplementary button for additional services.
- Adjustment of call volume and privacy using the 3-position selector.
- Activation of privacy is indicated by a red indicator.
- Dimensions: 105x191x28mm
MAIN FEATURES
Audio system Yes
Wall mounting Yes
Table mount Yes
White color
Total pushbuttons 2
FUNCTIONS
Actuator control function Yes
Privacy function: Yes
Electronic ringtone Yes
Lock-release button function Yes
REGULATIONS
Speaker volume control Yes
Microphone volume control Yes
Ringtone volume control Yes
GENERAL DATA
Height (mm) 190
Width (mm) 103
Depth (mm) 30
COMPATIBILITY
Traditional system Yes
TECHNICAL CHARACTERISTICS
Supply voltage (VDC) 15 ÷ 16
Consumption in standby (mA) 0.25
Consumption during call (mA) 0.42
Consumption during communication (mA) 0.35
4mm microphone, omni-directional
Operating temperature (° C) -5 ÷ 40
Weight (g) 260
Terminals S 2 3 4 P1 P2
230VAC/12VAC/15VA 1200 TRANSFORMER
- Transformer with 230 VAC primary, 12 VAC / 15 VA secondary for continuous use
- Dimensions: 53x95x65 mm (3 DIN modules).
EAN | 8023903324082 |
---|---|
Color Portero/Videoportero | Solo Audio |
Type | Complete Kit |
Sistema Portero/Videoportero | 4+N |
Product Brand | Comelit |
Icon | Label | Size | Download |
---|---|---|---|
|
Ficha Técnica Kit Audio 5 hilos Extra Mini Unifamiliar | 1.1 MB | Download |
