Switch 16 Ports RJ45 Gigabit Desktop Not Managed D-Link

SKU

DGS-1016S

Brands: D-Link

Availability: On request

Delivery: 1 to 7 days

€82.63 Tax included

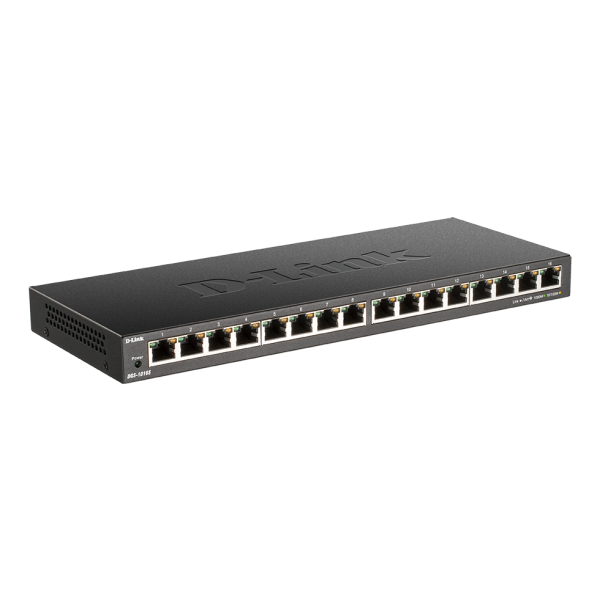

D-Link DGS-1016S 16 Port Gigabit Desktop Unmanaged Switch

16-port high speed Gigabit (1000 Mbps) desktop switch for high data demand applications, ideal for homes, small and medium-sized businesses that need a fully plug & play, unmanaged switch. Easy to install, without the need for software or configuration.

Low-profile, fanless, slimline metal housing for low-power, quiet operation for desktop placement. The LEDs of each port allow you to quickly verify if any connection fails, and the transmission speed (10/100/1000 Mbps). The switch will automatically reduce power consumption when low traffic is detected.

Details

16-Port Gigabit (10/100/1000 Mbps) Desktop Switch, Not Managed

What technical specifications does the D-Link DGS-1016S Switch have?

Device interfaces: 16 10/100/1000 Mbps LAN ports
Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.3x Flow Control, IEEE 802.1p QoS, IEEE 802.3az Low Power Ethernet (EEE).
Switching capacity: 32 Gbps
Advanced features:
- Automatic MDI/MDIX crossover for all ports
- Secure Store and Forward Scheme
- Full / Half-duplex for Ethernet / Fast Ethernet speeds
- Compatible 9,216 byte jumbo frames
- Back pressure at half-duplex operation
- Wire-speed reception and transmission
- Auto-negotiation for each port
- QoS Quality of Service (8 queues, strict mode)
Data transfer rates:
- Ethernet: 10 Mbps (half-duplex), 20 Mbps (full-duplex)
- Fast Ethernet: 100 Mbps (half-duplex), 200 Mbps (full-duplex)
- Gigabit Ethernet: 2000 Mbps (full-duplex)
Transmission method: Save and send
MAC address table size: 8K entries
Packet filtering / forwarding rates:
- Ethernet: 14,880 pps per port
- Fast Ethernet: 148,800 pps per port
- Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer: 512 KB per device
LED indicators:
- Per port: Link / Activity / Speed
- By device: Power
Media interface sharing: Auto MDI / MDIX tuning for all ports
Dimensions: 280 x 110 x 25 mm
Weight: 0.77 kg
Power input: 12V, 1A
Energy consumption:
- Standby: 3.37 W
- Maximum: 8.89 W
Temperature:
- Operation: 0 to 40 ºC
- Storage: -40 to 70 ºC
Humidity:
- Operation: 10% to 90% non-condensing
- Storage: 5% to 95% non-condensing
MTBF: 564,658 hours
Maximum heat dissipation: 30.32 BTU/h
Emission (EMI): CE class A, FCC class A, ICES 003, RCM
Safety: LVD
