Switch 4 Ports 1GB POE + 2 Uplink 1Gb + 1 SFP 54W by Reyee

SKU
RG-ES206GS-P
Brands: Reyee
Availability: Out of stock
1 to 7 days

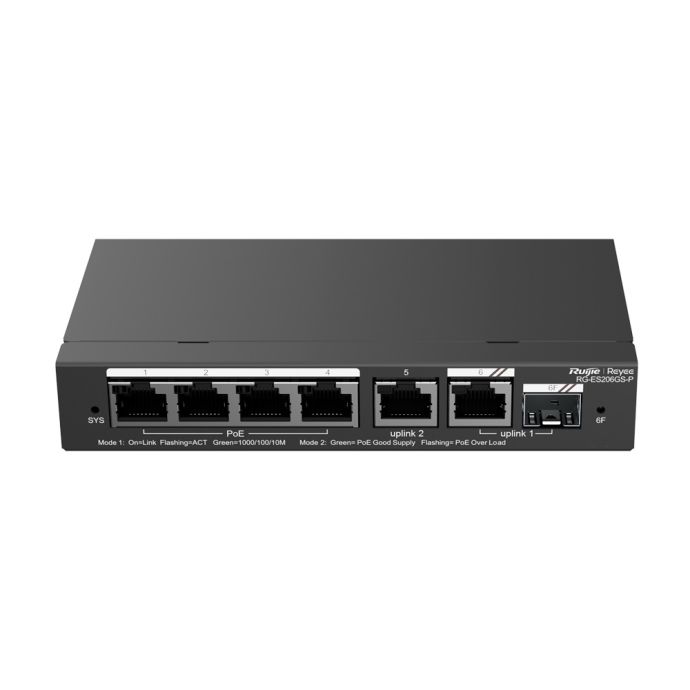

Manageable Switch with 4 PoE Ports, 2 Uplink and 1 SFP 54W Reyee RG-ES206GS-P

Reyee RG-ES206GS-P it's a switch gestionable Gigabit designed specifically for networks CCTV , access points, interconnection of small headquarters or deployments where PoE is combined with high capacity links. Offers 4 puertos PoE/PoE (802.3af/at) with a total budget of 54W , enough to power IP cameras, WiFi APs, IP phones or other network devices.

It also has 2 puertos RJ45 Gigabit uplink and 1 SFP combo port , which allow you to connect fiber optics, routers or distribution switches without saturating the camera traffic. This makes it a very versatile switch both in advanced domestic installations and in small shops and offices.

The team integrates automatic loop detection (Loop Detection) , essential protection to prevent network outages when accidental traffic return occurs. Upon detecting the loop, the switch isolates the affected port to maintain the stability of the entire network. Also includes Port Isolation DHCP Snooping and PoE Watchdog .

Your design without fan , very quiet, it is ideal for installations in indoor environments where discretion and reliability are required. Likewise, it offers complete management via Web/Cloud/App , allowing the installer to remotely control the network, restart PoE ports or receive alerts in real time.

Reference: RG-ES206GS-P

Technical specifications Switch 4 Ports 1GB POE 2 Uplink 1Gb 1 SFP 54W by Reyee

Practical applications of the Reyee RG-ES206GS-P Switch (4 PoE SFP Cloud Management)

Practical case 1: CCTV installation in a home or business

This switch is perfect for video surveillance projects with up to 4 PoE cameras , providing power and connectivity to each device. The 2 uplinks Gigabit 1 SFP They allow you to connect the switch directly to the NVR and the router, or send the signal over long distances via fiber. Thanks to PoE Watchdog If any camera is blocked, the switch automatically restarts it, reducing maintenance trips. For sensitive networks, the function Port Isolation prevents cameras from exchanging traffic with each other.

Case study 2: Backbone network in small offices with guaranteed stability

In office environments with WiFi access points, IP phones or biometric readers, this switch offers a combination of PoE trunk uplinks and cloud management ideal for growing without complications. The function Loop Detection detects and blocks accidental loops (very common when users connect a patch cord incorrectly), preventing the entire network from collapsing due to human error. Furthermore, the design fanless allows it to be installed in work rooms without generating noise.



Category Specification
Brand Reyee
Interface 4 × Puertos PoE RJ45 10/100/1000 Mbps1 × RJ45 Gigabit1 × RJ45 Combo Gigabit1 × SFP Combo Gigabit
Port speed 10/100/1000 Mbps
PoE 4 PoE Ports 802.3af/atUp to 30W per port 54W PoE total
Extended PoE Until 250 m , configurable on all ports
Advanced Features Loop DetectionHasta 16 VLANPort IsolationDHCP SnoopingPoE Watchdog
Management Web / Cloud / APP
Feeding Adapter 54V/1.1A
Operating temperature 0 ºC ~ 40 ºC
Dimensions 78 × 26 × 148 mm
Weight 0.79kg (with package)
More Information
EAN 6971693275812
Hight 0.250
Length 0.060
Width 0.250
REDES - System POE+
REDES - SERIE 4 Ports
Color Black
Network Equipment Switch
Ports 4
Data Speed Gigabit (10/100/1000Mbps)
PoE Yes
Usar stock disponible No
Product Brand Reyee
Write Your Own Review
You're reviewing:Switch 4 Ports 1GB POE + 2 Uplink 1Gb + 1 SFP 54W by Reyee
Your Rating
File Label Size Download
pdf Ficha Técnica Switch 4 Puertos 1GB POE + 2 Uplink 1Gb + 1 SFP 54W de Reyee 247.9 KB Download
pdf Declaración de Conformidad RG-ES206GS-P 973.8 KB Download
