Switch 5 Ports 10/100Mbps 4 POE 60W from Hikvision

SKU

DS-3E1105P-EI

Brands: Hikvision

Availability: On request

Delivery: 1 to 7 days

€41.76 Tax included

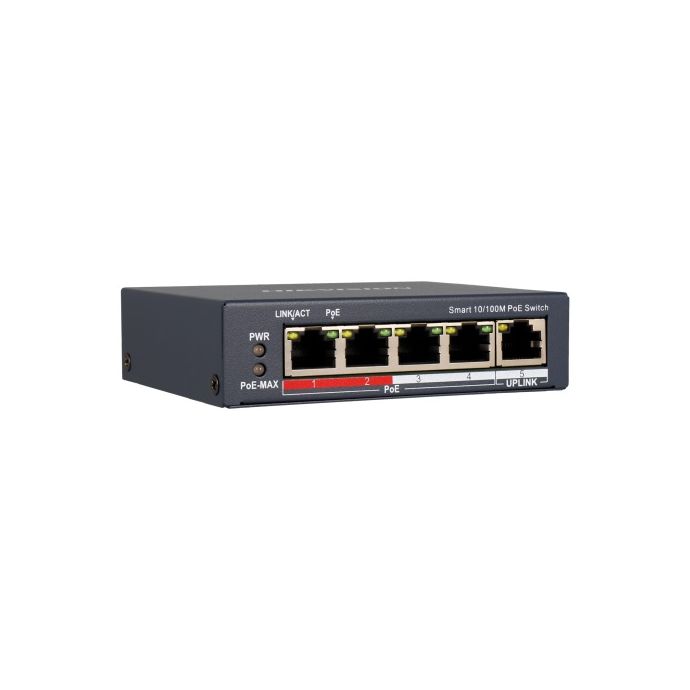

5-Port Switch with 4 100Mbps POE RJ45 Ports from Hikvision

The new series of Hikvision switches from the Pro range provide you with the integration between switechs and Hikvision IP devices with the Hik-ProConnect management platform, they are compatible with the HikCentral platform and iVMS4200, improving the network management experience . This switch is the perfect solution for use with surveillance systems. You will be able to monitor, deploy and expand your surveillance system at any time and place through software.

The switch has 5 ports of which 4 of them are POE with a port speed of 10/100Mbps, through the IEEE802.3af standard. It has an Uplink port with 10/100Mbps speed. In case of congestion, the first two ports are POE priority.

It has various functions, including: viewing the network topology, monitoring the network status, restarting ports, receiving alarms about port events, real-time bandwidth consumption statistics and electricity consumption, reducing downtime. installation, maintenance costs. Its maintenance is simple thanks to remote management.

Its casing is metal, ideal to avoid overheating. They come in black and have dimensions of 121.1 x 83.1 x 27.6 mm. It is very light, only 200g, so it can be installed on a wall or desk.

Details

Technical Specifications of the 5-Port Switch with 4 100Mbps POE RJ45 Ports from Hikvision

Grid

Port number: 4 x 100 Mbps RJ45 PoE ports and 1 x 100 Mbps RJ45 network port.
Port Type: RJ45 port, full duplex, adaptive MDI/MDI-X
Standard: IEEE 802.3, IEEE 802.3u and IEEE 802.3x
Forwarding Mode: Store and Forward Switching
Working mode: Standard mode (default), Extended mode
High Priority Ports: Ports 1 and 2
Long Distance Ports: Transmission Ports 1 to 4
Address table: MAC 2K
Switching capacity: 1 Gbps
Packet forwarding rate: 0.744 Mpps
Internal cache: 768 Kbits

PoE Power

PoE Standard: Ports 1 to 4: IEEE 802.3af, IEEE 802.3at
PoE Power Connector: Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power simultaneously.
PoE Port: Ports 1 to 4
max. power port: 30W
Power Estimate: PoE 60W

Software Features

Device maintenance: Support remote upgrade, default parameter recovery, log display, configure basic network parameters.

Typology display: Support typology display.
Port Configuration: Support Speed, Flow Control and Switch Configuration
PoE Function: IEEE 802.3at/af device provides power supply.
Device Status Alarm: Supports device status, PoE_MAX and PoE status alarm.
Network Management – Supports client management.
Port Statistics: Port support real-time rate statistics transmission/reception, 7 days maximum rate statistics transmission/reception.

General

Material: Metal, fanless design
Net weight: 0.22kg
Dimensions (L × H × D): 105 mm × 27.6 mm × 83.1 mm
Operating temperature: 0ºC to 40ºC
Storage temperature: -40ºC to 85ºC
Operating humidity: 5% to 95% (non-condensing)
Storage humidity: 5% to 95% (non-condensing)
Power Supply: 48V DC, 1.35A
max. power consumption: 65W
Power supply: 65W
