DiSEqC for 2 TWIN LNBs with 4 Inputs and 2 Outputs

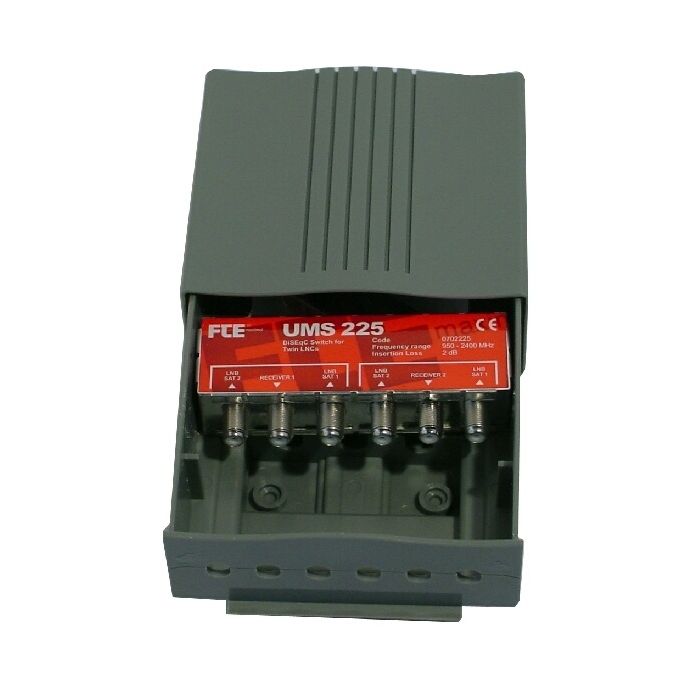

DiSEqC 1.0 Outdoor switch FTE UMS 225 for 2 Twin LNBs, 2 outputs
DiSEqC 1.0 switch with 4 inputs and 2 outputs, to connect 2 Twin LNBs up to 2 satellite receivers. Includes outdoor housing to install on the mast/antenna support. It is basically two 2x1 DiSEqC united in the same box.
This switch allows connecting the outputs of 2 Twin LNBs to the four DiSEqC inputs, and the two diseqc outputs to each receiver (two). In this way, the two receivers can see all the programming of both satellites without interfering with each other.
DiSEqC 1.0 switch to connect two satellites to two receivers, 2 switches in 1
What technical specifications does the DiSEqC FTE UMS 225 have?
- Model: UMS 225
- Code: 0702225
- Description: 2 LNB Twin switch with 4 inputs
- Frequency range: 950 - 2400 MHz
- Number of entries: 2 + 2
- Number of outputs: 2
- Insertion loss: <2 dB
- Decoupling between inputs: >25 dB
- Switch mode: DiSEqC 1.0
- Pass current: 450 mA
- Connectors: F Female
- Installation type: Mast installation
|System||DTT & SAT|
|TV-SAT Distribution Equipment||DiSEqC|
|TV-SAT Distribution Connection||F|
|Insertion Loss (dB)||2|
