Reyee Managed Switch with 5 Gigabit Ports, 4 PoE/PoE+ Ports, 2 SFP Ports and 60 W PoE Budget

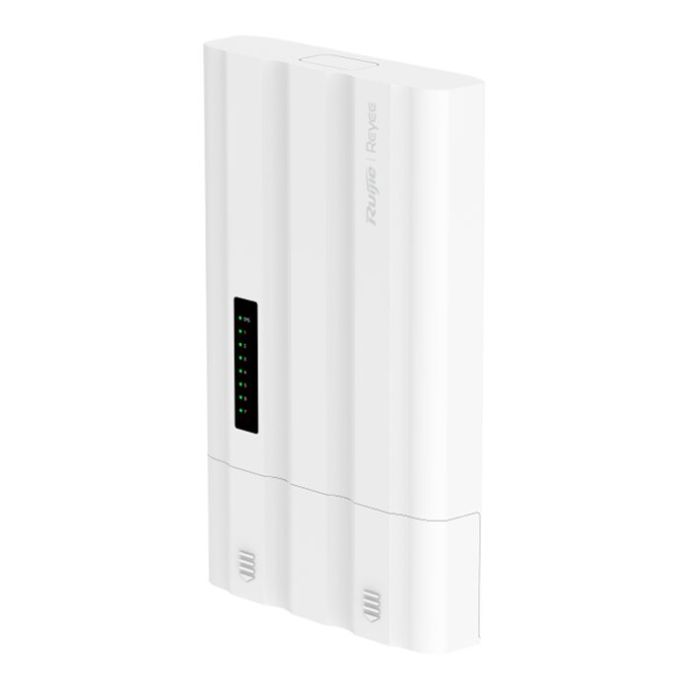

7-Port Outdoor Gigabit Switch with AC Input Reyee RG-ES207GS-AC-OD
The Reyee RG-ES207GS-AC-OD is a managed outdoor switch combining network electronics, an integrated AC power supply, IP65 protection, and passive cooling. Its all-in-one design simplifies installation and removes the need for a separate weatherproof enclosure, external power adapter, or independent cooling fan.
It provides 5 Gigabit RJ45 ports, four of which support IEEE 802.3af/at PoE and PoE+, with a shared 60 W PoE budget. It can power IP cameras, wireless access points, and other compatible devices through the same Ethernet cable and can be installed with suitable outdoor CAT6 network cable.
Its 2 Gigabit SFP ports support fibre-optic uplinks and redundant network topologies using ERPS. It is particularly suitable for CCTV installers working on perimeters, car parks, public areas, or distributed facilities. This model is designed for new installations, extensions, and complete network upgrades using professional PoE switches.
The integrated input accepts 100–240 V AC through a terminal block, allowing direct connection to a 220 V supply without an external transformer. Management is available through eWeb, Ruijie Cloud, and the Reyee App. The 60 W budget is shared across the four PoE ports, and SFP transceivers are not included.
Reference: RG-ES207GS-AC-OD
