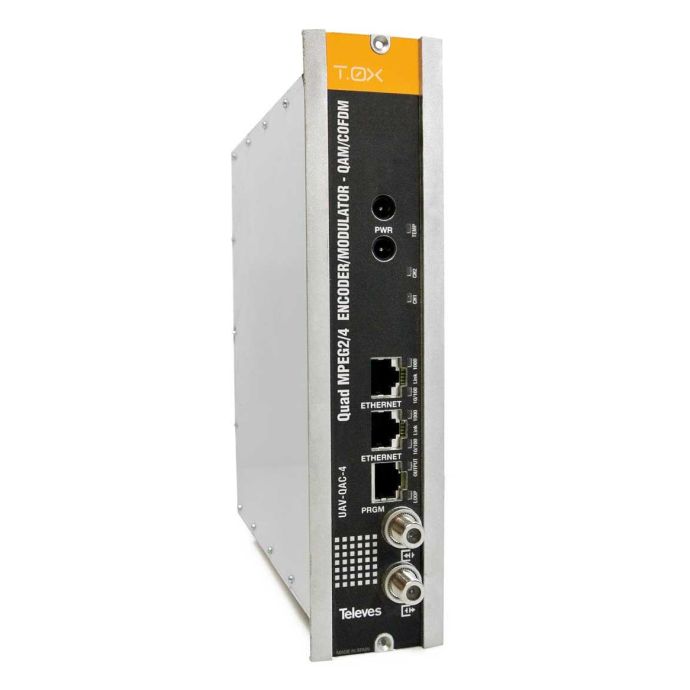

T0X Encoder 4e A / V CVBS - MPEG2 / 4 + COFDM / QAM QUAD of Televes

A modulator is a device that generates a Digital TV channel.

The content of the 563822 encoder consists of up to four services as it has four analog composite video inputs. You can encode the video in MPEG-2 format or in H.264 (HDTV).

They are configured using the PCT5.0 command or through the web server that incorporates each module. In addition, thanks to the high output power they deliver (115dBµV or 103dBµV with the output loop activated) it makes them independent of an output amplifier.

For its programming you can use this remote control.

What are the main features of the Televes 563822 modulator?

  • Its configuration is simple thanks to the web server.
  • It is controllable remotely via internet .
  • It has high output power without an extra amplifier.
  • Output is configurable QAM or COFDM .
  • Energy efficient for low power consumption .
  • Very good output quality ( MER> 40dB ) .
  • It supports a multitude of formats , resolutions and sizes of televisions.
  • You have the ability to edit all parameters modulation and coding of the signal.
  • It has multiple types of input signals : HDMI , CVBS , YPbPr , audio SPDIF ( ref.563832 ) , etc.
  • It incorporates HDCP ( high-bandwidth digital content protection ) function which can be desactivated by the property with permission of the content provider.

What technical specifications does the Televes 563822 modulator have?

References 563822 563832
INPUTS
Video 4 sets - 1x RCA for Video (CVBS) 2 sets - 3x RCA for Video (Y, Pb, Pr)
2 sets - 1x RCA for CVBS Video
Audio 4 sets - 2x RCA for Analog Audio (L, R) 2 sets - 2x RCA for Analog Audio (L, R)
2 sets - 1x RCA for Digital Audio
2 sets - 1x Toslink for Digital Audio (Optical)
Video + Audio - 2 sets - 1x HDMI
VIDEO ENCODER
Output Format MPEG-2 / H264
Resolution 480i & 576i
Supports auto-scan for input resolution
480i, 480p, 576i, 576p, 720p, 1080i & 1080p
Supports auto-scan for input resolution
Aspect Ratio 4:3, 16:9 and pass through
GOP 10, 12, 15, 16, 18, 20, 24 or 30
AUDIO ENCODER
Output format MPEG1 Layer 2 Dolby Digital AC-3 (only digital passthrough) or
MPEG1 Layer2 (analog input or HDMI uncompressed PCM audio)
Sampling rate kHz 48
OUTPUT Frequency Range MHz 46...862
Max output level

dBμV/

dBmV

+115 (+103 with loop-through) /

+ 55 (+ 43 with loop-through)

MER dB >40
Spurious dBc -60
QAM
Modulation format 16, 32, 64, 128, 256
BaudRate Mbaud 6,9
Roll-off % 15
Code Reed Solomon
Spectrum Mode Normal / Inverted
Frequency Step kHz 250
COFDM
Modulation format QPSK, 16QAM, 64QAM
Guard Interval μS 1/4, 1/8, 1/16, 1/32
FEC 1/2, 2/3, 3/4, 5/6, 7/8
Bandwidth MHz 6, 7, 8
Cell_id Editable
Frequency Step KHz 125 / 166
PSI
Transport Stream ID Editable
Original Network ID Editable
Network ID Editable
LCN Editable
NIT Manual / Automatic
SDT Manual / Automatic
Type LCN Generic / UK / NorDig V1 / NorDig V2
Network Name Editable
Service PID Editable
Service Name Editable
Service ID Editable
GENERAL
Power supply Vdc 24
Power disipation W < 16
Protection index IP 20
More Information
EAN8424450174883
SystemCATV
SERIET.0X
ColorBlack
TypeModulator
Input signalCVBS
Output signalCOFDM, QAM
Model / FamilyT0X
# Inputs4
Outputs2
Output mux4
Common interfaceNo
Product BrandTeleves
