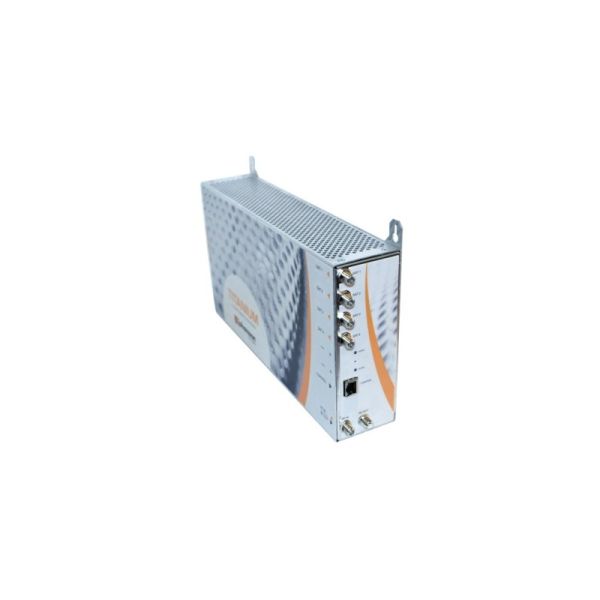

TITANIUM Compact Headend 8xDVB-S to 8xDVB-T/C with 4 CI Slots

SKU

JOH8703

Brands: Johansson

Availability: On request

Delivery: 1 to 7 days

€3,226.44 Tax included

TITANIUM Compact Headend 8xDVB-S to 8xDVB-T/C Johansson 8703

Octo transmodulator with 8 SAT tuners with 4 inputs to convert to 8 MUX output (DVB-T/C). It incorporates 4 Common Interface (CI) slots for CAM cards.

Compact TITANIUM 8X8 headend for small and medium collective multi-satellite distributions, with intuitive web user interface for quick and easy installation. Transmodulator to convert 8 DVB-S/S2 Satellite tuners to 8 MUX DVB-T/C terrestrial output.

Details

TITANIUM compact headend of 8 tuners - 4 inputs to 8 MUX output (DVB-T/C), with 4 CI slots

What are the main features of the Johansson 8703 Transmodulator?

Standalone frame with built-in power supply
4 inputs - 8 tuners (OCTO)
4 CI slots for CAM cards
8 output MUXs (DVB-T/C)
RF In & RF Out
Selectable reference tuner for each CAM
User friendly web interface
SID remapping
Local Channel Numbering (LCN)
Full matrix flexibility between input, DVB-S(2) tuners, CAM modules, DVB-T/C multiplexes
EPG support (EPG is only processed for forwarded services)
PID filtering of e.g. Audio channels
Possibility to block all private data PIDs to save bandwidth
Possibility to prioritize important TV channels
Watchdog feature to guarantee uptime
Easily upgradable firmware
European quality, it's a Johansson...

What technical specifications does the TITANIUM 8X8 Johasson 8703 Headend have?

Input: QPSK/8PSK (DVB-S/S2)
Inputs	-	4 satellite bands 1 x RF in
Tuners	-	8 tuners (8 transponders)
Frequency range	MHz	950 - 2150
Level	dBµV	44 to 84
Bandwidth	MHz	36
Modulation	-	DVB-S2: QPSK, 8PSK / DVB-S: QPSK
DC remote power at RF input	-	13 V/18 V/22 kHz
Integrated multiswitch	-	Yes, allows flexible routing of satellite proframs to multiplexes (QAM or QOFDM)
Configuration	-	Built-in webserver accessible via management port
Encoded programs	-	From all 8 tuners. Can be routed through 1 or 2 CAMs and can be decoded using multi-service CAMs
Max current per input to feed LNB	mA	350 per input
Output RF
Outputs	-	1 with 8 MUXs (DVB-T or DVB-C)
DVB-T output	Mbps	Up to 31.7 / MUX
DVB-C output	Mbps	Up to 51.3 / MUX
Output level	dBµV	69 - 84 (adjustable)
Output MER	dB	≥ 43
General
Power consumption	W	22 (excl. external LNBs)
Dimensions	cm	34.5 x 7 x 18.2
Operating temperature	°C	0 to +50

More Information

More Information
EAN	2087030000017
System	DTT & SAT
SERIE	F-connector
TV-SAT Distribution Equipment	Transmodulator
Entorno	Interior
TV-SAT Distribution Connection	F
Outputs	1
Input signal	FI
Current bypass	Yes
Product Brand	Johansson
