Surface-Mounted Rain Shield for 3-Module Comelit Ultra Entrance Panel

SKU
COMUT9193
Brands: Comelit
€116.83
Tax included
Availability: On request
1 to 7 days

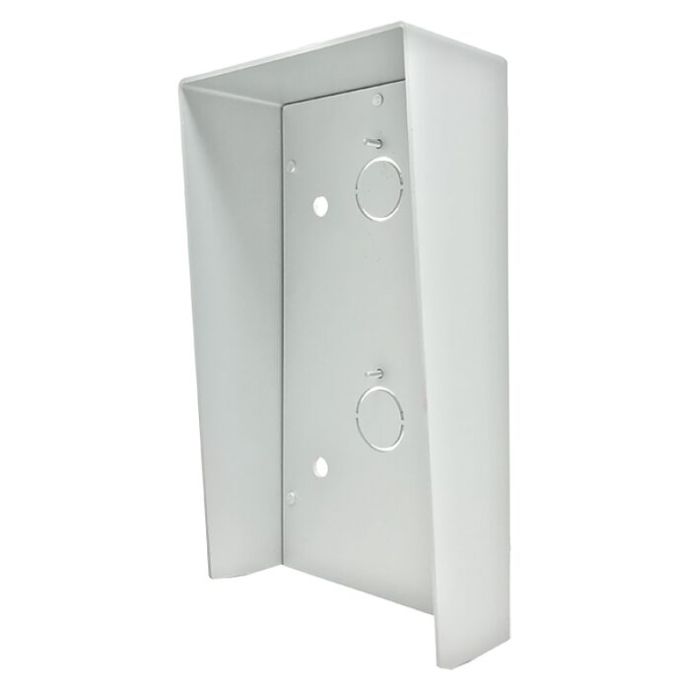

Comelit UT9193 Ultra 3-Module Surface-Mounted Rain Shield

The Comelit Ultra 3-Module Surface-Mounted Rain Shield is a practical accessory designed to improve the protection of outdoor entrance panels, especially in access points exposed to rain, moisture or water splashes.

Designed for 3-module Ultra entrance panels, this rain shield helps reduce direct water impact on the panel and camera area. In video door entry installations, this protection is especially useful for maintaining a clearer image during rainy days.

The UT9193 works with Comelit Simplebus 1, Simplebus 2 and ViP systems, according to the manufacturer’s technical datasheet. It is intended for new installations or surface-mounted expansion projects, not as an internal electronic spare part.

Made from grey anodized aluminium, it provides a robust and discreet solution for protecting Ultra entrance panels in residential buildings, homes and professional access points. It can be combined with other rain shields and trims or with elements from the Comelit IKALL Series.

Reference: COMUT9193

-
+

Extended information about Comelit Ultra 3-Module Surface-Mounted Rain Shield

Practical applications for the Comelit Ultra 3-Module Surface-Mounted Rain Shield

Example 1. Residential block:

An advanced modular video door entry system from Comelit’s Ultra range needs to be installed on the exterior wall of a residential block. Because the wall is made of solid concrete or stone, creating a deep recess for flush mounting is not feasible, so a surface-mounted installation is chosen using the wall protection box. As the unit is exposed to the weather without a protective overhang, the Comelit UT9193 rain shield is integrated.

Example 2. Outdoor access exposed to rain:

In a pedestrian entrance, gate area or professional access point where the outdoor panel is directly exposed to rain, the Comelit UT9193 rain shield helps protect the Ultra entrance panel from moisture and water impact. Its design reduces direct water drops on the camera lens, helping maintain a clearer image during rainy days.

Package contents of the Comelit Ultra 3-Module Surface-Mounted Rain Shield

  • 1 x Comelit UT9193 rain shield for 3-module Ultra entrance panel
  • Fixing accessories: not specified in the supplied technical datasheet; confirm with the manufacturer or received supply
  • Additional documentation: not specified in the supplied technical datasheet

Technical specifications Comelit Ultra 3-Module Surface-Mounted Rain Shield

Brand Comelit
Manufacturer reference UT9193
TDTprofesional SKU COMUT9193
Product type Surface-mounted / wall-mounted rain shield
Compatible range Ultra
Main use Protection of outdoor entrance panels against rain and moisture
Number of modules 3 modules
Compatible systems Simplebus 1, Simplebus 2 and ViP
Installation Wall mounting
Cover material Anodized aluminium
Colour Grey
Height 293 mm
Width 116 mm
Depth 57 mm
Weight 415 g
Recommended application Outdoor Ultra entrance panels
Item type Accessory for new installations or surface-mounted projects
More Information
EAN 8023903399905
Hight 0.060
Length 0.400
Width 0.120
