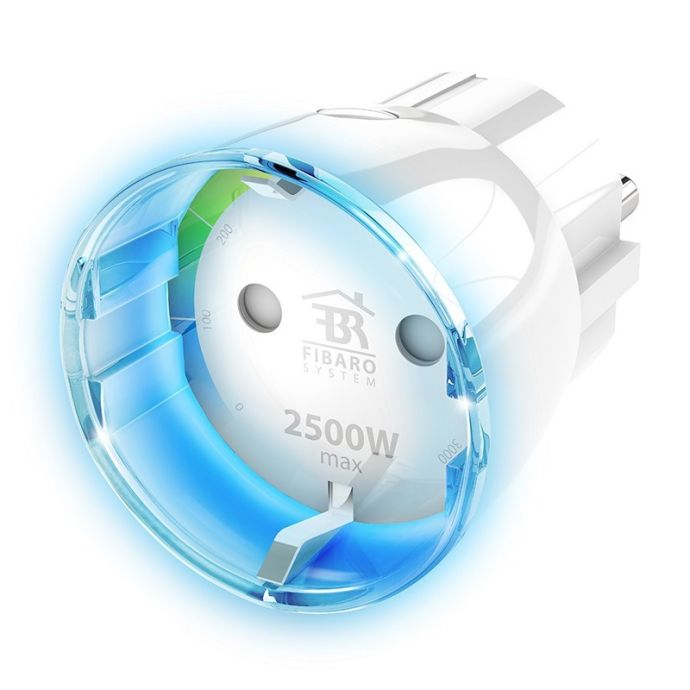

Fibaro Z-wave Wall Plug FGWPF-102

Technical Specifications of the Fibaro FGWPF-102 Wall Plug

The Fibaro plug can be operated using the service button located on its housing or by any Z-Wave compatible controller.

What technical characteristics does the FGWPF-102 plug have?

• Compatible with any Z-Wave controller.
• Compatible with any Z-Wave or Z-Wave + controller (firmware 3.2 or higher).
• Supports protected mode (Z-Wave network security mode) with AES-128 encryption (firmware 3.2 or higher).
• Advanced microprocessor control.
• Executive element - relay.
• Active power and energy measurement functionality.
• Compact and elegant housing.
• Easy installation - just plug it in.

What technical specifications does the FGWPF-102 plug have?

• Power supply: 230V AC, 50/60 Hz
• Rated load current: 11A
• Power consumption: up to 1.6W
• Output power (for resistive load): 2.5kW
• In accordance with EU standards: RED 2014/53 / EU
• RoHS 2011/65 / EU
• Operational temperature: 0 - 40 ° C
• For use with type E or F (Schuko) plugs: - CEE 7/16 - maximum load 2.5 A
• CEE 7/17 - maximum load 11A
• Dual type E / F plug
• Radio protocol: Z-Wave
• Z-Wave + (firmware 3.2 or higher)
• Radio frequency: 868.4 or 869.8 MHz UE;
• 869.0 MHz RU;
• Power of radio signal: up to -10 dBm (PIRE)
• Distance: up to 50 m outdoors
• up to 30 m inside
• up to 40 m indoors (firmware 3.2 or higher)
• (depending on the terrain and the structure of the building)
• Dimensions: (D x H): 43 x 65mm
