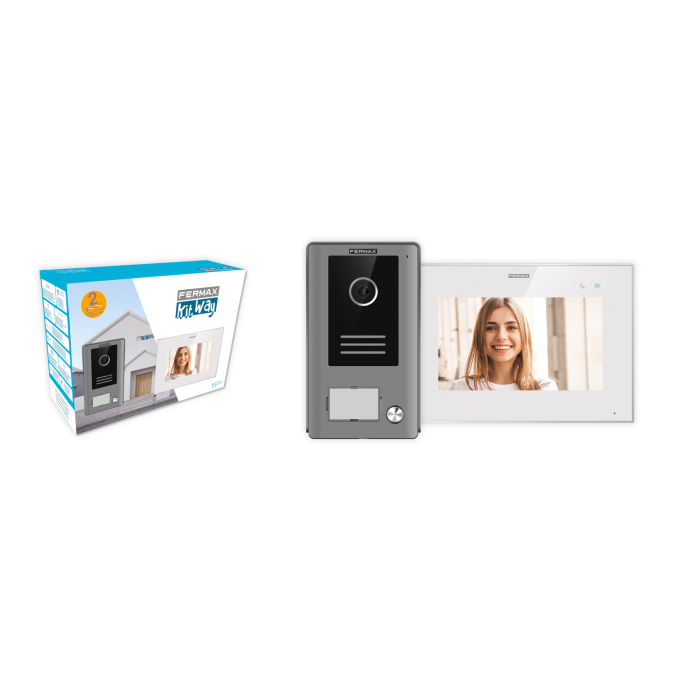

Way Video Panel Single-Family Kit with 7'' Way Hands-Free Monitor by Fermax

PLATE. Ref 1527

Surface mount. Rain visor included, required for mounting.
Material Finish: Zamak and Aluminum
Connections (terminals S+, S-) for low-consumption 12 V DC electric lock releases. Maximum electric lock release consumption: 250 mA during maintenance. Timer (1-8 s).
Potential-free relay for activating the second door (garage): Configurable as Normally Open/Closed (COM, NO/NC). Time-delayed (1-8 s).
Connection for entrance hall exit button (PL, S+ terminals): Activates the electric door opener (S+, S-) while pressed.
Card holder (with front pull-out) and call button, both with LED backlighting. Backlight activation via light sensor.
Speaker volume adjustment potentiometer.
Connections (GND, CCTV) for additional analog CCTV camera.

MONITOR. Ref 1525

Surface mount (wall connector included).
7” touchscreen. Intuitive user interface supports swipe operations.
LEDs: White: Monitor activated; Purple: Do not disturb activated; Green: Photos/Videos pending viewing
Talk mode: Hands-free
Doorbell connections: GND, BELL terminals
Date and time: Time: 24-hour format; Date: configurable format. Manually programmable from the monitor.
Do Not Disturb Mode: Immediate and/or timed activation/deactivation for a specific time slot during the day.
Photo Capture: Automatic (Off by default) and manual. 100 photos without a Micro SD card, 1,000 with a Micro SD card (not included). Photos on the monitor can be copied to the Micro SD card.
Video Capture: Automatic (Off by default) and manual. 8-32 GB Micro SD card only, not included. Up to 128 15-second videos.
Deleting photos and videos: One by one, select multiple, select all. When the storage limit is reached, the oldest photos will be deleted. Option to format the micro SD card. Deletion after 30 days is enabled by default.
Call history (with date and time): Photos and videos are stored with date and time.
Auto-on (street view from monitor): 2 plates and 2 cameras. Selectable.
Pedestrian door opening (electric door opener): Activates 12 V DC output (S+, S- terminals on board). Programmable opening time (1-8 s).
Garage door opener (electromagnetic door opener): Activates relay (COM, NO/NC terminals). Programmable opening time (1-8 s).
Image settings: Brightness, Contrast and Color.
Call and talk volume adjustment: 0-8 levels
Internal intercom function in the home: Option to call one person or all. Maximum of 3 monitors per home (1 main and 2 additional)
Menu languages: 16
Call melodies: 16. Selectable for: panel call, doorbell, intercom call.
CCTV Camera Compatibility: One analog aerial camera per board.
Connections:Bus (B, B);
Doorbell (GND, BELL);
Micro SD card slot (8-32 GB);
Impedance matching switch for the video signal (dipswitch 1 ON at the end of the line).
House address setting switch (dipswitch 2: OFF=House 1; ON=House 2)
