Fibaro Smart Z-Wave Smart Device Controller

SKU

FIBFGS214

Brands: Fibaro

Availability: On request

Delivery: 1 to 7 days

€62.81 Tax included

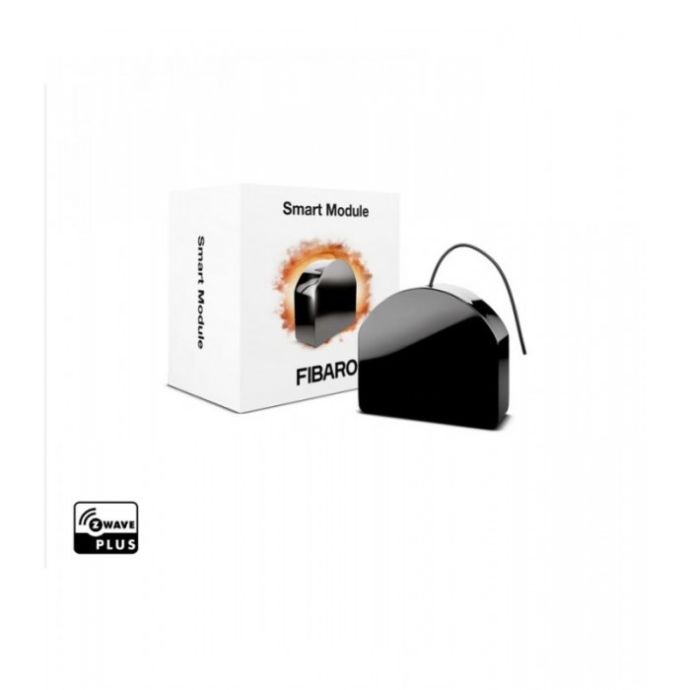

Z-Wave Smart Module Fibaro FGS-214

Fibaro smart module to activate and deactivate electrical devices. Thanks to its compact size, it can be installed in junction boxes or flush-mounted boxes. The module is controlled by the Z-Wave wireless network or by a switch.

It is a potential-free relay with a timer function, it can be used to control any type of load (230V AC - 5V, 12V, 24V DC): such as a boiler, a motorized door, a garage door, a light, etc...

Details

1-contact no-load smart module to control by Z-Wave or switch

What are the main features of the Fibaro Smart Module FGS-214?

Control a light / device remotely Installs behind an existing switch (bi-stable or mono-stable)
ON / OFF function Potential-free relay (Gate, boiler, garage door control, etc.)
Integrates the Z-Wave 500 series chip 250% faster communication compared to standard Z-Wave devices Integrated scene activation mechanism (via S2)
Safety communication and notification classes Configuration menu with a diode
Supports secure mode (Z-Wave Network Security) encrypted with AES-128 encoding Integrated
Z-Wave network coverage tester OTA software update (depends on the controller)
Larger terminal blocks for easier wiring
Rounded shape to meet the highest standards Small, discreet and aesthetic
Ease of use and installation

What technical specifications does the Fibaro Smart Module FGS-214 have?

Type of module: Z-Wave receiver
Power supply: 100 - 240V ~, 50 / 60Hz or 24 - 30 Vdc
Wiring: 3 wires, neutral required (230V)
Max power: 6.5A (resistive load) - 2A (inductive load) - 1A (capacitive load)
Frequency: 868.42 Mhz
Transmission distance: 50m free field, 40m indoors (depends on the structure of the building)
Signal strength: 1mW Dimensions: 42.5mm x 38.25mm x 20.3mm (L x W x H)
Operating temperature: 0-35 ° C
Standards: CE, ROHS, 2011/65 / EU, 2014/53 / EU, 2015/863, ZWAVE PLUS
