1-Line Milo Panel MEET by Fermax

SKU

FER9533

Brands: Fermax

Availability: In stock

Delivery: 24/48 Hours

€552.38 Tax included

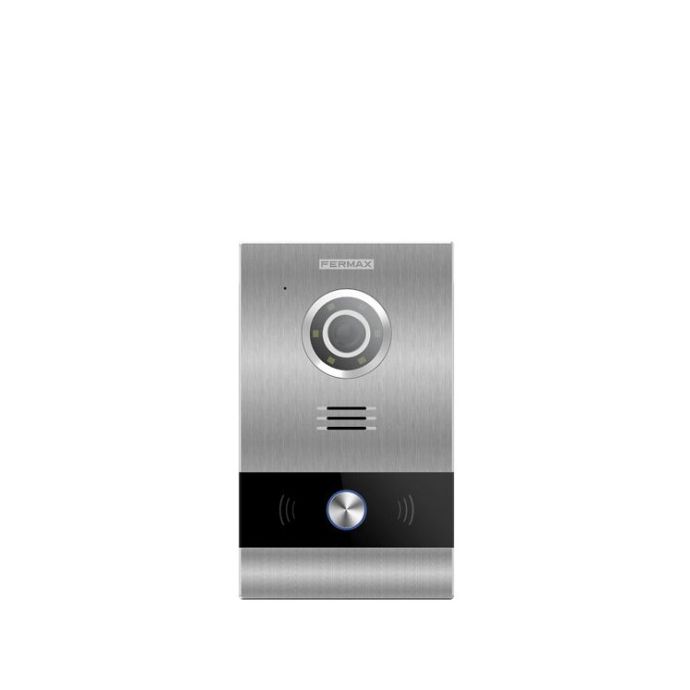

Milo Video Panel 1 line MEET 9533 by Fermax

Exterior panel with HD color Milo camera with MEET 100% IP system by Fermax for a single family home. The MEET technology guarantees high quality audio and video as well as many functionalities for its video door entry system.

This Milo 1L plate is made of aluminum and tempered glass, has low consumption and an extended operating range.

MEET allows you to add access control functions, CCTV cameras and alarms.

Details

Exterior plate Milo Video MEET of 1 line by Fermax with camera in high definition, call to associate apartment and to concierge.

What are the main characteristics of Fermax's Milo 9533 plate?

• Aluminum Profile
• High Resistance Tempered Glass
• High Definition Colour Camera
• Low Power Consumption
• Wide Range Working Environment
• Linux Modular Structure
• Access Control Integrated (Only for Panel with Reader)
• Available In 10 Languages
• Remote Firmware Update

What technical specifications does the Milo Video 9533 plate from Fermax have?

System:
• CPU: ARM Cortex-A7 1.2GHz
• FLASH: 128M
• SDRAM: 64M

Audio Features:
• G.711 protocol
• Audio level 17.7 dB

Camera:
• 1/3” CMOS Color
• 90o visual angle: Vertical 72º, Horizontal 54º
• 1.3 Mega Pixels
• Minimum illumination 0.5 LUX
• AWB

LED:
• White LED
• LM 60 mA Min. 24, Typ. 26
• View Angle 2θ1/2: 120

Power Consumption:
• On standby: 125mA
• Working: 250mA

Working voltage:
• 12 VDC

Connectivity:
• Ethernet RJ-45 Connector
• Exit button and door sensor connection
• NO, C, NC: Door lock release connection
• Built in web server for configuration and remote management

Working Environment:
• Temperature: -10 oC – 70 oC
• Humidity: 20 – 80% (Non-condensing)
• IP 54
